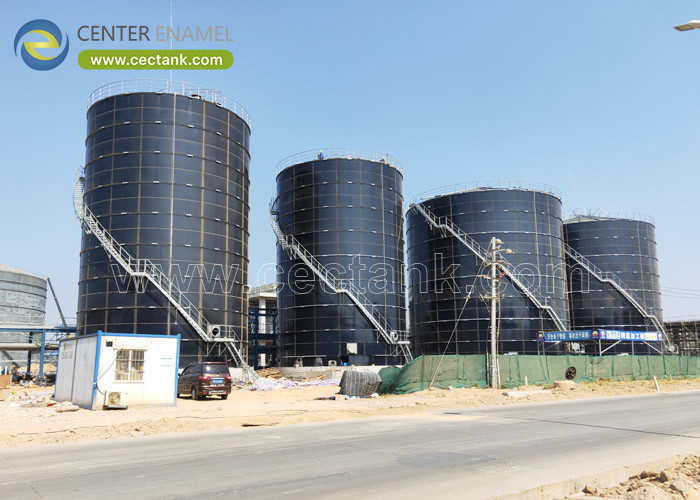

Bolted Steel Tank as EGSB Reactor for Biogas Production Project: Advanced High-Rate Bioenergy Engineering

A bolted steel tank configured as an Expanded Granular Sludge Bed (EGSB) reactor represents the cutting edge of high-rate anaerobic digestion infrastructure, engineered to convert high-strength industrial wastewater into clean, renewable biogas with exceptional efficiency. In modern bioenergy projects—ranging from large-scale food processing and slaughterhouse effluent treatment to chemical and paper wastewater reclamation—traditional low-rate digesters often fall short due to massive footprint requirements and sluggish processing times. By integrating advanced high-rate biological granular sludge systems with high-strength, modular Glass-Fused-to-Steel (GFS) bolted tank architecture, Center Enamel delivers robust, high-performance EGSB reactor tanks designed to maximize methane yields while ensuring multi-decade structural durability.

Operating an Expanded Granular Sludge Bed reactor requires overcoming severe hydrodynamic, chemical, and structural hurdles:

1. Extreme Upward Liquid Velocities and Hydraulic Shear: EGSB reactors operate with high superficial liquid velocities and intense internal recirculation to keep granular sludge expanded in a fluidized state. This places continuous dynamic stress and hydraulic shear on reactor walls.

2. Volatile Fatty Acid (VFA) and Sulfide Corrosion: High-strength organic wastewaters rapidly break down into volatile fatty acids and hydrogen sulfide (H₂S) gas. In the reactor headspace and liquid interface, these compounds form aggressive acidic environments that pit and destroy conventional carbon steel or concrete structures.

3. Strict Structural Integrity Under Hydrostatic Pressure: Because EGSB reactors are built taller than traditional UASB (Upflow Anaerobic Sludge Blanket) tanks to achieve greater hydraulic turbulence, the lower shell plates experience intense hydrostatic pressure and hoop tension.

Center Enamel’s EGSB reactor tanks are constructed from high-tensile structural steel panels that have inorganic glass enamel thermally fused to both surfaces at temperatures exceeding 800°C. This creates an inseparable molecular bond that delivers the structural strength of steel paired with a chemically inert, non-porous glass shield completely immune to industrial acids and H₂S corrosion.

Engineered via Finite Element Analysis (FEA) in strict compliance with international standards like AWWA D103 and ISO 28765, our bolted steel panels easily handle the rigorous hoop stress and vertical load distributions demanded by tall EGSB reactor configurations without wall fatigue or deformation.

Unlike monolithic concrete basins that require months of weather-dependent formwork and curing, Center Enamel’s modular bolted tanks arrive pre-engineered for rapid on-site assembly using specialized structural bolting and elastic mastic sealants, guaranteeing absolute gas-tight containment for high-purity biogas recovery.

To ensure complete structural safety and satisfy elite municipal and industrial regulatory bodies worldwide, Center Enamel manufactures all EGSB reactor and biogas containment tanks in strict compliance with premier international benchmarks:

• AWWA D103: The definitive global standard for bolted steel tank structural calculations and design.

• ISO 28765: Dedicated specifically to bolted steel tanks for liquid and anaerobic digestion storage.

• ISO 9001: Guaranteeing stringent factory quality management and precision manufacturing workflows.

A: An Expanded Granular Sludge Bed (EGSB) reactor is an advanced high-rate anaerobic digestion system that uses specialized granular sludge beds and high upward liquid velocities to rapidly break down complex organic wastewater into biogas.

A: Bolted GFS tanks offer exceptional tensile strength to withstand high hydrostatic pressures in tall reactors, combined with an inert glass surface that completely resists corrosive wastewater acids and hydrogen sulfide gas.

A: Because GFS reactor interiors are ultra-smooth and chemically inert, they prevent biological fouling and scaling, allowing the EGSB system to maintain stable, high-rate microbial granulation and high-volume biogas production.

A: Yes. Center Enamel’s modular bolted panel architecture provides the flexibility to increase tank height or diameter, allowing facility operators to scale up wastewater treatment and biogas output as industrial demands grow.

At Center Enamel, we combine advanced manufacturing capabilities with deep environmental engineering expertise to deliver robust, high-performance, and cost-effective anaerobic reactor solutions for renewable energy projects worldwide.

Are you planning an industrial wastewater treatment or EGSB biogas production project? Contact our engineering team today for a technical consultation, capacity sizing, and a customized proposal.
