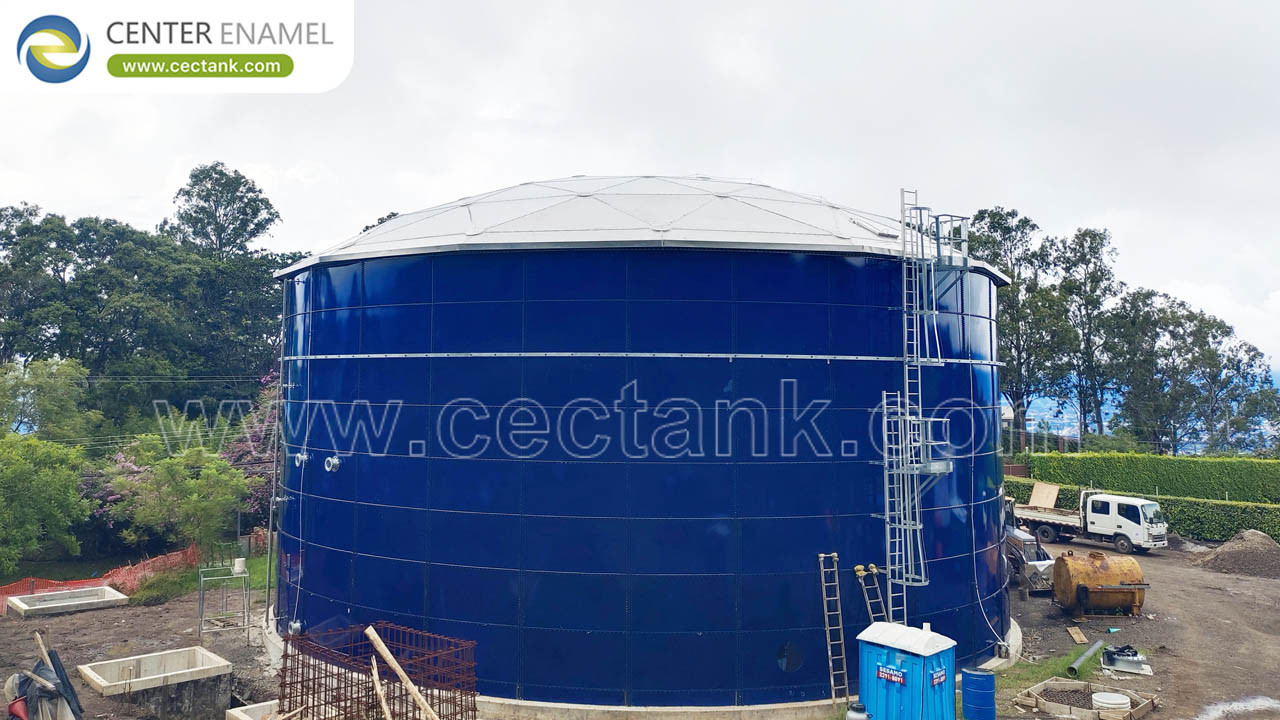

60,000 m³ Bolted Steel Tank for Leachate Storage with High Corrosion Resistance

60,000 m³ Bolted Steel Tank for Leachate Storage with High Corrosion Resistance

A 60,000 m³ bolted steel tank for leachate storage represents a monumental achievement in mega-scale environmental engineering, designed to safely contain massive volumes of highly toxic, corrosive landfill wastewater. Landfill leachate—generated when precipitation percolates through decomposing waste masses—possesses a notoriously aggressive chemistry laden with organic compounds, heavy metals, high salt concentrations, and volatile fatty acids. When managing colossal holding volumes of 60,000 cubic meters, conventional concrete basins or welded steel structures frequently suffer from catastrophic cracking, severe chemical pitting, or high maintenance burdens. By combining cutting-edge structural design with proprietary Glass-Fused-to-Steel (GFS) manufacturing technology, Center Enamel delivers ultra-large-scale containment vessels engineered for absolute corrosion resistance, structural longevity, and zero environmental leakage.

The Extreme Engineering Challenges of Mega-Scale Leachate Containment

Operating a massive 60,000 m³ leachate storage facility involves overcoming intense physical and chemical pressures:

1. Aggressive and Variable Chemical Composition: Leachate contains complex combinations of acids, alkalis, chlorides, and sulfides that rapidly destroy standard protective coatings and corrode unprotected carbon steel walls.

2. Massive Hydrostatic Hoop Stress: A tank holding 60,000 m³ of liquid exerts immense lateral pressure against its lower shell plates, demanding rigorous Finite Element Analysis (FEA) and high-tensile steel engineering to prevent wall buckling or structural fatigue.

3. Strict Environmental Protection Mandates: Regulatory bodies worldwide enforce a zero-tolerance policy regarding leachate seepage to protect surrounding soil and groundwater tables, making fail-safe sealing and structural impermeability non-negotiable.

Engineering Advantages of Center Enamel’s 60,000 m³ GFS Tanks

1. Superior High-Temperature Glass-Fused-to-Steel Protection

Center Enamel’s mega-scale storage tanks are constructed from high-tensile structural steel plates fused with a specially formulated inorganic glass enamel at temperatures exceeding 800°C. This creates an inseparable molecular bond that marries the structural strength of steel with an inert, non-porous glass shield completely immune to acids, alkalis, and heavy metals.

2. Precision Bolted Modularity at Scale

Erecting a 60,000 m³ vessel requires meticulous modular engineering. Center Enamel’s pre-fabricated bolted panel architecture allows rapid, safe on-site installation using specialized structural bolting and high-grade elastomeric sealants, eliminating the hazards and delays associated with massive field-welded construction.

3. Integrated Leachate Management and Safety Features

To support continuous waste management operations, these mega-tanks can be outfitted with specialized liquid level monitoring systems, gas-venting headers, robust internal mixing provisions, and heavy-duty aluminum geodesic dome roofs to prevent rainwater infiltration and control vapor emissions.

Comparative Matrix: Mega-Scale Leachate Storage Technologies

Global Compliance and Engineering Standards

To ensure complete structural reliability and satisfy stringent international environmental regulations, Center Enamel manufactures all leachate storage systems in strict compliance with premier global benchmarks:

• AWWA D103-09: The global standard for bolted steel tank structural design and calculations.

• ISO 28765: Dedicated specifically to bolted steel tanks for liquid and municipal/industrial effluent storage.

• NSF/ANSI 61 & ISO 9001: Guaranteeing strict material safety and rigorous factory quality management workflows.

Frequently Asked Questions (FAQ)

Q: Why is a 60,000 m³ bolted steel tank ideal for landfill leachate storage?

A: A 60,000 m³ bolted steel tank provides the massive holding capacity required by large municipal landfills, while its modular GFS construction offers superior corrosion resistance, rapid installation times, and long-term structural integrity against toxic leachate.

Q: How does Glass-Fused-to-Steel (GFS) technology protect against leachate corrosion?

A: The high-temperature thermal fusion of inorganic glass enamel to structural steel creates an inert, non-porous barrier that prevents chemical attack from acids, heavy metals, chlorides, and organic compounds present in leachate.

Q: Can a 60,000 m³ bolted steel tank withstand extreme wind and seismic loads?

A: Yes. Center Enamel engineers all mega-capacity tanks using advanced structural modeling (FEA) in strict compliance with international standards like AWWA D103 and ISO 28765 to ensure high resilience against wind, seismic activity, and hydrostatic pressure.

Q: How long does it take to erect a 60,000 m³ bolted steel leachate tank?

A: Because all steel panels are pre-engineered and precision-fabricated in Center Enamel's state-of-the-art manufacturing facility, on-site installation of a bolted tank is significantly faster than pouring monolithic concrete structures, reducing overall project timelines.

Partnering for Safe and Sustainable Waste Management Infrastructure

At Center Enamel, we combine advanced manufacturing capabilities with deep environmental engineering expertise to deliver robust, high-performance, and high-corrosion-resistance liquid storage solutions for waste management projects worldwide.

Are you planning a large-scale landfill leachate treatment or storage project? Contact our engineering team today for a technical consultation, capacity sizing, and a customized proposal.
