Highly Corrosion-Resistant Leachate Storage Tanks: The Engineering Gold Standard

For landfill operators and industrial facility managers, leachate is not merely "wastewater"—it is a complex, unpredictable "chemical cocktail." As rainwater percolates through decomposing waste, it dissolves heavy metals, ammonia, volatile organic compounds, and varied salts, creating a liquid that is often highly acidic or alkaline.

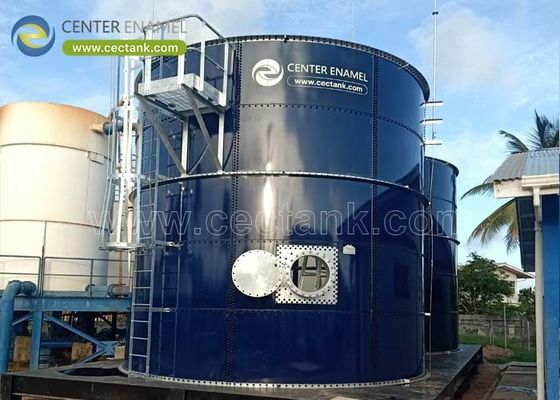

Storing this aggressive byproduct requires infrastructure that goes beyond standard containment. Glass-Fused-to-Steel (GFS) storage tanks have emerged as the industry gold standard for leachate management, offering an engineered solution that combines the structural strength of steel with the chemical inertness of glass.

Leachate is notorious for its ability to degrade storage assets rapidly. Traditional materials often fall short for specific, well-documented reasons:

• Poured Concrete: While strong, concrete is inherently porous. Leachate can penetrate the surface, causing "concrete cancer" (rebar corrosion) and structural weakening. It almost always requires expensive, high-maintenance chemical liners that are prone to tearing and delamination.

• Field-Welded Carbon Steel: These tanks are highly susceptible to corrosion, especially in the "vapor zone" where hydrogen sulfide (H₂S) and moisture concentrate. They require constant sandblasting, repainting, and anode replacements to survive.

• HDPE/Plastic: While chemically resistant, large-scale plastic tanks are often limited in size, lack structural rigidity, and are susceptible to UV degradation and physical impact damage.

Glass-Fused-to-Steel (GFS) technology involves fusing silicate glass to steel panels at extreme temperatures (820°C–930°C). This process creates a molecular, inorganic bond that is chemically and physically impervious to the aggressive nature of leachate.

The vitreous enamel (glass) layer is completely inert. It does not react with the acids, alkalis, or heavy metals present in landfill leachate. This effectively eliminates the risk of tank wall degradation, ensuring the containment barrier remains intact for decades.

Unlike field-painted tanks where coating quality depends on site weather conditions (humidity, dust, temperature), GFS panels are manufactured in an ISO-certified, climate-controlled factory. Each panel undergoes high-voltage "holiday testing" to ensure zero coating defects before it is shipped to your site.

Leachate volumes can fluctuate wildly with seasonal rainfall. GFS tanks are modular and bolted, allowing for a top-down hydraulic jacking assembly. This method is safer, faster, and less dependent on weather than traditional concrete pouring or large-scale welding.

Regulatory bodies (such as the EPA or local environmental agencies) are increasingly stringent regarding leachate containment. GFS tanks offer a "failsafe" approach to compliance:

• Non-Porous Surface: Prevents the absorption of contaminants, ensuring that even after years of service, the tank does not hold residues that could complicate future decommissioning or repurposing.

• Seismic and Wind Resistance: Engineered to meet rigorous international codes like AWWA D103-19, ensuring the tank retains its structural integrity during extreme environmental events.

• Secondary Containment: GFS tanks are easily integrated into secondary containment (bunding) systems, providing a redundant safety layer for high-risk industrial sites.

Q: Can GFS tanks withstand the high temperature fluctuations in leachate?

A: Yes. The glass-steel composite is stable across a wide temperature range, and the structural steel frame is designed to accommodate thermal expansion without compromising the glass coating.

Q: What if the tank is damaged on-site?

A: Because the panels are modular, if a specific section is compromised, it can be easily repaired with NSF-compliant patch kits or, in extreme cases, the individual panel can be replaced without dismantling the entire tank.

Q: How do you handle the potential for H₂S gas buildup?

A: Leachate storage tanks are often equipped with specialized dome roofs and venting systems to manage gas buildup. GFS technology is highly resistant to H₂S and moisture-induced corrosion in the tank headspace.

Managing leachate effectively is a critical investment in your facility's environmental compliance and operational uptime. By choosing a high-performance, corrosion-resistant storage system, you eliminate the lifecycle costs associated with recurring repairs and mitigate the catastrophic risks of containment failure.

Center Enamel provides the engineering expertise to analyze your specific leachate chemical profile and recommend the optimal GFS configuration.
