Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20161227006 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 0-60 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||

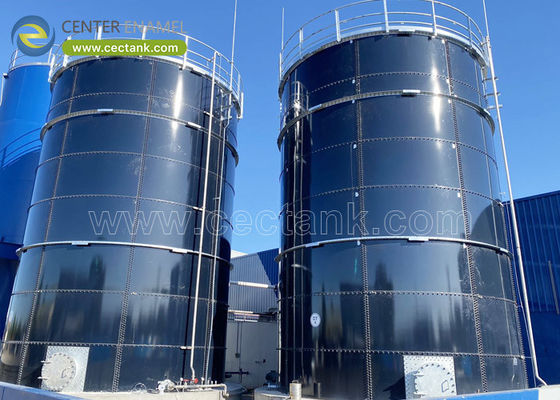

Recently, the domestic waste incineration project has made new progress. Shijiazhuang Zhengzhong Technology Co., Ltd. has completed the construction of the Poyang County domestic waste incineration power generation project and provided waste leachate storage tanks for the advanced treatment of the leachate of the waste incineration power plant to ensure that the sewage discharged from the domestic waste incineration power generation in Poyang County meets the standard.
Bolted Steel Anaerobic Digester Tank Specification
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
The leachate produced during the incineration of domestic waste has a complex composition and high heavy metal content, which is one of the most important secondary pollutants. If it is discharged directly, it will seriously damage the urban ecological environment. Center Enamel has formulated a set of landfill leachate storage solutions suitable for local conditions based on the site survey of power plants and the characteristics of sewage water quality. This project adopts the most advanced GFS tanks for waste leachate treatment storage tanks and formulates a reasonable construction process to effectively improve the construction efficiency of the project. At the same time, we will do a good job of comprehensive project construction quality management and implement strict supervision on the construction site. Taking full advantage of Genzon Technology's rich construction experience and strict construction specifications, improving quality and efficiency to complete the construction of domestic waste treatment projects, it has been highly recognized by customers.
Center Enamel is not only the first manufacturer in China which produces Glass-Fused-to-Steel tanks but also the most experienced professional bolted tanks manufacturer in Asia. The engineering & design, product testing, and quality system of Center Enamel Glass-Fused-to-Steel tanks is in strict accordance with AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA, and other international standards. Center Enamel Glass-Fused-to-Steel tanks are wildly used in drinking / potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture and other applications. Until 2021, Center Enamel bolted tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, Brazil and South Africa ect. Our superior tank quality and prompt service gain us worldwide recognition.
About Center Enamel Center Enamel Co., Ltd
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 65 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
