Acid / Alkali Resistance Waste Water Storage Tanks Glass Fused To Steel Tank
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20170621005 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20170621005 |
| Usage: | Waste Water Treatment , Sewage Treatment, Effluent Treatment, Ect | Size Of Panel: | 2.4M * 1.2M |
| Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Chemical Resistance: | Excellent |
| Tank Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
| High Light: | water treatment tank,sewage treatment tank |
||
Product Description
Acid / Alkali Resistance Glass-Fused-to-Steel Tank for Waste Water / Sludge Treatment designed in accordance with AWWA D103 – 09
Center Enamel Co., ltd is a manufacture dedicated in enamel products since 1989, product range includesenamel/GFS tanks and enamel cookware, the enamel/GFStanks are widely applied in bio-energy, wastewatertreatment, potable water storage and dry bulk storage etc. Our company own the most advanced automaticproduction line in China, tank design strictly conform to AWWAD103-09, OSHA and EN28765, and already passedISO9001 quality system certification. We can customize various products, according to customer’s different operating requirements.
The enamel panels manufactured by Center Enamel consist of two kinds of materials. One is enamel frit, the other is raw steel. They are fused together to constitute the Glass-Fused-to-Steel panel. GFS panel has two coatings on each side. Twice heat treatments are processed on the enamel panel to achieve best cohesion blending of the strength and flexibility of steel combined with the corrosion resistance of glass.
Here is the Coating Properties:
| Coating Thickness: | 0.25 ~ 0.40 mm |
| Double Coating: | 2 coatings for each side |
| Adhesive Force: | 3,450 N/cm2 |
| Coating Elasticity: | 500 KN/mm |
| Hardness: | 6.0 (Moh’s Hardness) |
| Service Life: | More than 30 years |
With the stable and excellent performance of the enamel panels, our glass-fused-to-steel tank is used for so many environmental protection fields such as waste water treatment, waste organic sludge treatment and irrigation water and leachate storage. As the enamel tank by Center Enamel has the great performance on corrosion resistance and acid / alkali resistance, it is the best choice to be used for waste water treatment. As we know, the waste water/sludge has so much corrosive substance. The enamel panel is inert for chemical reaction, so it is good for the storage of waste water or liquid. What's more, it is so smooth on surface, so it is easy to clean. Waste stuff sometimes is very difficult to clean. Therefore, a tank with smooth and glossy surface is highly required.

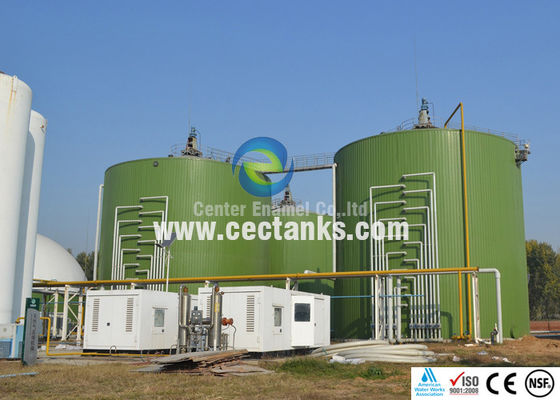

Here are the demonstrations of Glass-Fused-to-Steel tank applied in waste water treatment:
Water Storage Tank – Bolted Type
Tank 01: Φ 7.62 * 8.5 M
Tank 02: Φ 4.59 * 3.6 M
Water Treatment Plant
3 sets of wastewater tank Ø 6.11*7.2M
Roof Type: Glass-reinforced Polyester Roof
