Wastewater Treatment Waste Water Storage Tanks With Beautiful Appearance
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161124008 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161124008 |
| Adhesion: | 3,450N/cm | Service Life: | ≥30 Years |
| Hardness: | 6.0Mohs | Permeability: | Gas / Liquid Impermeable |
| Elastic: | Same As Steel Sheet ,around 500KN /mm | Tank Material: | Glass Fused To Steel |
| High Light: | water treatment tank,sewage treatment tank |
||
Product Description

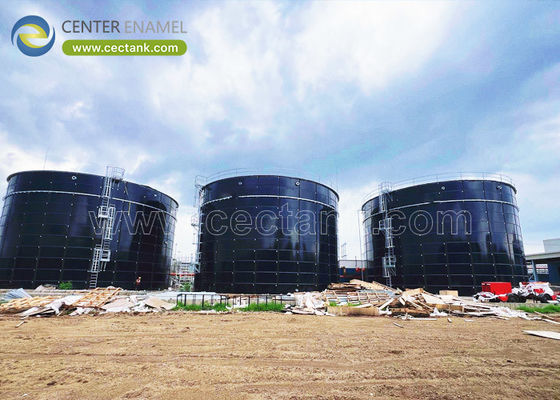

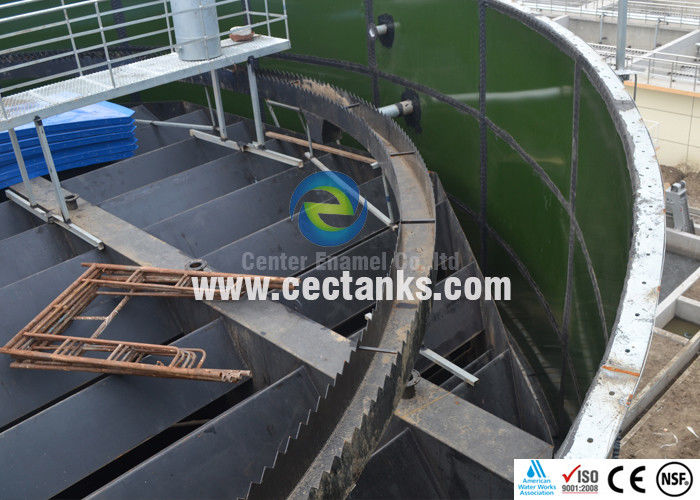

Wastewater Treatment Storage Tanks With Beautiful Appearance, Installation Not Subject To Weather Condition
Brief introduction
Glass fused to steel tank is a tank with excellent corrosion resistance, easy construction, service life is more than 30 years, which is different with the traditional tanks like concrete tank. For concrete tank the construction time is very long and maintenance cost is very high, once install the volume can’t be change.
We produce the glass fused to steel tank with the ART 310 enamel special steel sheet, and it’s surface fused with enamel frit. Enamel frit is the material similar with the glass, so the acid and alkali proof is very good. Fused these two material into the high temperature in the high temperature, the result is made these two material into a single composite material.
Ti-rich Special Steel ART310 Advantage:
To improve the steel quality performance after enameling, we developed special steel ART310 with Angang Steel Group in 2005.
1. Increase the adhesive power between steel and enamel coating.
2. Significantly solve fish scaling problem.
3. Improve the steel yield strength after firing.
Comparation between different tanks
| Item | Concrete Tank | Carbon steel tank | Enamel tank (Glass-fused-to-Steel tanks) |
LIPP tank |
| Beautiful degree | Low | Low | High | High |
| Temperature adaption | A stress | Adapt to low temperature | Adapt to low temperature | Adapt to low temperature |
| Shape | Any shape | Round shape | Round shape | Round shape |
| Ground Or underground | Both | Ground | Both | Ground |
| Corrosion resistance | Normal | No resistance to corrosion | Good | Not |
| Abrasion resistance | Good | Bad | Good | Bad |
| Easy to clean | Bad | Bad | Good | Normal |
| Easy to repaire | Normal | Good | Good | Bad |
| Weight (T) | heavy | Little heavy | light | Little light |
| Tank cost | middle | high | low | low |
| Tank temperature protect | no | need | need | need |
| Anti-corrosive Treatment | no | need | no | need |
| Annual anticorrosive cost | no | High cost | no | High cost |
| Corrosion resistance | normal | no | superior | normal |
| Abrasion resistance | good | bad | good | bad |
| Service life | 30 | 10 | 30 | 25 |
To assure the quality , a very strict quality control system has been executed with:
1. 50 staffs in our quality control department
2. The QC control system is in accordance with the requirement of ISO9001.
3. 4 kinds of quality tests have been carried out from the beginning of produce to delivery
| Raw materials testing in the factory | Recipe finalized small samples test | Middle stage products test | Destructive testing |
|
ingredient analysis, impurities test; |
enamel fluidity test, chromatic difference analysis, enamel burning experiment , acid and alkali resistance testing, glossy, adhesion etc |
amplification experiment simulated environment |
detection , impact test, sparks test, sliced electric microscope analysis .
|
