| Coating: | Enamel | Steel Grade: | ART 310 |
|---|---|---|---|
| Steel Plates Thickness: | 3mm To 12mm , Depends On The Tank Structure | Roof: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
| Durability: | More Than 30 Years | Holiday Test: | Over 1500v |
| High Light: | water treatment tank,sewage treatment tank |
||

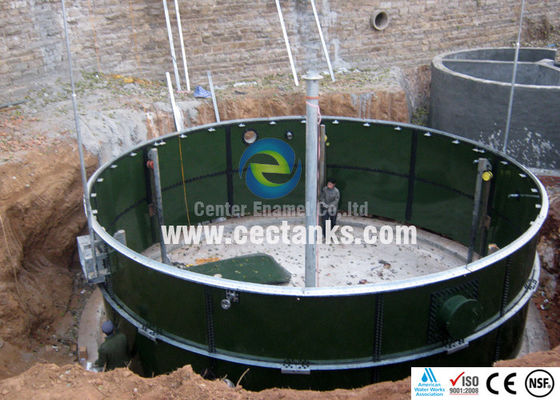

High Chemical Resistance Glass Fused Bolted Wastewater Treatment Tanks
Introduction of GFS bolted tank
Our enamel coating wastewater treatment tanks are consist of Enamel sheet, Special sealant and Self-locking bolts with more than 30 years service life. The enamel steel sheet is made of ART310 enamel special steel containing rich titanium that makes the steel sheet twice the strength than ordinary steel plate. Both sides of steel plate coated with two layers of enamel frit, fuse the steel and enamel frits in 850℃-900℃ high temperature oven, makes the steel sheet to achieve the best performance of both : the strength and flexibility of the steel combined with the excellent corrosion resistance of the glass. The strong bonding enamel coating not only can prevent the corrosion of tank, but also resistance to strong acid and alkali. To assemble the wastewater treatment storage tanks, there is no need any other big equipment during construction, we use the self-locking bolt and polyurethane or silicon sealant to connect the steel sheets. This kind of assembly structure achieved rapid low installation requirements. And according to actual requirements, the capacity of the tanks can be expanded and removed easily.
Application of Glass fused bolted tank
| Power and Energy | Water supply and Treatment | Wastewater Treatment | Industrial dry bulk storage | |
| Biogas biomass | Potable water/Water storage | Buffer Pool | Mineral | |
| Aviation oil | Bitter-brackish water | Aerobic Reactor | Wood product | |
| Process water | Raw water/Fresh water | Biological Filter | Stone/Clay/Glass | |
| Boiler Feedwater | Aeration | Effluent Treatment | Chemicals | |
| Fuel Oil | Biological Filter | Regulating Tank | Petrochemicals | |
| Kerosene | Water Purifying | Anaerobic reactor | Foods | |
| DI water | Fire-fighting water | Leachate Storage | Plasthetics | |
| Coal Storage | Saline Water/Brine Water | Irrigation water | Grain / Seeds | |
| Diesel | Sedimention Container | Water Purifying | ||
| Drilling mud | Ro Water | Sedimentation Container | ||
| Reverse osmosis water | Sea water desalinization | Sludge Tank | ||
| Fly ash silo | Lime Silo | Animal Wastes | ||
Specficaition
| Category | Specification |
| Coating Color | dark green, white, blue, color can be customized upon your request |
| Coating Thickness | 0.25～0.40mm ,double coating |
| Acid and alkalinity proof | Standard sheet PH:3～11 |
| Special sheet PH: 1～14 | |
| Adhesion | 3,450 N/cm |
| Elastic | Same as steel sheet,around 500 Kn /mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥30Years |
| Holiday test | >1500v |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Smooth, glossy, inert, non adhesive |
| Corrosion resistance |
Excellent. suitable for waste water treatment, sewage treatment, effluent treatment.,salt water,sea water,high-sulfur crude oil,salt fox,organic and inorganic compounds |
*
Technology advantages of Center Enamel company:
Being engaged in enamel industry for nearly 30 years, we process more than 200 patents of enamel frit formulas.
* Complied with quality system certificate ISO9001-2008,glass-fused-to-steel tank manufacturing standard Q/01ZT012009 and NSF61 (National Sanitation Foundation) .
* We make structure design of GFS tank according to AWWA D103-09 ,EN ISO 28765,OSHA and series of Australian standards.
* With strictly quality control from the material to the products, have a professional QC team
