Wastewater Treatment Plants Glass Fused To Steel Water Tanks For Municipal Treatments And Organized Industrial Zone
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161021002 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161021002 |
| Coating Thickness: | 0.25mm~0.40mm & Double Coating | Service Life: | ≥30 Years |
| Capacity: | 20 M3 To 18,000 M3 | Tank Material: | Glass Fused To Steel |
| High Light: | glass fused to steel water tanks,above ground fuel storage tanks |
||
Product Description

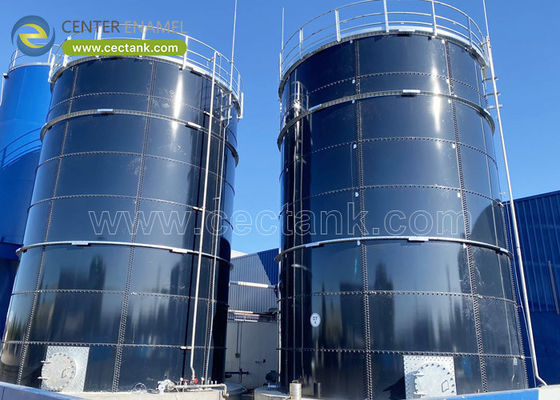

Glass Fused to Steel tanks for Municipal Treatments and Organized Industrial Zone Wastewater Treatment Plants
In water and waste water treatment and biogas project, GFS tank has been widely used as various aerobic and anaerobic reactors of UASB,EGSB,SBR,BAF,USR,CSTR, and equalization tank,Clarifier, sludge holding tank, etc.
Design criterion & certificates: AWWA-D103, OSHA, NSF/ANSI-61 (by IAPMO), ISO9001, FDA
Eight Reasons to choose GFS tanks:
1. Short construction times
2. Tank volume can be expanded
3. Superior corrosion resistance
4. Easy to be shipped, relocated, dismantled
5. No need crane or other large equipment for erection
6. Beautiful appearance
7. Low project cost, more cost effective
8. Enameled surface is durable when exposed to the rigid environment
Projects reference
2008 Beijing Olympic Games Sewage Treatment--4 sets of Ø18.33×3.6M, 1 set of Ø4.82×3.6M
Malaysia Palm oil biogas plant--2 sets of Ø18.33×3.6M
Australia Melbourne Drinking Water Storage--2 sets Ø 22.17 x 6M
New Zealand Dairy Effluent Storage Tank-- 1 sets Ø 11.46 x 3.6M
Russia Municipal Wastewater Treatment---2 sets Ø 5.35 x 8.4 M
Comparison of various tanks:
| No | Item | Cement tank | Carbon steel tank | Enamel tank |
| 1 | Construction time | >90 day | > 60 days | <15 days |
| 2 | Process technology demand | strict | Welding difficult | easy |
| 3 | Installation technology demand | Strict & complicated | difficult | Convenient & easy |
| 4 | removal | impossible | difficult | easy |
| 5 | appearance | normal | normal | Good |
