Product Details:
Payment & Shipping Terms:
|
| Design Life: | 50years | Tank Body Color: | Dark Green / Can Be Customized |
|---|---|---|---|
| Tank Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
| High Light: | water treatment tank,wastewater treatment digester |
||

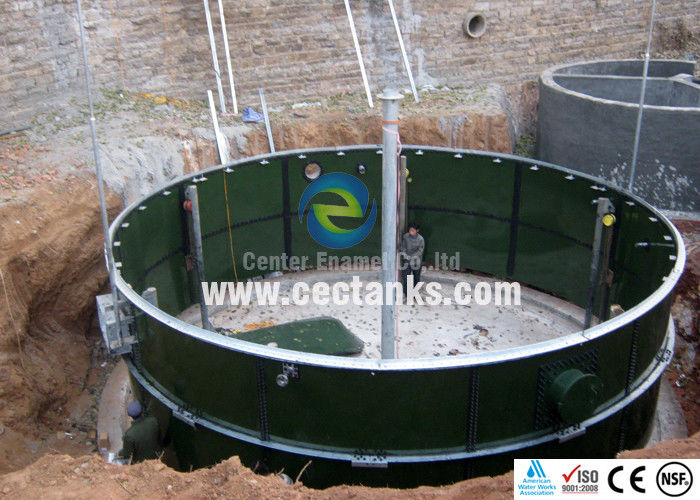

Large Capacity GFS Bolted Steel Storage Tanks for Waste Water
Glass Fused To Steel Tanks are the leader of Water Storage Solutions, widely used for waste water storage, fire fighting water storage and potable water storage etc. Center Enamel Co., Ltd. is the largest manufacturer of Glass Fused To Steel Tanks in China, with more than 25 years experience in designing, manufacturing and installing GFS tanks.
Center Enamel GFS tanks for waste water storage, comply with ANSI/AWWA D103 latest version, EN ISO 28765 and NSF 61 standard. Due to its high quality and competitive pricing, CEC Glass Fused To Steel Tanks have been exported to over 20 countries.
Advantage of GFS Waste Water Storage Tanks
1. Short Construction Period: compare to over 90 days construction time of concrete tank, it takes even less than 15 days for installation of GFS Waste Water Storage Tanks.
2. Superior Corrosion Resistance: Center Enamel Waste Water Storage Tanks can resist PH range of 1 - 14.
3. Long Service Life: the Center Enamel GFS Tank are design to work in a long service life as more than 30 years.
4. Tank Volume can be easily expand: GFS Waste Water Storage Tanks are not only easy to construct, but also convenient to expand, remove and rebuild.
5. Beautiful Appearance: the color of glass fused to steel tank could be customized as per client’s request based on Pantone Matching System.
Specification of GFS Waste Water Storage Tanks
| Category | Specification |
| Coating Color | dark green, white, blue, color can be customized upon your request |
| Coating Thickness | 0.25 - 0.40mm , double coating |
| Acid and alkalinity proof | Standard sheet PH: 3 - 11 |
| Special sheet PH: 1 - 14 | |
| Adhesion | 3450 N / cm |
| Elastic | Same as steel sheet, around 500 Kn / mm |
| Hardness | 6.0 ( Mohs ) |
| Service life | ≥ 30 Years |
| Holiday test | > 1500 V |
| Permeability | Gas / liquid impermeable |
| Easy to clean | Smooth, glossy, inert, non adhesive |
| Corrosion resistance |
Excellent. suitable for waste water treatment, sewage treatment, effluent treatment |
| Characteristic | Stainless steel | Carbon steel | FRP | Cement | Rubber/resin | GFS Tank |
| Abrasion resistance | Normal | Normal | Bad | Good | Bad | Good |
| Corrosion resistance | Good | Bad | Normal | Bad | Normal | Good |
| Impact resistance | Good | Good | Normal | Good | Good | Normal |
| Insulation | Bad | Bad | Good | Good | Good | Good |
| Easy to clean | Good | Normal | Very bad | Very bad | Very bad | Good |
| Heating | Allowed | Allowed | Not allowed | Not allowed | Not allowed | Allowed |
| Anti-static Property | Bad | Bad | Good | Good | Good | Good |
Reference Projects of GFS Waste Water Storage Tanks
During its development in more than 20 years, Center Enamel has exported and built 1000 units of glass fused to steel tanks to over 20 countries, below are some featured projects for your information.
1. 2008 Beijing Olympics Games Waste Water Treatment Project
2. 2010 Palm Oil Mill Effluent Treatment and Bio Gas Project in Indonesia
3. 2011 Niger Portable Water Storage Project
