Answering the core question: What is a pharma reactor, and what design features distinguish it from a standard chemical reactor? A pharma reactor is a GMP-compliant pressure vessel engineered with sanitary design principles to manufacture active pharmaceutical ingredients (APIs) and intermediates under conditions that ensure product purity, batch traceability, and validated cleanability. Key distinguishing features include internal surface roughness (Ra) below 0.4-0.8 micrometers to prevent product adhesion and enable effective clean-in-place (CIP), zero-dead-leg piping and sanitary clamp connections to eliminate contamination traps, integrated sterilize-in-place (SIP) capability for biopharmaceutical applications, full material traceability with 3.1B certificates per EN 10204, and instrumentation qualified through Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) protocols per ISPE Baseline Guides.

1. Core GMP Design Principles for Pharma Reactors

• **Sanitary Surface Design:** Internal surfaces must be electropolished to Ra below 0.4-0.8 micrometers per ASME-BPE and 3-A sanitary standards, with no dead legs exceeding 3x the pipe diameter (L/D < 3), all welds fully penetrated and passivated, and gasket materials FDA-compliant (PTFE, EPDM, or silicone) to prevent product holdup and microbial contamination.
• **CIP and SIP Integration:** Clean-in-place systems deliver cleaning solutions (alkaline, acidic, and final water rinse) through spray balls or rotating nozzles that achieve 100% internal surface coverage; sterilize-in-place systems deliver clean steam to 121-134 degrees C for 15-30 minutes, achieving SAL (Sterility Assurance Level) of 10^-6 for biopharmaceutical applications including cell culture and fermentation.
• **Batch Record and PAT Integration:** Pharma reactors implement electronic batch records (EBR) per 21 CFR Part 11 for paperless documentation of every process parameter (temperature, pressure, agitator speed, feed rates) against pre-approved recipes; in-line PAT sensors (FTIR, FBRM, in-line density) monitor critical quality attributes (CQA) in real time, enabling Quality-by-Design (QbD) release strategies.

2. Major Types of Pharma Reactors

• **Stainless Steel API Reactor (316L):** The standard vessel for small-molecule API synthesis, featuring 316L construction with electropolished internal surfaces, glass-lined or alloy-cladded variants for corrosive steps, and volumes of 500-10,000 L for clinical supply through commercial manufacturing, operating at -40 to +300 degrees C and full vacuum to 6 MPa.
• **Single-Use Bioreactor (SUB): Disposable bag-based reactors used for mammalian cell culture and microbial fermentation in biopharmaceutical manufacturing; eliminates CIP/SIP validation and cross-contamination risk, with volumes of 50-2,000 L and integrated sensors for dissolved oxygen, pH, and temperature, enabling rapid product changeover for multi-product facilities.

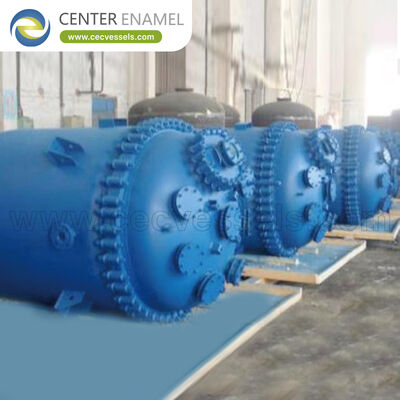

• **Glass-Lined Pharma Reactor:** Combines the corrosion resistance required for aggressive synthetic steps (nitration, halogenation) with the surface inertness needed for high-purity APIs; the fused glass surface (Ra < 0.8 micrometers) prevents metal ion contamination at parts-per-billion levels, critical for cytotoxic compounds and highly potent APIs (HPAPI) where even trace contamination poses safety risks.

Pharma Reactor Types Comparison Matrix

Frequently Asked Questions (FAQ)

Q: What is the primary function of a pharma reactor?

A: A pharma reactor manufactures active pharmaceutical ingredients and intermediates under cGMP conditions, with sanitary design features (Ra < 0.4 micrometers, zero dead legs, CIP/SIP capability) that ensure product purity, batch traceability, and validated cleanability per FDA, EMA, and ICH guidelines.

Q: What is CIP and why is it critical for pharma reactors?

A: Clean-in-Place (CIP) is an automated cleaning system that circulates alkaline, acidic, and rinse solutions through spray balls to achieve validated residue levels (typically < 10 ppm TOC) without disassembling the reactor; it eliminates cross-contamination between batches and products, which is mandatory for multi-product pharmaceutical manufacturing.

Q: How are pharma reactors validated?

A: Validation follows the IQ/OQ/PQ protocol: Installation Qualification verifies that the equipment is installed per design specifications, Operational Qualification confirms that the reactor operates within all design parameters across the full range, and Performance Qualification demonstrates that the reactor consistently produces product meeting pre-defined critical quality attributes under actual process conditions.

Q: What material surface finish is required for pharma reactors?

A: Per ASME-BPE and 3-A sanitary standards, product-contact surfaces must be electropolished to Ra below 0.4-0.8 micrometers, with all welds fully penetrated and passivated to remove free iron and restore the chromium oxide passive layer, preventing microbial retention and enabling effective CIP cleaning.
