What Is a Process Safety Reactor? Design Principles, Standards & Applications

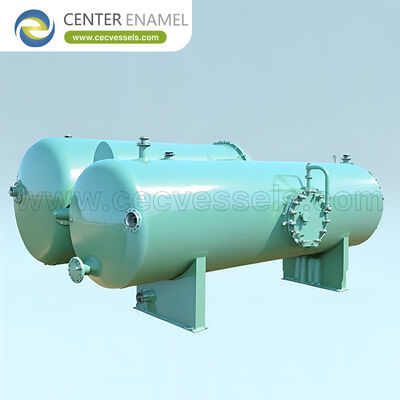

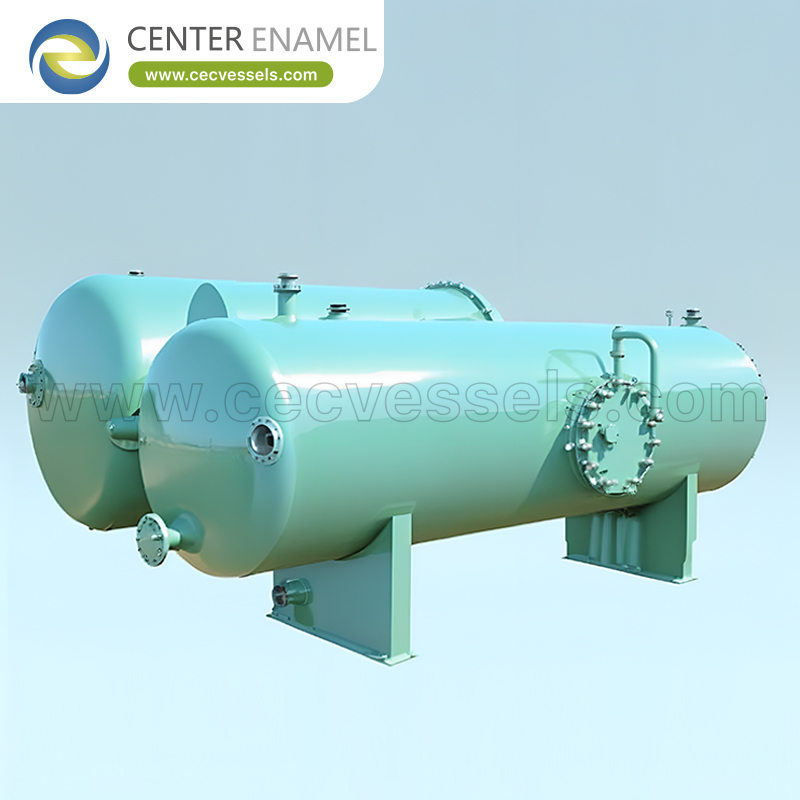

Answering the core question: What is a process safety reactor, and how does it prevent runaway reactions and overpressure incidents? A process safety reactor is a chemical reactor designed, instrumented, and operated with multiple independent layers of protection that prevent, detect, and mitigate runaway reactions, overpressure events, and toxic releases. The design follows a risk-based approach governed by OSHA Process Safety Management (PSM) in the US and IEC 61511 (Functional Safety: Safety Instrumented Systems for the Process Industry) internationally, requiring hazard analysis (HAZOP), layers of protection analysis (LOPA), and safety instrumented systems (SIS) with verified Safety Integrity Levels (SIL 1–4).

• **Inherently Safer Design (ISD)** The hierarchy of safety controls prioritizes elimination over mitigation: minimize (reduce hazardous inventory), substitute (use less hazardous materials), moderate (operate at lower temperature/pressure), and simplify (reduce complexity). A reactor designed for 50°C ambient operation with 10% NaOH is inherently safer than one operating at 200°C with 50% NaOH, eliminating the need for extensive protective systems.
• **Overpressure Protection Layer** Every reactor must have at least two independent overpressure protection devices: a rupture disc (burst disc) as primary protection, set at 110% of design pressure and sized per API 520/521, and a safety relief valve as secondary protection. For exothermic reactions, emergency cooling systems (backup cooling water, quench injection) provide a third layer. All protection devices must be sized for worst-case credible scenario, typically coolant failure at maximum reaction rate.
• **Safety Instrumented System (SIS) and Interlocks** Hardwired safety interlocks provide automatic response to unsafe conditions independent of the basic process control system (BPCS). Critical interlocks include: high-temperature trip (triggers emergency cooling and feed shutoff at 90% of MAWP), high-pressure trip (opens vent valve and stops agitator), and low-agitation trip (stops feed if agitator stops to prevent local hot spots). SIS loops are designed, verified, and maintained to meet the required SIL (typically SIL 2 or 3 for runaway reactions), with proof testing intervals defined by IEC 61511.

• **HAZOP (Hazard and Operability Study)** A structured, systematic examination of the reactor design by a multidisciplinary team. Each process parameter (flow, temperature, pressure, composition) is combined with each guide word (no, more, less, reverse, as well as) to identify credible deviations (e.g., "more temperature" → coolant failure → runaway reaction). Each deviation is assessed for causes, consequences, existing safeguards, and recommendations. A typical HAZOP generates 200–1,000 nodes for a complex reactor system.
• **Layers of Protection Analysis (LOPA)** A semi-quantitative risk assessment that evaluates whether existing protection layers reduce the frequency of hazardous events to a tolerable level. For each scenario (e.g., coolant failure → runaway → vessel rupture → toxic release), LOPA calculates the frequency of the initiating event (e.g., 0.1/year), the probability of failure on demand (PFD) for each independent protection layer (IPL), and compares the resulting frequency with the tolerable risk target (typically 10⁻⁵ to 10⁻⁶ events/year for serious consequences).
• **Emergency Relief System (ERS) Design** Per DIERS (Design Institute for Emergency Relief Systems) methodology, the reactor vent must be sized for two-phase flow during runaway reactions, where liquid swells and enters the vent line. The required vent area depends on the reaction kinetics, heat of reaction, vessel fill level, and vent line length. Undersized vents caused major incidents such as the 2007 T2 Laboratories explosion in Florida, which killed four workers due to inadequate relief sizing for a runaway exotherm.

A Basic Process Control System (BPCS) is the normal control system (DCS or PLC) that maintains process variables at setpoints during normal operation. A Safety Instrumented System (SIS) is a separate, independent system that activates only when the BPCS fails to prevent dangerous conditions. The SIS is designed, verified, and maintained per IEC 61511 with defined Safety Integrity Levels (SIL), proof-tested at defined intervals, and electrically/physically separated from the BPCS to avoid common-cause failures.

A runaway reaction occurs when the heat generation rate from an exothermic reaction exceeds the heat removal capacity of the reactor cooling system, causing temperature and pressure to rise uncontrollably. Prevention requires: (1) adequate cooling capacity sized for worst-case heat release, (2) emergency cooling backup, (3) rapid feed shutoff when temperature exceeds safe limits, (4) emergency quench or inhibitor injection, and (5) properly sized relief devices designed per DIERS methodology for two-phase flow.

HAZOP (Hazard and Operability Study) is a structured analysis where a multidisciplinary team systematically examines every process parameter and deviation to identify hazards and operability problems. HAZOP is required for new reactor installations, major modifications, and processes covered by OSHA PSM (29 CFR 1910.119) for highly hazardous chemicals. A typical HAZOP for a reactor system takes 3–10 days with a team of 5–8 engineers.

SIL is a measure of the risk reduction provided by a safety instrumented function, defined per IEC 61511: SIL 1 (Risk Reduction Factor 10–100), SIL 2 (100–1,000), SIL 3 (1,000–10,000), SIL 4 (10,000–100,000). The required SIL is determined by Layers of Protection Analysis (LOPA), which compares the unmitigated event frequency with the tolerable risk frequency. Higher SIL requires more redundant sensors, redundant final elements, shorter proof-test intervals, and more rigorous design verification.
