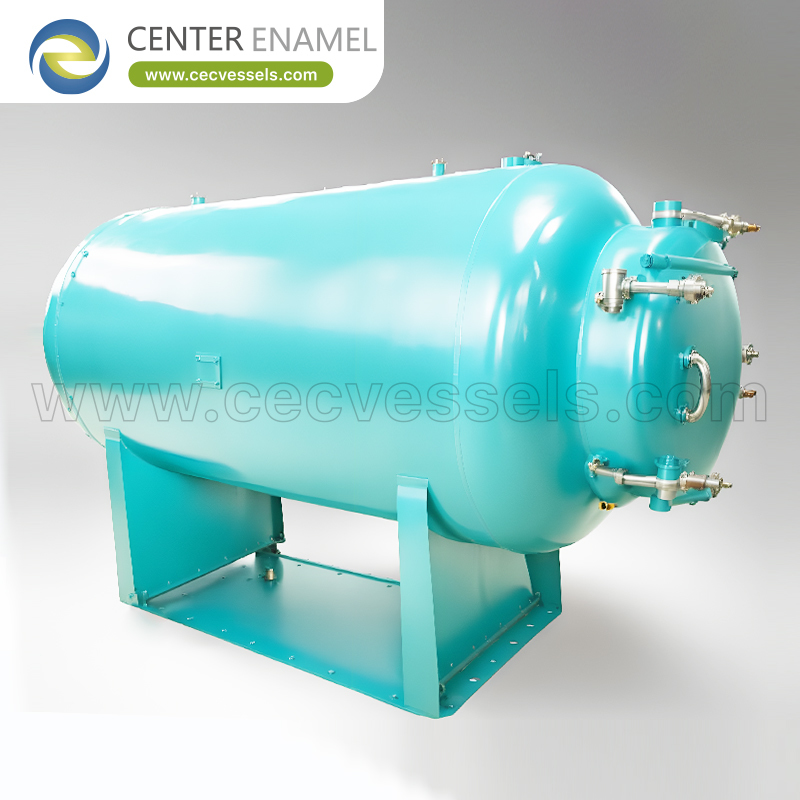

Answering the core question: What is a process control reactor, and how does automation ensure consistent product quality and safe operation? A process control reactor is a chemical reactor equipped with an integrated system of sensors, actuators, and control algorithms that automatically maintain critical process variables—temperature, pressure, pH, agitation speed, feed rate, and composition—within predefined setpoints without continuous operator intervention. Modern process control reactors use distributed control systems (DCS) or programmable logic controllers (PLC) executing proportional-integral-derivative (PID) loops, cascade control strategies, and increasingly model predictive control (MPC) to achieve temperature control accuracy of ±0.1–0.5°C and composition control within ±0.5–2% of target.

1. Core Operating Principles of Process Control Reactors

• **Cascade Temperature Control** A primary PID controller compares the reactor temperature setpoint with the measured value and computes a jacket temperature setpoint. A secondary (slave) PID controller manipulates the heating/cooling valve to maintain that jacket setpoint. This cascade architecture rejects disturbances 5–10* faster than single-loop control, because the slave loop responds to jacket temperature changes before they propagate to the reactor contents.
• **Process Analytical Technology (PAT) Integration** In-line PAT sensors provide real-time measurement of chemical composition: FTIR (Fourier Transform Infrared) for functional group monitoring, FBRM (Focused Beam Reflectance Measurement) for particle size in crystallization, and in-line HPLC for impurity profiling. PAT data feeds back to the DCS, enabling feed-forward control that adjusts reactant feed rates based on actual conversion rather than assumed stoichiometry, reducing batch-to-batch variability by 50–80%.
• **Model Predictive Control (MPC)** Advanced control systems use a dynamic process model to predict future reactor behavior and optimize control moves over a receding horizon. MPC handles multi-variable interactions (e.g., temperature-pressure-composition coupling), process constraints (maximum temperature, maximum pressure), and economic objectives (maximize yield, minimize energy). MPC typically improves yield by 1–5% and reduces energy consumption by 5–15% compared to conventional PID control.

2. Major Types of Process Control Strategies

• **Feedback (Closed-Loop) Control** The most common strategy: the controller measures the controlled variable (e.g., reactor temperature), compares it with the setpoint, and adjusts the manipulated variable (e.g., jacket heating valve). PID algorithms compute the control action based on proportional (current error), integral (accumulated past error), and derivative (predicted future error) terms. Well-tuned PID achieves ±0.1–0.5°C temperature stability for jacketed reactors.
• **Feed-Forward Control** The controller measures a disturbance variable (e.g., cooling water inlet temperature or reactant feed temperature) and adjusts the manipulated variable before the disturbance affects the controlled variable. Feed-forward control reduces the impact of measured disturbances by 50–90% compared to feedback-only control, but requires an accurate process model and disturbance measurement.
• **Supervisory and Recipe-Based Control (S88)** Batch reactors follow ISA-S88 batch control standards, where recipes define sequential operations (charge, heat, react, cool, discharge). The DCS executes recipe phases, supervises interlocks, and records electronic batch records (EBR). This ensures that every batch follows identical procedures, meeting GMP and FDA 21 CFR Part 11 compliance for pharmaceutical manufacturing.

Process Control Strategy Comparison Matrix

Frequently Asked Questions (FAQ)

What is the difference between PID and model predictive control (MPC)?

PID controllers react to current error between setpoint and measurement using three terms: proportional (current error), integral (past error accumulation), and derivative (predicted future error). MPC uses a mathematical process model to predict future behavior and optimizes all control moves simultaneously over a time horizon, handling multi-variable interactions and process constraints that PID cannot. MPC is 5–20* more expensive to implement but typically improves yield by 1–5% and reduces energy by 5–15%.

What is Process Analytical Technology (PAT) and why is it important?

PAT refers to in-line or on-line analytical instruments that measure chemical composition in real time during the reaction, rather than taking samples for off-line laboratory analysis. PAT tools include FTIR (functional groups), Raman (crystalline form), FBRM (particle size), and in-line HPLC (impurities). PAT enables real-time release testing (RTRT), reducing batch cycle time by eliminating the wait for lab results and reducing batch failures by 50–80%.

What is the ISA-S88 batch control standard?

ISA-S88 (ANSI/ISA-88) is an international standard for batch process control that defines a hierarchical structure: process → unit → equipment module → control module. Recipes specify procedural operations (charge, heat, react, cool, discharge) as sequential phases. The standard enables recipe portability across different equipment, consistent batch execution, and electronic batch records (EBR) compliant with FDA 21 CFR Part 11.

What is cascade control and when is it used in reactors?
