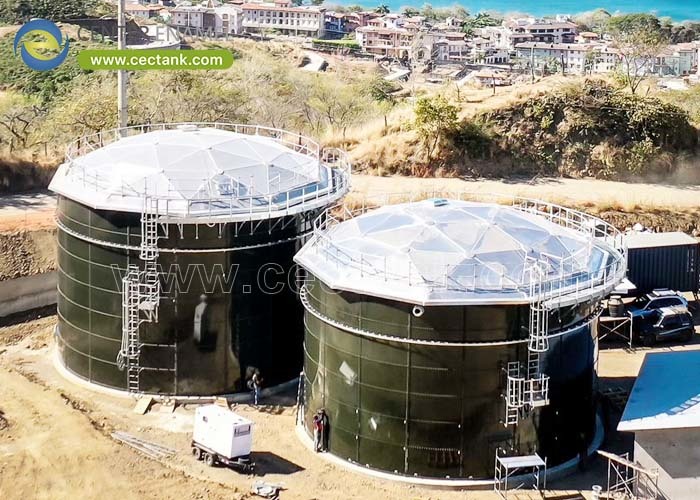

Structural Aluminum Geodesic Dome Roofs

A structural aluminum geodesic dome roof is a clear-span aluminum geodesic dome roof up to 75 m that protects a tank from weather and vapor loss while adding only 6-12 kg/m². Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), these aluminum geodesic dome roofs are built to EN 1090 and pair with GFS or welded tanks for a 30-50 year life.

What an Aluminum Geodesic Dome Roof Is

An aluminum geodesic dome roof is a triangular-panel clear-span cover made from Aluminum 6061-T6 that spans up to 75 m with no internal posts. It weighs only 6-12 kg/m² and is inherently corrosion-free, giving a 30-50 year cover over a 20-60,000 m3 tank. The geodesic geometry carries wind up to 55 m/s and snow up to 2.0 kN/m².

• Span: up to 75 m.
• Weight: 6-12 kg/m2.
• Material: Aluminum 6061-T6.
• Life: 30-50 years.

How the Dome Structure Works

The dome works as a thin-shell geodesic where the triangular aluminum panels share load through bolted nodes, so the cover is stiff at 6-12 kg/m² without internal columns. A perimeter compression ring transfers the load to the tank shell, and the panel joints take a vapor liner for sealed duty. The geometry is calculated to EN 1090 and API 650 for the rated 55 m/s wind.

• Shell: triangular nodes.
• Ring: perimeter compression.
• Liner: vapor seal.
• Code: EN 1090 / API 650.

Key Types, Components, and Features

The range covers aluminum geodesic domes, flat aluminum decks, and vented covers, each bolted from Aluminum 6061-T6 panels. Components are the panels, the node bolts, the perimeter ring, the access hatch, and the optional EPDM or PVC vapor liner. A 30-50 year life and a corrosion-free surface are the headline features.

• Types: dome, deck, vented.
• Panels: 6061-T6.
• Liner: EPDM or PVC.
• Life: 30-50 years.

Applications of Structural Dome Roofs

They cover potable water, wastewater, and bulk-dry tanks where a sealed, low-load, corrosion-free roof is needed. An aluminum geodesic dome roof is also used overdigester and volatile tanks because its liner-tight option controls vapor. The 6-12 kg/m² weight protects the shell across a 30-50 year life.

• Water: potable cover.
• Waste: sealed roof.
• Dry: bulk goods.
• Volatile: vapor liner.

Technical Considerations

Technically the dome is designed for a 0.5-2.0 kN/m² snow load and up to 55 m/s wind, built from Aluminum 6061-T6 at 6-12 kg/m² and calculated to EN 1090 and API 650. The panel joints take an EPDM or PVC vapor liner for sealed duty, and the 30-50 year life is documented with the tank. Confirm the access hatch and the venting with the supplier.

• Snow: 0.5-2.0 kN/m2.
• Wind: up to 55 m/s.
• Liner: EPDM / PVC.
• Code: EN 1090.

How to Select a Structural Dome Roof

Select by matching the span (up to 75 m), the wind and snow load, and the vapor requirement to an aluminum geodesic dome roof with an EN 1090 calculation and a 6-12 kg/m² weight. Ask Shijiazhuang Zhengzhong Technology Co., Ltd. for the load rating and the liner option. Confirm the access hatch and the venting before ordering.

• Match: span and load.
• Evidence: EN 1090 calc.
• Liner: vapor option.
• Confirm: hatch + vent.

Project Case Study

A verified drinking-water project in Indonesia used a Glass-Fused-to-Steel (GFS) tank of 21,099 m3 completed in 2025 topped by an aluminum geodesic dome roof. The aluminum 6061-T6 dome spanned the tank at 6-12 kg/m², was built to EN 1090, and gave a corrosion-free, 30-50 year cover over a major potable reserve.

• Project: Indonesia drinking water
• Location: Indonesia, Asia
• Industry: Municipal water
• Application: Potable water storage + dome roof
• Product: GFS bolted tank + aluminum geodesic dome
• Capacity: 21,099 m3
• Quantity: 1 tank
• Material: GFS shell + Aluminum 6061-T6 dome
• Standards: EN 1090 / AWWA D103-09
• Year: 2025

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is a tank and dome manufacturer founded in 2008, exporting to more than 100 countries with nearly 200 enamel patents. Its structural program pairs Glass-Fused-to-Steel (GFS) tanks with aluminum geodesic dome roofs engineered to EN 1090 and API 650, weighing 6-12 kg/m² for a 30-50 year life.

• Founded: 2008 in China.
• Reach: 100+ countries.
• Patents: nearly 200.
• Dome: EN 1090 rated.

Advantages and Limitations

An aluminum geodesic dome roof gives a clear-span, corrosion-free, 6-12 kg/m² cover that lasts 30-50 years and seals vapor with a liner. A limitation is that very large process penetrations or heavy equipment loads need a reinforced node design; this boundary is confirmed at design so the bolts and the ring are sized correctly.

• Advantage: clear-span, 30-50 yr.
• Advantage: corrosion-free.
• Limitation: heavy penetration.
• Boundary: reinforce nodes.

Comparison of Roof Builds

Against concrete flat roofs and steel open trusses, an aluminum geodesic dome roof offers a clear span, low weight, and a liner-tight vapor seal. The table contrasts the three on the points a roof buyer weighs: span, corrosion, and weight, with the dome rated to EN 1090 for a 30-50 year life.

• Dome: 75 m, light.
• Concrete: heavy, slow.
• Truss: hard to seal.
• Liner: vapor option.

Conclusion

A structural aluminum geodesic dome roof is defined by a clear span up to 75 m, a 6-12 kg/m² aluminum shell, and an EN 1090 design that lasts 30-50 years. Specify the load rating and the vapor liner, and the dome will protect the tank without posts or repainting.

• Span: up to 75 m.
• Code: EN 1090.
• Life: 30-50 years.

Frequently Asked Questions (FAQ)

What is an aluminum geodesic dome roof?

It is a clear-span aluminum geodesic dome roof built from triangular 6061-T6 panels that span up to 75 m with no internal posts. It weighs only 6-12 kg/m², is naturally corrosion-free, and is designed to EN 1090 and API 650 for a 30-50 year life.

How much weight does a dome add?

An aluminum geodesic dome adds only 6-12 kg/m² to the tank, far less than a concrete roof, so the supporting shell is not heavily loaded. The perimeter compression ring transfers the load to the tank wall.

Can a dome seal volatile vapor?

Yes. The panel joints can take an EPDM or PVC vapor liner for a liner-tight cover, which is why domes are used over volatile and digester tanks. Confirm the liner option and the venting with the supplier.

Which standards apply to domes?

The structural design is covered by EN 1090 for aluminum and API 650 for the interface with the tank; the tank itself follows AWWA D103-09 for bolted steel. A 30-50 year life and the load rating are the practical evidence.

What wind and snow can it take?

A typical dome is rated for up to 55 m/s wind and 0.5-2.0 kN/m² snow, calculated to EN 1090. The exact rating is set by the site climate and must be confirmed at design.

What information is needed for a quote?

Provide the tank diameter, the wind and snow load, and whether vapor sealing is needed. That lets the supplier size the aluminum geodesic dome roof and quote the EN 1090 package.

Suggested CTA: Share your tank diameter, site wind or snow load, and vapor-seal need with the Center Enamel engineering team for an aluminum geodesic dome roof quotation.
