pH 1 Wastewater Storage Tanks: Acid Duty

pH 1 wastewater storage tanks must hold strongly acidic streams such as landfill leachate without lining failure, so Glass-Fused-to-Steel (GFS) enamel or Fusion Bonded Epoxy (FBE) is specified. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) supplies GFS and FBE tanks from 20 to 60,000 m3 with a 1500 V holiday test for 30-50 year acid duty.

What a pH 1 Wastewater Tank Is

A pH 1 wastewater tank is a bolted vessel lined to survive strongly acidic streams such as landfill leachate that can fall below pH 2. The Glass-Fused-to-Steel (GFS) enamel is 0.25-0.45 mm fused at 820-930°C and holiday-tested at 1500 V, while Fusion Bonded Epoxy (FBE) at 250-450 µm covers pH 1-14. Capacities run 20-60,000 m3 with 8.8-grade bolting.

• Lining: GFS or FBE.
• Coat: 0.25-0.45 mm GFS.
• pH: down to 1 with FBE.
• Range: 20-60,000 m3.

How the Tank Resists pH 1

Resistance comes from a non-porous factory barrier that keeps steel away from the acid. For pH 1-2, FBE at 250-450 µm cured at 180-220°C and pull-off tested (ASTM D4541) is used; GFS enamel is specified from pH 3-11. Because the lining is fused or cured in the factory, the 30-50 year tank does not depend on field painting that fails in acid.

• FBE: pH 1-14, 180-220°C.
• GFS: pH 3-11, fired.
• Test: 1500 V / pull-off.
• Factory: uniform cure.

Key Types, Components, and Features

The range covers GFS leachate tanks, FBE acid tanks, and bolted process tanks, each with 8.8-grade bolting and a sealed roof. Components are the lined shell, the base ring, the nozzles, the mixer brackets, and the access. A 30-50 year design life and a documented lining test are the headline features for acid duty.

• Types: GFS, FBE, process.
• Bolts: 8.8-grade.
• Roof: sealed.
• Life: 30-50 years.

Applications of pH 1 Tanks

They serve landfill leachate, acid-process effluent, and pickling or mining streams where the pH stays near 1-2. A Glass-Fused-to-Steel (GFS) or FBE tank is chosen because the factory lining resists the acid across a 30-50 year life, while painted steel fails within a few years in such chemistry.

• Leachate: pH<2 common.
• Mining: acid process.
• Pickling: low pH.
• Inert: acid-proof.

Technical Considerations

Technically the steel is blasted to Sa 2.5, GFS enamel is fused at 820-930°C to 0.25-0.45 mm DFT with a 1500 V holiday test, or FBE is cured at 180-220°C to 250-450 µm. The shell is calculated to AWWA D103-09 and ISO 28765, and the 8.8-grade bolts are torqued to a record for a 30-50 year life. Confirm the exact pH and the temperature.

• Blast: Sa 2.5.
• Fuse: 820-930°C GFS.
• Cure: 180-220°C FBE.
• Test: 1500 V.

How to Select a pH 1 Tank

Select by matching the lowest pH and the temperature to FBE (pH 1-14) or GFS (pH 3-11), then require a 1500 V holiday-test record and an AWWA D103-09 package. Ask Shijiazhuang Zhengzhong Technology Co., Ltd. for the lining certificate and the leachate references. Confirm the pH boundary and the temperature before ordering.

• Match: pH and temp.
• Evidence: 1500 V + D103-09.
• Certificate: lining grade.
• Confirm: pH boundary.

Project Case Study

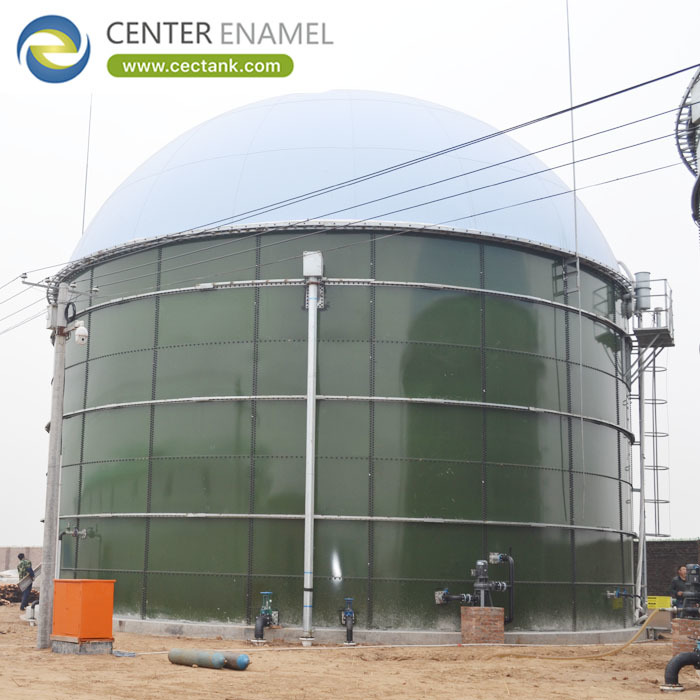

A verified landfill leachate project in Beijing, China used a Glass-Fused-to-Steel (GFS) tank of 1,373 m3 completed in 2022 to store strongly acidic leachate. The 0.25-0.45 mm enamel was holiday-tested at 1500 V and the 8.8-grade bolted shell met AWWA D103-09 and ISO 28765, showing an acid-duty tank built for real leachate.

• Project: Beijing landfill leachate
• Location: Beijing, China
• Industry: Waste management / landfill
• Application: Acidic leachate storage
• Product: GFS bolted tank
• Capacity: 1,373 m3
• Quantity: 1 tank
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2022

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is a Glass-Fused-to-Steel (GFS) and Fusion Bonded Epoxy (FBE) tank manufacturer founded in 2008, exporting to more than 100 countries with nearly 200 enamel patents. Its acid program covers pH 1-14 FBE and pH 3-11 GFS tanks fused or cured in the factory with a 1500 V holiday test and a 30-50 year design life.

• Founded: 2008 in China.
• Reach: 100+ countries.
• Patents: nearly 200.
• Linings: GFS + FBE.

Advantages and Limitations

The factory lining gives a 30-50 year, acid-proof tank that needs no field repaint in pH 1-2 streams. A genuine limitation is that standard GFS enamel is not for pH below 2, so FBE or a liner is specified; this boundary must be confirmed in the specification, not found during operation, or the warranty is at risk.

• Advantage: acid-proof, 30-50 yr.
• Advantage: no repaint.
• Limitation: GFS pH>2 only.
• Boundary: specify FBE.

Comparison of Acid Linings

Against painted steel, welded coated, and concrete, a Glass-Fused-to-Steel (GFS) or FBE tank offers a factory barrier and faster bolt-up for pH 1-2 duty. The table ranks the bodies on the pH range, coating control, and the 30-50 year life that acid streams demand.

• GFS: pH 3-11.
• FBE: pH 1-14.
• Painted: fails fast.
• Concrete: porous, leaks.

Conclusion

pH 1 wastewater storage tanks rely on a factory FBE or GFS barrier verified by a 1500 V holiday test and an AWWA D103-09 shell for a 30-50 year acid life. Specify the lining grade and the pH boundary, and the tank will hold leachate where painted steel fails within years.

• Barrier: FBE or GFS.
• Proof: 1500 V + D103-09.
• Life: 30-50 years.

Frequently Asked Questions (FAQ)

Which lining survives pH 1 wastewater?

For pH 1-2 streams, Fusion Bonded Epoxy (FBE) at 250-450 µm cured at 180-220°C and pull-off tested is used; Glass-Fused-to-Steel (GFS) enamel covers pH 3-11. Both are factory-applied, unlike field painting that fails quickly in acid.

What pH can a GFS leachate tank handle?

Standard GFS enamel is designed for pH 3-11; below 2 a specialized FBE or liner is specified. Landfill leachate that can fall below pH 2 is therefore often specified with FBE, and the boundary is confirmed at design.

What capacity can an acid tank reach?

A single GFS or FBE tank spans 20-60,000 m3; the Beijing leachate project used 1,373 m3 for strongly acidic storage. The 0.25-0.45 mm (or 250-450 µm FBE) lining and 8.8-grade bolts scale with the volume.

Which standards apply to acid tanks?

AWWA D103-09 for the bolted steel, ISO 28765 for the enamel, and ASTM D4541 for FBE adhesion, with ISO 9001 for quality. A 1500 V holiday test and a lining certificate are the practical checks.

How long does an acid-resistant tank last?

A GFS or FBE tank is designed for 30-50 years with a factory lining and a 1500 V holiday test. Painted steel in pH 1-2 effluent often needs recoating within a few years, which is the main reason buyers switch.

What information is needed for a quote?

Provide the lowest pH, the temperature, the suspended solids, and the total volume. That lets the supplier pick the lining grade, size the shell and the 8.8-grade bolts, and deliver an AWWA D103-09 package.

Suggested CTA: Send your lowest pH, temperature, and volume to the Center Enamel engineering team for a Glass-Fused-to-Steel or FBE acid-duty tank proposal and leachate references.
