Glass-Lined Biogas Tanks Supplier: GFS AD Storage

A glass-lined biogas tanks supplier should demonstrate Glass-Fused-to-Steel (GFS) enamel capability and real anaerobic-digestion references, not generic claims. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) supplies GFS digesters from 20 to 60,000 m3 with a 0.25-0.45 mm enamel and a 1500 V holiday test for 30-50 year biogas duty.

What a Glass-Lined Biogas Tank Is

A glass-lined biogas tank is a Glass-Fused-to-Steel (GFS) anaerobic digester whose 0.25-0.45 mm enamel is fused at 820-930°C to resist the corrosive slurry and the methane at 5-30 mbar. Capacities reach 20-60,000 m3 and the bolted 8.8-grade shell avoids field welding. The inert surface is why the same tank handles both acid start-up and mature digestate.

• Coat: 0.25-0.45 mm enamel.
• Pressure: 5-30 mbar.
• Bolts: 8.8-grade.
• Range: 20-60,000 m3.

How a Supplier Delivers a GFS Digester

A reliable supplier delivers factory-enameled panels fused at 820-930°C, a 1500 V holiday test on every panel, an AWWA D103-09 shell calculation, and on-site bolt-up with 8.8-grade fasteners. Shijiazhuang Zhengzhong Technology Co., Ltd. also provides the roof, the nozzles, and the installation support so the digester is gas-tight at 5-30 mbar from commissioning.

• Panels: enameled 820-930°C.
• Test: 1500 V each.
• Bolts: 8.8-grade.
• Support: erection aid.

Key Types, Components, and Features

The supplier range covers the GFS digester tank, the double-membrane gas holder at 5-30 mbar, and the aluminum geodesic dome roof. Components are the 0.25-0.45 mm enamel shell, the 8.8-grade bolt set, the slurry nozzles, the mixer brackets, and the gas outlet. A 30-50 year design life is the headline feature for CAPEX planning.

• Digester: GFS shell.
• Holder: membrane 5-30 mbar.
• Roof: geodesic option.
• Life: 30-50 years.

Applications of GFS Biogas Tanks

They serve farm manure digestion, food-waste AD plants, and municipal sludge-to-energy where methane must be captured. A Glass-Fused-to-Steel (GFS) tank at 35-38°C mesophilic temperature and 5-30 mbar is used worldwide because the inert enamel tolerates the digestion chemistry across a 30-50 year life.

• Farms: manure AD.
• Food: waste AD.
• Municipal: sludge energy.
• Temp: 35-38°C.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the enamel is fused at 820-930°C to 0.25-0.45 mm DFT, and a 1500 V holiday test verifies pinholes. The shell is calculated to AWWA D103-09 and ISO 28765 for 5-30 mbar and a 30-50 year life, and the 8.8-grade bolts are torqued to a recorded value. Confirm the pH window below 5.5.

• Blast: Sa 2.5.
• Fuse: 820-930°C.
• Test: 1500 V.
• Bolts: 8.8-grade.

How to Select a Glass-Lined Biogas Tanks Supplier

Select a supplier on enamel evidence and references: a 1500 V holiday-test record, an AWWA D103-09 and ISO 28765 package, and a digester reference above 1,000 m3. Ask Shijiazhuang Zhengzhong Technology Co., Ltd. for the enamel certificate (0.25-0.45 mm) and the project list. Reject suppliers that cannot show the digestion pH boundary.

• Evidence: 1500 V + D103-09.
• Reference: >1,000 m3 AD.
• Certificate: 0.25-0.45 mm.
• Reject: no pH check.

Project Case Study

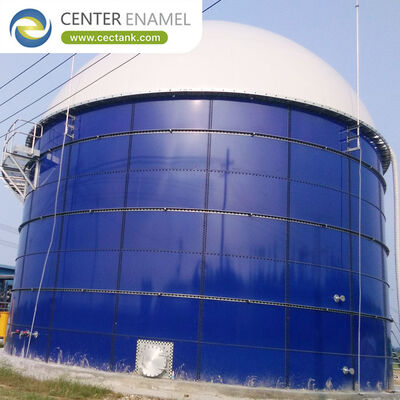

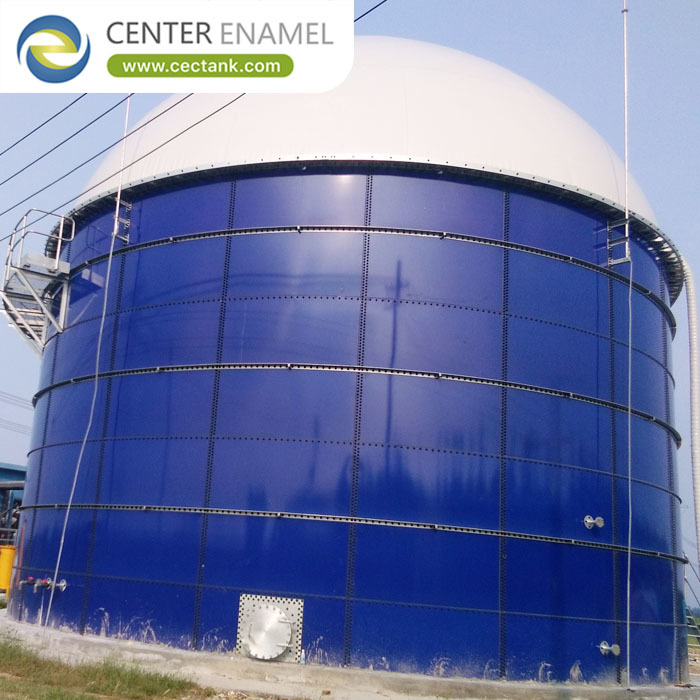

A verified Glass-Fused-to-Steel (GFS) biogas project in Beijing, China used a 1,587 m3 digester built in 2021 with a gas-membrane roof to convert organic waste into methane at 5-30 mbar. The 0.25-0.45 mm enamel was holiday-tested at 1500 V and the 8.8-grade bolted shell met ISO 28765, showing a glass-lined supplier delivering a working AD tank.

• Project: Beijing biogas AD plant
• Location: Beijing, China
• Industry: Renewable energy / waste
• Application: Anaerobic digestion
• Product: GFS bolted digester + membrane roof
• Capacity: 1,587 m3
• Quantity: 1 tank
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2021

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is a Glass-Fused-to-Steel (GFS) tank manufacturer founded in 2008, exporting to more than 100 countries with nearly 200 enamel patents. Its biogas program covers 20-60,000 m3 digesters fused at 820-930°C with a 1500 V holiday test and a 30-50 year design life on AD references.

• Founded: 2008 in China.
• Reach: 100+ countries.
• Patents: nearly 200.
• Range: 20-60,000 m3.

Advantages and Limitations

The inert enamel gives a 30-50 year, corrosion-proof digester that holds methane at 5-30 mbar without repainting. A limitation is that the feedstock below pH 5.5 for long needs a correction step; this boundary is confirmed during process design, not after the tank is buried, or the coating warranty is at risk.

• Advantage: inert, 30-50 years.
• Advantage: no repaint.
• Limitation: pH<5.5 as-is.
• Boundary: design check.

Comparison With Build Options

Against welded coated steel and concrete, a Glass-Fused-to-Steel (GFS) biogas tank offers factory enamel quality and faster bolt-up. The table contrasts the bodies on the points an AD buyer weighs: coating control, erection speed, and 30-50 year life.

• GFS: factory enamel.
• Welded: field coat.
• Concrete: slow cure.
• FBE: acid film.

Conclusion

A glass-lined biogas tanks supplier is chosen on a 1500 V holiday-test record, an AWWA D103-09 and ISO 28765 package, and real AD references, not on generic claims. Shijiazhuang Zhengzhong Technology Co., Ltd. delivers Glass-Fused-to-Steel (GFS) digesters at 5-30 mbar and 20-60,000 m3 for 30-50 years.

• Pick: evidence, not claims.
• Proof: 1500 V record.
• Scale: to 60,000 m3.

Frequently Asked Questions (FAQ)

What should a glass-lined biogas supplier prove?

A credible supplier proves a 1500 V holiday-test record, an AWWA D103-09 shell calculation, an ISO 28765 enamel design, and at least one digester reference above 1,000 m3. The 0.25-0.45 mm enamel certificate and the pH boundary are the checks buyers should require.

What capacity can a GFS biogas tank reach?

A single Glass-Fused-to-Steel (GFS) digester spans 20-60,000 m3; larger plants use multiple tanks, as shown by the 5,504 m3 Sweden project. The 0.25-0.45 mm enamel and 8.8-grade bolts scale with volume.

What pressure do biogas digesters hold?

Bolted GFS digesters and their membrane holders are designed for 5-30 mbar, calculated to AWWA D103-09 and ISO 28765. They are low-pressure, high-corrosion vessels, not high-pressure gas storage.

Is GFS suitable for food-waste AD?

Yes. The inert enamel tolerates the acid start-up and alkaline mature phases at 35-38°C mesophilic temperature, and a 30-50 year life is common. Confirm the feedstock pH window with the supplier before specifying.

Which standards apply to GFS digesters?

AWWA D103-09 for the bolted steel, ISO 28765 for the enamel, and ISO 9001 for quality; ISO 45001 covers safety. A 1500 V holiday test and a 0.25-0.45 mm thickness certificate are the practical evidence.

What information is needed for a quote?

Provide the feed volume, the slurry pH and temperature (35-38°C typical), the gas pressure (5-30 mbar), and the total volume. That lets the supplier size the GFS shell, the membrane holder, and the 8.8-grade bolts.
