Digester Glass Enamel Coating: GFS Protection

A digester glass enamel coating is the Glass-Fused-to-Steel (GFS) lining fused at 820-930°C to 0.25-0.45 mm that protects anaerobic digesters from corrosive slurry for 30-50 years. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), it is holiday-tested at 1500 V and meets AWWA D103-09 and ISO 28765.

What a Digester Glass Enamel Coating Is

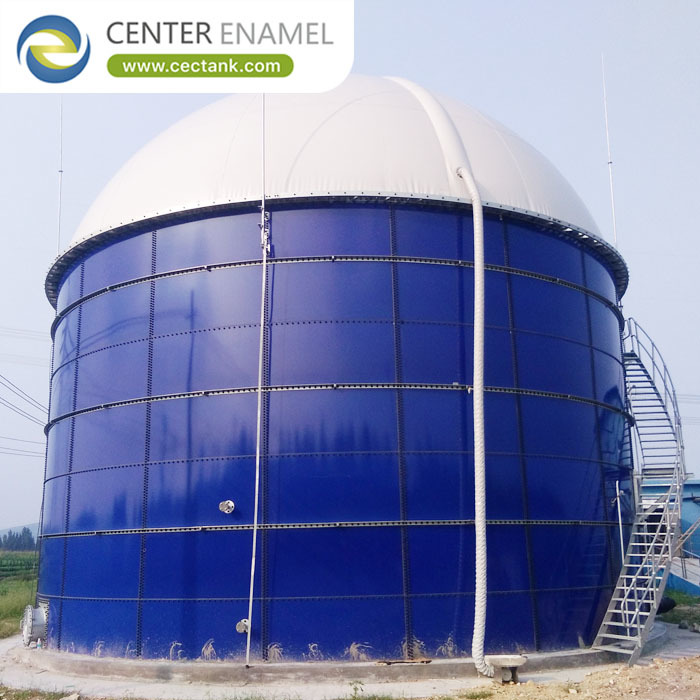

A digester glass enamel coating is a vitreous layer fused at 820-930°C onto steel to 0.25-0.45 mm, forming the inert interior of a Glass-Fused-to-Steel (GFS) anaerobic digester. It resists the corrosive slurry and the methane at 5-30 mbar for 30-50 years. Capacities reach 20-60,000 m3 and the 8.8-grade bolted shell avoids field welding.

• Coat: 0.25-0.45 mm enamel.
• Fuse: 820-930°C.
• Pressure: 5-30 mbar.
• Range: 20-60,000 m3.

How the Enamel Protects the Digester

Protection comes from a non-porous glass layer fired onto the steel so the slurry never contacts metal. A 1500 V holiday test confirms no pinholes, and the 0.25-0.45 mm thickness is certified. Because the enamel is fused in the factory at 820-930°C, the 30-50 year digester keeps its barrier through the acid start-up and the alkaline mature phases at 35-38°C.

• Fired: 820-930°C.
• Test: 1500 V.
• Thick: 0.25-0.45 mm.
• Temp: 35-38°C.

Key Types, Components, and Features

The range covers GFS digester tanks, double-membrane gas holders at 5-30 mbar, and geodesic digester roofs, each with 8.8-grade bolting. Components are the 0.25-0.45 mm enamel shell, the bolt set, the slurry nozzles, the mixer brackets, and the gas outlet. A 30-50 year design life is the headline feature for AD CAPEX planning.

• Digester: GFS shell.
• Holder: membrane 5-30 mbar.
• Bolts: 8.8-grade.
• Life: 30-50 years.

Applications of Digester Enamel

It serves farm manure digestion, food-waste AD plants, and municipal sludge-to-energy where methane is captured at 5-30 mbar. A Glass-Fused-to-Steel (GFS) digester at 35-38°C is used worldwide because the inert enamel tolerates the digestion chemistry across a 30-50 year life better than painted steel.

• Farms: manure AD.
• Food: waste AD.
• Municipal: sludge energy.
• Temp: 35-38°C.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the enamel is fused at 820-930°C to 0.25-0.45 mm DFT, and a 1500 V holiday test verifies pinholes. The shell is calculated to AWWA D103-09 and ISO 28765 for 5-30 mbar and a 30-50 year life, and the 8.8-grade bolts are torqued to a record. Confirm the pH window below 5.5.

• Blast: Sa 2.5.
• Fuse: 820-930°C.
• Test: 1500 V.
• Bolts: 8.8-grade.

How to Specify a Digester Enamel Coating

Specify by requiring a 1500 V holiday-test record, an AWWA D103-09 and ISO 28765 package, and the 0.25-0.45 mm thickness certificate, then match the volume and the 5-30 mbar gas pressure. Ask Shijiazhuang Zhengzhong Technology Co., Ltd. for the enamel grade and the AD references. Confirm the pH boundary below 5.5.

• Require: 1500 V + D103-09.
• Certificate: 0.25-0.45 mm.
• Match: volume + pressure.
• Confirm: pH boundary.

Project Case Study

A verified anaerobic digestion project in Canada used 2 Glass-Fused-to-Steel (GFS) digester tanks of 798 m3 completed in 2024 with an enamel roof to convert organic waste into methane at 5-30 mbar. The 0.25-0.45 mm enamel was holiday-tested at 1500 V and the 8.8-grade bolted shells met ISO 28765, showing a digester glass enamel coating in service.

• Project: Canada anaerobic digestion
• Location: Canada, North America
• Industry: Renewable energy / waste
• Application: Anaerobic digestion
• Product: GFS bolted digester + enamel roof
• Capacity: 798 m3
• Quantity: 2 tanks
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2024

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is a Glass-Fused-to-Steel (GFS) tank manufacturer founded in 2008, exporting to more than 100 countries with nearly 200 enamel patents. Its digester program fuses enamel at 820-930°C to 0.25-0.45 mm, holiday-tests every panel at 1500 V, and delivers AD tanks to AWWA D103-09 and ISO 28765 for a 30-50 year life.

• Founded: 2008 in China.
• Reach: 100+ countries.
• Patents: nearly 200.
• Fuse: 820-930°C.

Advantages and Limitations

The glass enamel gives a 30-50 year, corrosion-proof digester that holds methane at 5-30 mbar without repainting. A limitation is that the feedstock below pH 5.5 for long needs a correction step; this boundary is confirmed during process design, not after the tank is installed, or the coating warranty is at risk.

• Advantage: inert, 30-50 years.
• Advantage: no repaint.
• Limitation: pH<5.5 as-is.
• Boundary: design check.

Comparison of Digester Linings

Against welded coated steel and concrete, a Glass-Fused-to-Steel (GFS) digester offers factory enamel quality and faster bolt-up. The table contrasts the bodies on coating control, erection speed, and the 30-50 year life that AD buyers weigh.

• GFS: factory enamel.
• Welded: field coat.
• Concrete: slow cure.
• FBE: acid option.

Conclusion

A digester glass enamel coating is defined by a 0.25-0.45 mm layer fused at 820-930°C, a 1500 V holiday test, and a 30-50 year life under 5-30 mbar biogas. Specify the AWWA D103-09 and ISO 28765 package and the enamel certificate, and the digester will resist the slurry from the first batch.

• Coat: 0.25-0.45 mm.
• Proof: 1500 V record.
• Life: 30-50 years.

Frequently Asked Questions (FAQ)

What is a digester glass enamel coating?

It is the vitreous layer fused at 820-930°C onto steel to 0.25-0.45 mm that forms the inert interior of a Glass-Fused-to-Steel (GFS) anaerobic digester. It resists the corrosive slurry and the methane at 5-30 mbar for 30-50 years.

How is the enamel quality verified?

Quality is verified by a 1500 V holiday test on every panel and a 0.25-0.45 mm thickness certificate, supported by the AWWA D103-09 shell math and the ISO 28765 enamel design. Buyers should request all three pieces of evidence.

What capacity can a GFS digester reach?

A single GFS digester spans 20-60,000 m3; the Canada project used 2 tanks of 798 m3 for organic-waste AD. The 0.25-0.45 mm enamel and 8.8-grade bolts scale with the plant size.

Can it handle acidic digester feed?

The inert enamel tolerates the normal digestion pH window of 6.5-8.5 at 35-38°C. If the feedstock stays below pH 5.5 for long, a correction step is added; this boundary is confirmed during process design.

Which standards apply to GFS digesters?

AWWA D103-09 for the bolted steel, ISO 28765 for the enamel, and ISO 9001 for quality; ISO 45001 covers safety. A 1500 V holiday test and a 0.25-0.45 mm certificate are the practical checks.

What information is needed for a quote?

Provide the feed volume, the slurry pH and temperature (35-38°C typical), the gas pressure (5-30 mbar), and the total volume. That lets the supplier size the GFS shell, the membrane holder, and the 8.8-grade bolts.

Suggested CTA: Send your feed volume, pH window, and 5-30 mbar gas profile to the Center Enamel engineering team for a Glass-Fused-to-Steel digester with a documented enamel coating quotation.
