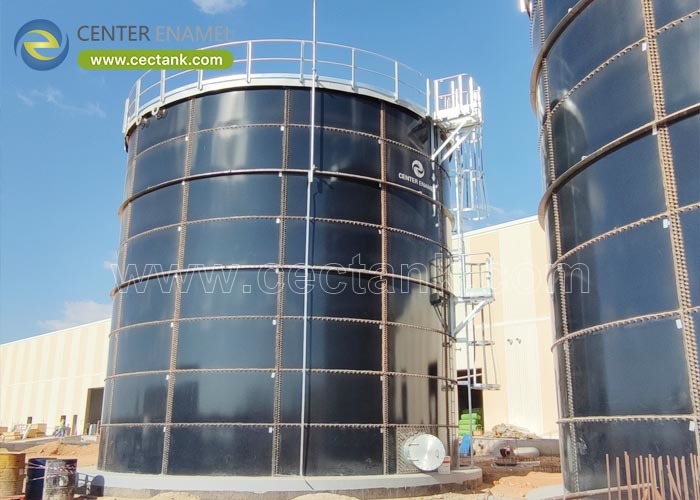

Corrosion-Resistant Wastewater Storage Tanks

Corrosion-resistant wastewater storage tanks must survive aggressive effluent for 30-50 years, so Glass-Fused-to-Steel (GFS) enamel or Fusion Bonded Epoxy (FBE) is specified. Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) supplies GFS tanks from 20 to 60,000 m3 with a 0.25-0.45 mm enamel and a 1500 V holiday test for pH 3-11 duty.

What a Corrosion-Resistant Wastewater Tank Is

A corrosion-resistant wastewater tank is a bolted vessel lined with vitreous enamel (GFS) or Fusion Bonded Epoxy (FBE) to resist pH 3-11 effluent for 30-50 years. The GFS coat is 0.25-0.45 mm fused at 820-930°C and holiday-tested at 1500 V; FBE is a 250-450 µm cured powder. Capacities run 20-60,000 m3 and the 8.8-grade shell avoids field welding.

• Linings: GFS or FBE.
• Coat: 0.25-0.45 mm GFS.
• pH: 3-11 typical.
• Range: 20-60,000 m3.

How the Lining Resists Corrosion

Resistance comes from a non-porous, factory-fused barrier that keeps the steel away from the effluent. GFS enamel at 0.25-0.45 mm is fired at 820-930°C and verified at 1500 V; FBE at 250-450 µm is cured at 180-220°C and pull-off tested. Because the lining is made in the factory, quality is uniform and the 30-50 year tank does not depend on field painting.

• GFS: fired 820-930°C.
• FBE: cured 180-220°C.
• Test: 1500 V / pull-off.
• Uniform: factory made.

Key Types, Components, and Features

The range covers GFS wastewater tanks, FBE tanks for acid streams, and bolted process tanks, each with 8.8-grade bolting and a fixed or geodesic roof. Components are the lined shell, the base ring, the nozzles, the mixer brackets, and the access. A 30-50 year design life and a documented lining test are the headline features.

• Types: GFS, FBE, process.
• Bolts: 8.8-grade.
• Roof: fixed or dome.
• Life: 30-50 years.

Applications of Resistant Wastewater Tanks

They serve industrial effluent, municipal wastewater, and acidic process streams where painted steel fails in a few years. A Glass-Fused-to-Steel (GFS) tank at pH 3-11 and 30-50 years is used across factories, mines, and plants. For pH below 2, a specialized FBE or liner is specified instead of standard enamel.

• Industrial: effluent.
• Municipal: sewage.
• Acid: FBE stream.
• Inert: pH 3-11.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the GFS enamel is fused at 820-930°C to 0.25-0.45 mm DFT, and a 1500 V holiday test verifies pinholes; FBE is cured at 180-220°C to 250-450 µm. The shell is calculated to AWWA D103-09 and ISO 28765, and the 8.8-grade bolts are torqued to a record for a 30-50 year life.

• Blast: Sa 2.5.
• Fuse: 820-930°C GFS.
• Cure: 180-220°C FBE.
• Test: 1500 V.

How to Select a Resistant Wastewater Tank

Select by matching the pH (3-11 for GFS, below 2 for FBE), the temperature, and the volume to a tank with a 1500 V holiday-test record and an AWWA D103-09 package. Ask Shijiazhuang Zhengzhong Technology Co., Ltd. for the lining certificate (0.25-0.45 mm GFS or 250-450 µm FBE) and the industrial references. Confirm the pH boundary before ordering.

• Match: pH and temp.
• Evidence: 1500 V + D103-09.
• Certificate: lining grade.
• Confirm: pH boundary.

Project Case Study

A verified industrial wastewater project in Xinjiang, China used 27 Glass-Fused-to-Steel (GFS) tanks totaling 30,469 m3 completed in 2026 to store corrosive process effluent. The 0.25-0.45 mm enamel was holiday-tested at 1500 V and the 8.8-grade bolted shells met AWWA D103-09, demonstrating a corrosion-resistant tank program at very large scale.

• Project: Xinjiang industrial wastewater
• Location: Xinjiang, China
• Industry: Industrial manufacturing
• Application: Corrosive process effluent
• Product: GFS bolted tank
• Capacity: 30,469 m3
• Quantity: 27 tanks
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / ISO 28765
• Year: 2026

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is a Glass-Fused-to-Steel (GFS) and Fusion Bonded Epoxy (FBE) tank manufacturer founded in 2008, exporting to more than 100 countries with nearly 200 enamel patents. Its corrosion program covers 20-60,000 m3 effluent tanks fused at 820-930°C or FBE-cured at 180-220°C, with a 1500 V holiday test and a 30-50 year design life.

• Founded: 2008 in China.
• Reach: 100+ countries.
• Patents: nearly 200.
• Linings: GFS + FBE.

Advantages and Limitations

The factory lining gives a 30-50 year, inert, corrosion-proof tank that needs no field repaint. A genuine limitation is that standard GFS enamel is not for pH below 2 without a specialized liner; this boundary must be confirmed in the specification, not found during operation, or the warranty is at risk.

• Advantage: inert, 30-50 years.
• Advantage: no repaint.
• Limitation: avoid pH<2 as-is.
• Boundary: specify liner.

Comparison of Resistant Linings

Against painted steel, welded coated, and concrete, a Glass-Fused-to-Steel (GFS) or FBE tank offers a factory barrier and faster bolt-up. The table ranks the bodies on the pH range, coating control, and the 30-50 year life that effluent duty demands.

• GFS: pH 3-11, fired.
• FBE: pH 1-14 option.
• Painted: fails early.
• Concrete: porous.

Conclusion

Corrosion-resistant wastewater storage tanks rely on a factory GFS enamel or FBE barrier verified by a 1500 V holiday test and an AWWA D103-09 shell for a 30-50 year life. Specify the lining grade and the pH boundary, and the tank will resist the effluent where painted steel fails.

• Barrier: GFS or FBE.
• Proof: 1500 V + D103-09.
• Life: 30-50 years.

Frequently Asked Questions (FAQ)

Which lining resists wastewater corrosion best?

For pH 3-11 effluent, a 0.25-0.45 mm Glass-Fused-to-Steel (GFS) enamel fired at 820-930°C and verified at 1500 V is the common choice. For pH below 2, Fusion Bonded Epoxy (FBE) at 250-450 µm cured at 180-220°C is preferred; both are factory-applied, unlike field painting.

What pH can a GFS wastewater tank handle?

A standard GFS tank is designed for pH 3-11; below 2 a specialized FBE or liner is specified. This boundary must be confirmed at design, not during operation, because the warranty depends on the declared chemistry window.

What capacity can a resistant tank reach?

A single GFS tank spans 20-60,000 m3; the Xinjiang project used 27 tanks totaling 30,469 m3 for corrosive effluent. The 0.25-0.45 mm enamel and 8.8-grade bolts scale with the plant size.

Which standards apply to effluent tanks?

AWWA D103-09 for the bolted steel, ISO 28765 for the enamel, and ISO 9001 for quality; FBE references ASTM D4541 for adhesion. A 1500 V holiday test and a 0.25-0.45 mm (or 250-450 µm FBE) certificate are the practical checks.

How long does a corrosion-resistant tank last?

A GFS or FBE tank is designed for 30-50 years with a factory lining and a 1500 V holiday test. Painted steel in acidic effluent often needs recoating within a few years, which is the main reason buyers switch to GFS or FBE.

What information is needed for a quote?

Provide the pH, the temperature, the suspended solids, and the total volume. That lets the supplier pick the lining grade, size the shell and the 8.8-grade bolts, and deliver an AWWA D103-09 package.

Suggested CTA: Send your effluent pH, temperature, and volume to the Center Enamel engineering team for a Glass-Fused-to-Steel or FBE corrosion-resistant tank proposal and industrial references.
