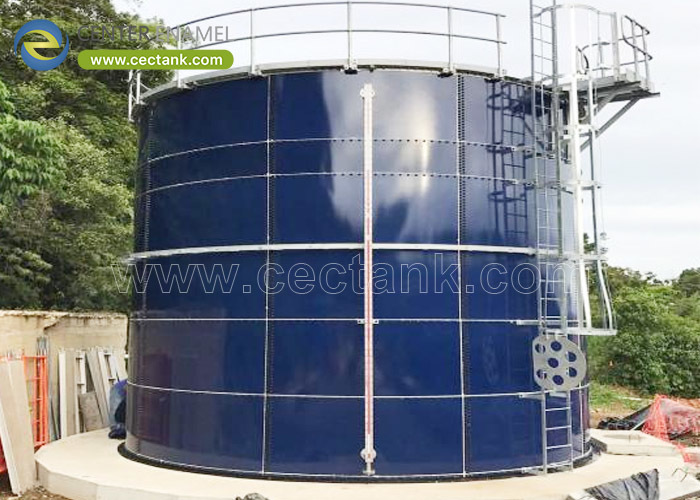

AWWA Glass-Lined Water Storage Tanks

AWWA glass-lined water storage tanks are Glass-Fused-to-Steel (GFS) vessels whose inert enamel meets NSF/ANSI 61 for potable contact and passes a 1500 V holiday test for a 30-50 year life. Engineered by Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), they serve drinking water from 20 to 60,000 m3 worldwide.

What an AWWA Glass-Lined Water Tank Is

An AWWA glass-lined water tank is a Glass-Fused-to-Steel (GFS) vessel whose 0.25-0.45 mm enamel is fused at 820-930°C to give an inert, NSF/ANSI 61-capable potable surface. Capacities run 20-60,000 m3 and the 8.8-grade bolted shell avoids field welding. The glass lining is why the tank stores clean water without rust or coating flake for 30-50 years.

• Coat: 0.25-0.45 mm enamel.
• Standard: NSF/ANSI 61.
• Bolts: 8.8-grade.
• Range: 20-60,000 m3.

How Glass Lining Protects Water

The protection comes from a non-porous vitreous enamel fired at 820-930°C onto the steel to 0.25-0.45 mm, so the water never touches bare metal. A 1500 V holiday test confirms no pinholes and the surface is selected to meet NSF/ANSI 61 for potable contact. Because the lining is factory-fused, the 30-50 year tank needs no field repaint.

• Fired: 820-930°C.
• Test: 1500 V.
• Standard: NSF/ANSI 61.
• No repaint: factory fused.

Key Types, Components, and Features

The range covers potable GFS tanks, fire-water tanks, and HVAC buffer tanks, each with 8.8-grade bolting and a fixed or geodesic roof. Components are the 0.25-0.45 mm enamel shell, the base ring, the internal ladders, the nozzles, and the level controls. A 30-50 year design life and NSF/ANSI 61 contact are the headline features.

• Types: potable, fire, HVAC.
• Bolts: 8.8-grade.
• Roof: fixed or dome.
• Life: 30-50 years.

Applications of Glass-Lined Water Tanks

They serve municipal drinking water, rural supply, and commercial building reserves where potable contact must meet NSF/ANSI 61. A Glass-Fused-to-Steel (GFS) tank is chosen because the inert enamel resists the 30-50 year duty without rust or liner failure, and the bolted build speeds delivery to remote towns.

• Municipal: drinking water.
• Rural: supply.
• Buildings: reserve.
• Inert: NSF contact.

Technical Considerations

Technically the steel is blasted to Sa 2.5, the enamel is fused at 820-930°C to 0.25-0.45 mm DFT, and a 1500 V holiday test verifies pinholes. The shell is calculated to AWWA D103-09 and ISO 28765, potable contact meets NSF/ANSI 61, and the 8.8-grade bolts are torqued to a record for a 30-50 year life.

• Blast: Sa 2.5.
• Fuse: 820-930°C.
• Test: 1500 V.
• Standard: NSF/ANSI 61.

How to Select a Glass-Lined Water Tank

Select by requiring NSF/ANSI 61 contact, a 1500 V holiday-test record, and an AWWA D103-09 and ISO 28765 package, then match the volume and footprint to the site. Ask Shijiazhuang Zhengzhong Technology Co., Ltd. for the enamel certificate (0.25-0.45 mm) and the potable references. Confirm the roof type and the venting.

• Require: NSF/ANSI 61.
• Evidence: 1500 V + D103-09.
• Certificate: 0.25-0.45 mm.
• Confirm: roof + vent.

Project Case Study

A verified drinking-water project in Malaysia used 4 Glass-Fused-to-Steel (GFS) tanks totaling 20,380 m3 completed in 2025 under an aluminum geodesic dome roof. The 0.25-0.45 mm enamel met NSF/ANSI 61 contact, was holiday-tested at 1500 V, and the 8.8-grade bolted shells met AWWA D103-09 and ISO 28765, showing large potable GFS storage.

• Project: Malaysia drinking water
• Location: Malaysia, Asia
• Industry: Municipal water
• Application: Potable water storage
• Product: GFS bolted tank + aluminum geodesic dome
• Capacity: 20,380 m3
• Quantity: 4 tanks
• Material: Glass-Fused-to-Steel
• Standards: AWWA D103-09 / NSF-ANSI 61 / ISO 28765
• Year: 2025

About Shijiazhuang Zhengzhong Technology Co., Ltd.

Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) is a Glass-Fused-to-Steel (GFS) tank manufacturer founded in 2008, exporting to more than 100 countries with nearly 200 enamel patents. Its potable program is built on NSF/ANSI 61 contact, a 1500 V holiday test, and AWWA D103-09 and ISO 28765 calculations, with a 30-50 year design life on drinking-water references.

• Founded: 2008 in China.
• Reach: 100+ countries.
• Patents: nearly 200.
• Standard: NSF/ANSI 61.

Advantages and Limitations

The inert enamel gives a 30-50 year, NSF/ANSI 61-capable tank that needs no repainting and sheds no coating flake into the water. A limitation is that very high building head or seismic load needs a structural check; this boundary is confirmed at design so the 8.8-grade bolts and the base ring are sized for the site.

• Advantage: NSF contact, 30-50 yr.
• Advantage: no flake, no repaint.
• Limitation: head/seismic check.
• Boundary: size base ring.

Comparison of Potable Tank Builds

Against welded coated steel and concrete, a Glass-Fused-to-Steel (GFS) potable tank offers a factory enamel surface and faster bolt-up. The table ranks the bodies on coating control, erection speed, and the 30-50 year life that water utilities track for CAPEX.

• GFS: factory enamel.
• Welded: field coat.
• Concrete: slow, heavy.
• FBE: alt coating.

AWWA glass-lined water storage tanks are defined by an inert enamel that meets NSF/ANSI 61, a 1500 V holiday test, and a 30-50 year design life. Specify the AWWA D103-09 and ISO 28765 package and the enamel certificate, and the tank will deliver clean water for decades.

• Surface: NSF/ANSI 61.
• Proof: 1500 V record.
• Life: 30-50 years.

Frequently Asked Questions (FAQ)

What is an AWWA glass-lined water tank?

It is a Glass-Fused-to-Steel (GFS) tank whose 0.25-0.45 mm enamel is fused at 820-930°C to give an inert, NSF/ANSI 61-capable potable surface. Capacities run 20-60,000 m3 with 8.8-grade bolting and a 30-50 year design life.

Does the lining meet potable standards?

For potable duty the enamel contact surface is selected to meet NSF/ANSI 61, as in the 20,380 m3 Malaysia project. A 1500 V holiday test and a 0.25-0.45 mm thickness certificate are the practical evidence buyers should require.

What capacity can a GFS water tank reach?

A single tank spans 20-60,000 m3; the Malaysia project used 4 tanks totaling 20,380 m3. The 0.25-0.45 mm enamel and 8.8-grade bolts scale with the required reserve.

Which standards apply to GFS water tanks?

AWWA D103-09 for the bolted steel, ISO 28765 for the enamel, NSF/ANSI 61 for potable contact, and ISO 9001 for quality. The 1500 V holiday test and the thickness certificate are the practical checks.

How long does a glass-lined water tank last?

A GFS water tank is designed for 30-50 years with a 0.25-0.45 mm enamel and a 1500 V holiday test. Painted steel usually needs recoating well before 30 years, which is why utilities choose glass lining.

What information is needed for a quote?

Provide the daily demand or fire reserve, the available footprint, and the site wind or snow load. That lets the supplier size the shell, the 8.8-grade bolts, and the roof to AWWA D103-09.

Suggested CTA: Share your water demand, footprint, and site loads with the Center Enamel engineering team for a Glass-Fused-to-Steel NSF/ANSI 61 potable tank proposal and references.
