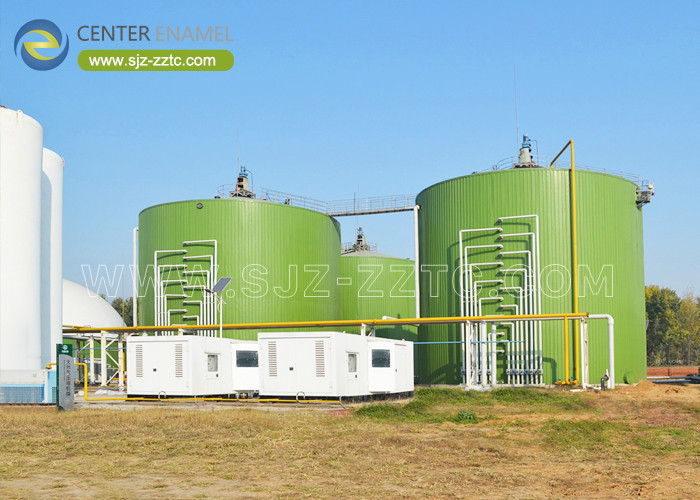

Center Enamel Provides CSTR Reactor for Turkmenistan Biogas Project

Center Enamel Provides CSTR Reactors for Landmark Turkmenistan Biogas Project

Center Enamel has successfully deployed advanced Continuously Stirred Tank Reactor (CSTR) technology for a high-efficiency biogas project in Turkmenistan. By leveraging our proprietary Glass-Fused-to-Steel (GFS) tank systems, Center Enamel is helping the region convert organic waste streams into sustainable energy, driving local renewable energy goals with superior engineering and long-term durability.

Why CSTR Technology is the Future of Biogas

In the biogas industry, the Continuously Stirred Tank Reactor (CSTR) is the gold standard for anaerobic digestion. Unlike traditional batch reactors, a CSTR maintains a constant flow of feedstock, ensuring a homogenous mixture that maximizes microbial activity and gas yield.

For the Turkmenistan biogas project, the operational environment demanded a reactor that could handle:

1. Dynamic Feedstock: Managing varying types of organic waste with consistent output.
2. Structural Integrity: Withstanding the highly corrosive byproduct of anaerobic digestion (hydrogen sulfide and organic acids).
3. Climate Resilience: Operating reliably in Turkmenistan’s specific climatic conditions.

The Center Enamel GFS Advantage

Center Enamel’s GFS tanks serve as the containment vessel for these CSTR reactors. This technology provides distinct advantages over conventional concrete or field-welded steel:

• Inert Surface: The glass-fused surface prevents chemical bonding and corrosion, essential for CSTRs that operate under acidic conditions.
• Homogenous Mixing Support: Our tank designs are engineered to accommodate heavy-duty internal stirring and mixing mechanisms, which are critical for the CSTR process.
• Rapid Deployment: The modular nature of our bolted panel system allowed the Turkmenistan facility to be erected significantly faster than a traditional monolithic concrete reactor.

Technical Comparison: Reactor Containment Systems

Contributing to Turkmenistan’s Energy Goals

The deployment of Center Enamel’s CSTR reactors in Turkmenistan is more than just an infrastructure project; it is a catalyst for economic and environmental progress:

• Waste-to-Energy: Turning agricultural and municipal waste into clean energy reduces reliance on external power grids.
• Circular Economy: The process produces nutrient-rich digestate, which serves as high-quality, organic fertilizer for local farms, completing the agricultural cycle.
• Long-Term Reliability: Our tanks are engineered for a 30+ year lifespan, providing a stable, low-maintenance energy asset for the local community.

Frequently Asked Questions (FAQ)

Q: Why is GFS technology the preferred choice for CSTR reactors?

A: CSTR reactors involve active, often aggressive biological processes. Concrete tanks can suffer from acid corrosion over time, while standard steel tanks require frequent recoating. GFS provides an inert glass layer that protects the steel from the corrosive contents, ensuring the reactor maintains its structural integrity and leak-proof status for decades.

Q: How does Center Enamel handle the logistics for international projects like Turkmenistan?

A: We use a modular, flat-packed shipping system. Our steel panels and hardware are bundled into standard containers, making transportation to landlocked or remote regions highly efficient compared to transporting oversized, prefabricated tanks.

Q: Can this system handle the extreme temperature fluctuations in Central Asia?

A: Yes. Our GFS tanks are designed to handle thermal expansion and contraction. Additionally, we provide thermal insulation packages that can be integrated into the tank design to ensure the biological activity inside the CSTR remains at the optimal temperature, regardless of external ambient conditions.

Q: Is this technology scalable?

A: Yes. Whether the project requires a small-scale CSTR for a single farm or a massive multi-reactor plant for municipal waste, our bolted, modular design can be scaled precisely to meet your required hydraulic retention time and gas output.

Partnering with Center Enamel

At Center Enamel, we are dedicated to providing the world’s most robust, sustainable, and efficient storage solutions for the renewable energy sector. Our involvement in the Turkmenistan biogas project underscores our capability to deliver high-performance engineering to any corner of the globe.

Are you planning a biogas or renewable energy project? Contact our engineering team today for a technical consultation, structural load analysis, and a customized proposal.
