Anti Adhesion Glass Lined Steel Tank Biogas Digester Tank

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI
Model Number: W20160831001
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 30 days after deposit received
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI Model Number W20160831001
Foundation: Concrete Or Glass Fused Steel Tank Body: Glass Fused To Steel
Service Life: ≥30 Years Holiday Test: >1500v
Tank Material: Glass Fused To Steel Corrosion Integrity: Excellent
High Light:

Anti Adhesion Glass Lined Steel Tank


Biogas Glass Lined Steel Tank

Product Description

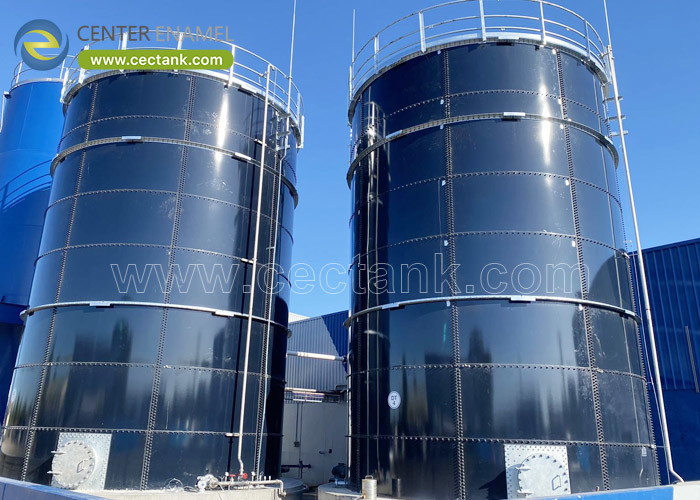

Short Construction Period glass lined steel tank as biogas digester tank


In the ever-evolving landscape of renewable energy, biogas has emerged as a promising solution to both waste management and sustainable energy production. At the heart of biogas production lies the biogas digester tank, a crucial component that facilitates the anaerobic digestion process converting organic waste into biogas. Among various options available for constructing biogas digester tanks, short construction period glass-lined steel tanks have gained significant attention for their numerous advantages.


Understanding Biogas Digester Tanks

Biogas digester tanks are the core infrastructure of anaerobic digestion systems, where organic materials such as agricultural waste, food waste, or sewage sludge are broken down by microorganisms in the absence of oxygen, producing biogas as a byproduct. These tanks provide the controlled environment necessary for efficient biogas production.


glass lined steel tank are assembled on-site from specialized enameled steel plates, reinforcement bars, self-locking bolts, sealing glue, and other components. The raw material for steel plates uses enameled hot-rolled plates developed in collaboration with top domestic iron and steel enterprises, incorporating titanium alloy. The rapid and low-consumption on-site assembly technology shapes the tanks. After the enameled steel plates undergo high-temperature enameling at 820°-930°, the enamel glaze fuses with the steel plate surface, forming a solid inorganic coating with excellent corrosion resistance due to its chemical inertness. The enameling process represents an advanced coating and corrosion prevention technology in the current steel tank market.


glass lined steel tank Parameters

Category Specification
Coating Color Black blue, Grey olive, Forest green, Cobalt blue, Desert tan etc.
Coating thickness 0.25-0.45mm
Acid and alkalinity proof Standard PH: 3~11, Special PH:1~14
Adhesion 3450N/cm²
Hardness 6.0 (Mohs)
Service life ≥30 Years
Holiday test >1500V
Permeability Gas liquid impermeable
Easy to clean Smooth, glossy, inert, anti-adhesion
Corrosion resistance Excellent, suitable for harsh environment


glass lined steel tank Advantages

Superior Corrosion Protection Technology

Center Enamel has independently developed double-sided double-layer enameling technology, filling the gap in the field of hot-rolled double-sided enameling technology in the Chinese enamel industry. This technology is currently the best coating and corrosion prevention technology in the steel tank market, providing superior corrosion resistance.


Wide Application Range

Center Enamel has independently developed over 200 enamel formulations and patents, allowing for customized enamel formulation development based on customer requirements for the storage medium of Glass-Fused-to-Steel tanks. This customization ensures the tanks are widely applicable across different industries.


Site-Specific Design

Tailored to the construction site, Glass-Fused-to-Steel tanks are designed with features such as wind resistance and earthquake resistance, ensuring the tanks remain undamaged by natural factors such as earthquakes and typhoons.


Environmentally Friendly Utilization

Glass-Fused-to-Steel tanks can be flexibly designed in terms of tank size and color customization based on customer and environmental requirements. This design approach saves land space and aligns with the requirements of modern construction.


High Standardization Level

Glass-Fused-to-Steel tank steel plates and main components are standardized through automated production in the factory. After packaging, they are transported to the project site for standardized assembly. From production to installation, strict adherence to the design ensures the standardized manufacturing of tanks.


Simple and Fast Installation

Glass-Fused-to-Steel tanks are installed on-site through assembly, making the installation process simple, fast, less affected by weather conditions, and with a short and controllable installation period. After completion, tanks can be dismantled and reinstalled, facilitating relocation and expansion.


Product Quality Certification

As a leading manufacturer of Glass-Fused-to-Steel tanks in China, our quality system ensures compliance with EN ISO 28765:2016 and AWWA D103-19 requirements, certified through international standards such as ISO 9001, NSF/ANSI 61, WRAS, ISO 28765, LFGB, BSCI, ISO 45001, and others.


Product Packaging and Transportation


Glass lined steel plate is a type of steel plate with a special coating. Special packaging and transportation measures are usually required during manufacturing and transportation to ensure the quality and surface coating of the product remain intact. Below is a detailed introduction to the packaging and transportation of glass lined steel plates:


Inspection and Confirmation: Before packaging, carefully inspect each piece of glass lined steel plate to ensure there are no obvious defects, scratches, or other surface damage. Also, confirm the coding and quality of each plate for subsequent tracing and management.


Isolation and Protection: To prevent damage to the surface coating of the steel plate, isolate each piece of glass lined steel plate using PE foam. PE foam material has excellent cushioning performance, effectively absorbing impact forces from vibration and collision, thereby reducing the risk of surface damage.


Pallet Wrapping: Neatly stack all isolated glass lined steel plates on pallets, then cover the entire pallet with plastic film. This step not only helps protect the surface of the plates but also securely fastens all the plates on the pallet together, preventing movement during transportation.


Fixation and Binding: To further enhance the stability of the packaging, use steel straps to bind and secure the entire pallet. Steel straps provide strong support, ensuring the plates remain stable during transportation, preventing vibration and collision.


Wooden Crate Packaging: Place the entire pallet and packaged glass lined steel plates into a sturdy wooden crate. Wooden crates provide additional protection during transportation, preventing external objects from affecting the packaging and providing an extra layer of protection for the product.


Through the detailed and comprehensive packaging measures outlined above, glass lined steel plates can be well protected during transportation, ensuring the quality and appearance of the product remain undamaged. This packaging method not only helps reduce losses during transportation but also ensures end users receive high-quality glass lined steel plate products.


Center Enamel, through technological optimization and innovation, not only ensures the stable operation of equipment but also emphasizes equipment safety, ensuring compliance with international certifications such as FDA, NSF, and ISO quality systems. Ultimately, Center Enamel stands out in competition with numerous global brands, gaining favor among customers. The drinking water solutions tailored by Center Enamel to local conditions and customer needs not only effectively improve the comprehensive utilization of water resources but also gain recognition from customers for the safety and quality assurance of the equipment.


With outstanding professional technical capabilities and comprehensive strength, Center Enamel has achieved fruitful results in overseas expansion, with customers in 90 countries worldwide. With a strong momentum in "going global" and venturing into international waters, the company will continue to focus on innovative technology and equipment research and development, continuously enhancing the core competitiveness of solutions, establishing industry benchmarks for Chinese technology to go global, and further enhancing Center Enamel's international image.
