Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20161227002 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 0-60 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161227002 |
Holiday Test: | >1500v | Design Life: | 50years |
Tank Body Color: | Dark Green / Can Be Customized | Foundation: | Concrete Or Glass Fused Steel |
Steel Plates Thickness: | 3mm To 12mm , Depends On The Tank Structure | Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof |
Highlight: | Multiple Safety GFS Tanks,GFS Tanks Anti Adhesion |
Multiple Safety Designs, GFS Tanks Meet Project Needs In Different Fields
As a company that has been deeply involved in the field of sewage treatment for many years, Center Enamel not only innovates storage tank installation models, but also continuously develops new processes and new technologies to solve the difficulties and pain points in sewage treatment projects, and continues to add new ideas to water environment management. At the same time, in order to meet the needs of different customers, Center Enamel has independently developed a variety of storage tank products such as GFS tanks, stainless steel tanks, epoxy resin tanks, galvanized tanks, and aluminum dome covers as sewage treatment equipment.

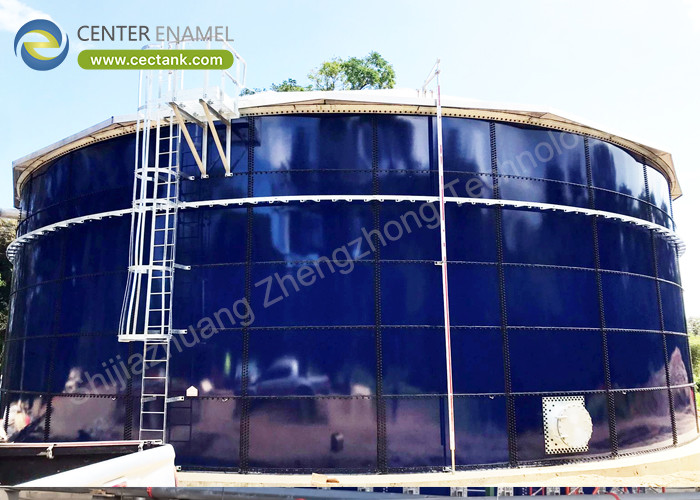

GFS tanks are assembled on site from special enamel steel plates, stirrups, self-locking bolts, sealants and other accessories. The raw material of the steel plate is titanium-containing enamel hot-rolled plate developed in cooperation with domestic first-tier steel companies, which is formed using fast and low-cost on-site assembly technology. After the enameled steel plate is enameled at a high temperature of 820°-930°, the enamel will fuse with the surface of the steel plate to form a strong and chemically inert inorganic coating with excellent corrosion resistance. The enamel process is currently the most advanced coating anti-corrosion technology in the steel storage tank market.
Category | Specification |
Coating Color | Black blue, Grey olive, Forest green, Cobalt blue, Desert tan etc. |
Coating thickness | 0.25-0.45mm |
Acid and alkalinity proof | Standard PH: 3~11, Special PH:1~14 |
Adhesion | 3450N/cm² |
Hardness | 6.0 (Mohs) |
Service life | ≥30 Years |
Holiday test | >1500V |
Permeability | Gas liquid impermeable |
Easy to clean | Smooth, glossy, inert, anti-adhesion |
Corrosion resistance | Excellent, suitable for harsh environment |
Combining the excellent performance of different storage tanks, Center Enamel adopts appropriate treatment processes and safety designs such as earthquake resistance, wind resistance, and anti-corrosion to meet the requirements of different projects and ensure the safe operation of the project. So far, Center Enamel has created a number of benchmark projects in the fields of industrial wastewater, aquaculture wastewater, food waste, landfill leachate, municipal sewage and other fields, fully demonstrating its strong strength in engineering construction, equipment manufacturing, process research and development, etc.
With its first-class storage tank design technology, Center Enamel's design team won the 2018 Design Innovation Award and Outstanding Contribution Award, and has achieved fruitful results in the field of storage tank design. Currently, Center Enamel’s design team has achieved double breakthroughs in the height and volume of enamel assembled tanks. They have designed an enamel assembled tank with a height of 34.8 meters and a diameter of 7.64 meters, and an enamel assembled tank with a height of 8.4 meters, a diameter of 56.56 meters, and a volume of up to 21,100 cubic meters. of enamel assembled jars. The leading design concept and high-quality enamel assembled cans have allowed Center Enamel's enamel assembled cans to be exported to 90 countries and regions, and have won the trust and recognition of many customers.
