Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20160631006 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 0-60 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160631006 |
Tank Body Color: | Dark Green / Can Be Customized | Tank Material: | Glass Fused To Steel |
Foundation: | Concrete Or Glass Fused Steel | Steel Plates Thickness: | 3mm To 12mm , Depends On The Tank Structure |
Highlight: | Smooth GFS Tanks,Anti Corrosion GFS Tanks |
GFS Tanks Lead A New Trend In Anti-Corrosion - The Leading Coating Anti-Corrosion Technology In The Field Of Storage Tan
Shijiazhuang Zhengzhong Technology Co.,Ltd combines the excellent performance of different storage tanks to provide customers with solutions composed of diversified equipment to flexibly meet customer needs and application field requirements. At the same time, during the project construction process, Center Enamel's teams worked closely together, actively coordinated, paid attention to every link, and checked at every level to ensure the smooth completion of the project.The Glass-Fused-to-steel tanks independently developed by Center Enamel have the most advanced coating anti-corrosion technology in the steel storage tank market.

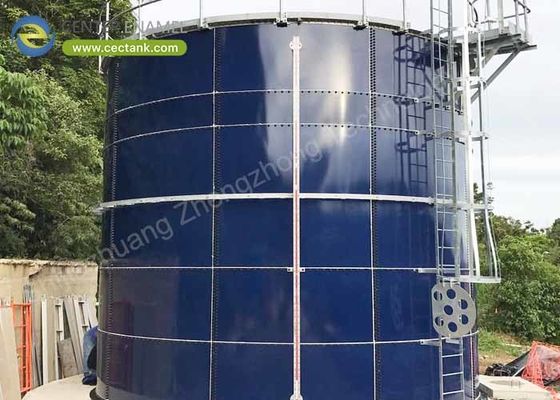

Introduction to Glass-Fused-to-Steel
Glass-Fused-to-Steel are assembled on site from special enamel steel plates, stirrups, self-locking bolts, sealants and other accessories. The raw material of the steel plate is titanium-containing enamel hot-rolled plate developed in cooperation with domestic first-tier steel companies, which is formed using fast and low-cost on-site assembly technology. After the enameled steel plate is enameled at a high temperature of 820°-930°, the enamel will fuse with the surface of the steel plate to form a strong and chemically inert inorganic coating with excellent corrosion resistance. The enamel process is currently the most advanced coating anti-corrosion technology in the steel storage tank market.
Glass Fused To Steel Tanks Specifications:
Category | Specification |
Coating Color | Black blue, Grey olive, Forest green, Cobalt blue, Desert tan etc. |
Coating thickness | 0.25-0.45mm |
Acid and alkalinity proof | Standard PH: 3~11, Special PH:1~14 |
Adhesion | 3450N/cm² |
Hardness | 6.0 (Mohs) |
Service life | ≥30 Years |
Holiday test | >1500V |
Permeability | Gas liquid impermeable |
Easy to clean | Smooth, glossy, inert, anti-adhesion |
Corrosion resistance | Excellent, suitable for harsh environment |
Advantages of GFS tanks
Superior anti-corrosion technology
Center Enamel independently develops double-sided double-layer enamel technology to fill the gap in the Chinese enamel industry in the field of hot-rolled double-sided enamel technology. This technology is currently the best coating anti-corrosion technology in the steel storage tank market and has superior anti-corrosion advantages.
Center Enamel has independently developed more than 200 glaze formulas and patents, and can develop customized enamel formulas according to customers' storage medium requirements for enamel assembled tanks, making the storage tanks widely applicable to different fields.
Designed to suit local conditions
Based on the project construction location, multiple targeted designs such as wind resistance and earthquake resistance were adopted for the GFS tanks to ensure that the enamel assembled tanks will not be damaged by natural factors such as earthquakes and typhoons.
Make reasonable use of the environment
GFS tanks can be flexibly designed and customized in tank size and color according to customer needs and environmental requirements, saving floor space and suitable for modern construction requirements.
High degree of standardization
The steel plates and main components of the GFS tanks are produced in a standardized manner through automated equipment in the factory, and are packaged and transported to the project site for standardized assembly. From production to installation, the design plan is strictly followed to ensure standardized manufacturing of storage tanks.
The GFS tank adopts on-site assembly method, which is simple and fast to install, is less affected by weather factors, and has a short and controllable installation cycle. After it is completed and put into operation, the storage tank can be dismantled and reinstalled, making it easy to relocate and expand its capacity.
From the leader in Asia's Glass-Fused-to-Steel tank industry to a smart manufacturer of environmentally friendly diversified equipment in China, Center Enamel uses key core technologies to continue iterative upgrades in equipment research and development to promote sustained and high-quality development of the company's business under the new situation. With its existing brand advantages, technology advantages and team advantages, the company will continue to focus on the forefront of industry technology, adhere to the diversified development strategy, and while promoting the environmental protection business to a new level, we will jointly paint a beautiful picture of green waters and green mountains.
