Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | J2016012311 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 0-60 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | J2016012311 |
PH Range: | A Grade Sheet PH:3-11, AA Grade Sheet PH : 1-14 | Coating Thickness: | 0.25mm - 0.4mm, Two Coating Internal And External |
Corrosion Resistance: | Excellent ! Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds | Adhesion: | 3,450N/cm |
Permeability: | Gas And Liquid Impermeable | Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 |
Elastic: | Same As Steel Sheet , Around 500KN/mm | Serive Life: | More Than 30 Years |
Highlight: | Glass Fused To Steel Bolted Tanks,Custom Fused To Steel Bolted Tanks |

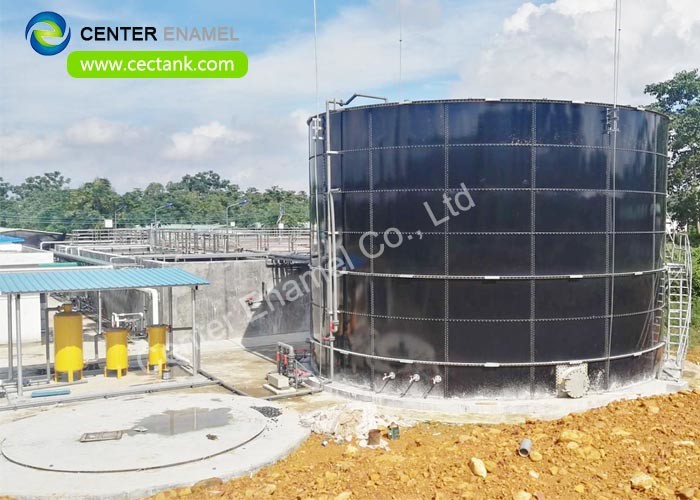

Custom designed Glass-Fused-to-Steel Bolted Tanks for worldwide customers
Center Enamel is the leading Glass-Fused-to-Steel Bolted Tanks manufacturer in China and is committed to providing worldwide customers with storage tanks and roof solutions. And specializes in the design, manufacture, and installation of Glass-Fused-to-Steel Bolted Tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market.
After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and the outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. and Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) Glass Fused to Steel tanks conform to AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA, and other international standards
Glass-Fused-to-Steel Bolted Tanks Advantages:
Short construction period, cost-effective tank solution
Superior corrosion resistance, service life is more than 30 years
Easy to install, no need for big installation equipment and/or very skilled labors
Tank volume can be easily expanded
It can be dismantled, removed and relocated
Elegant appearance, tank color can be customized
Glass-Fused-to-Steel Bolted Tanks Application:
Storage of liquids (liquid manure, manure, brine, process, and fire water, milk of lime, liquid manure and other chemicals within the chemical resistance of enamel), rainwater retention or reuse
Store drinking water to protect public water
Storage of bulk material (grain, limestone, cement, fly ash, carbon black, wood waste, granulated plastic, salt) and possibly feed (silage, haulage, wet food crops)
Wastewater Treatment tanks for wastewater treatment plants and industrial process equipment
Biogas tank
As a leading storage tank manufacturer in China. Center Enamel can provide GFS Tanks, SS Tanks, Epoxy Coated Bolted Steel Tanks, Galvanized Tanks, Aluminum Dome Roofs, Wastewater, and Biogas Project Equipments for global customers.
Configuration of Customized Storage Tanks | ||||
Storage tanks | Volume | Roofs | Application | Design Requirements |
GFS Tanks SS Tanks Fusion Bonded Epoxy Tanks Galvanized Steel Tanks |
<1000m³ 1000-10000m³ 10000-20000m³ 20000-25000m³ >25000m³ |
ADR Roof GFS Roof Membrane Roof FRP Roof Trough Deck Roof |
Wastewater Treatment Project Drinking Water Project Municipal Sewage Project Biogas Project Fire-Water Storage Project Oil Storage Project |
Water Supply & Drainage System Seismic Design Wind Resistant Design Lightning Protection Design Tank Insulation Design |
WasteWater Treatment Project Equipment Supply
Pretreatment Equipment | Resource Utilization System | Sludge Treatment System | Other Equipment |
Mechanical Bar Screen Solid-liquid Separator Submersible Mixer |
Gas Holder Boiler System Boost Fan Biogas Generator Torch System Dehydration and Desulfurization Tank |
PAM Integration Dosing Device Screw Sludge Dewatering Machine Slurry Separation Centrifuge |
Sewage Pump Mud Scraper Submersible Sewage Pump Three-phases Separator |
The Leading Bolted Steel Tanks and Roofs Manufacturer in China
Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) is a professional manufacturer dedicated to the design and fabrication of bolted storage tanks since 1989. Our product range includes Glass-Fused-to-Steel (GFS) tanks, 304 and 316 stainless steel tanks, Fusion bonded epoxy tanks, Galvanized steel tanks, Aluminum geodesic dome roofs, etc. With a professional enameling R&D team and more than 20 enameling patents, Shijiazhuang Zhengzhong Technology Co., Ltd has become the leader in bolted tanks industry of Asia. It is certified to ISO 9001, NSF/ANSI 61, ISO 28765, LFGB, BSCI, ISO 45001, ISO 24001, and other international standards.
Shijiazhuang Zhengzhong Technology Co., Ltd is not only the first manufacturer in China which produces Glass-Fused-to-Steel tanks but also the most experienced professional bolted tanks manufacturer in Asia. The engineering & design, product testing, and quality system of Shijiazhuang Zhengzhong Technology Co., Ltd (Center Enamel) Glass-Fused-to-Steel tanks is in strict accordance with AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA and other international standards. Center Enamel Glass-Fused-to-Steel tanks are wildly used in drinking / potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture, and other applications. Until 2021, Center Enamel bolted tanks have been exported to more than 80 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, Brazil, and South Africa, etc. Our superior tank quality and prompt service gain us worldwide recognition.
