Center Enamel Provides UASB Technology for Industrial Wastewater Treatment

Industrial manufacturing, food processing, brewing, chemicals, and pharmaceuticals generate high-strength effluents characterized by massive Chemical Oxygen Demand (COD) and complex organic compounds. Traditional aerobic treatment systems struggle with these loads due to skyrocketing electricity costs for continuous mechanical aeration and excessive secondary biological sludge generation.

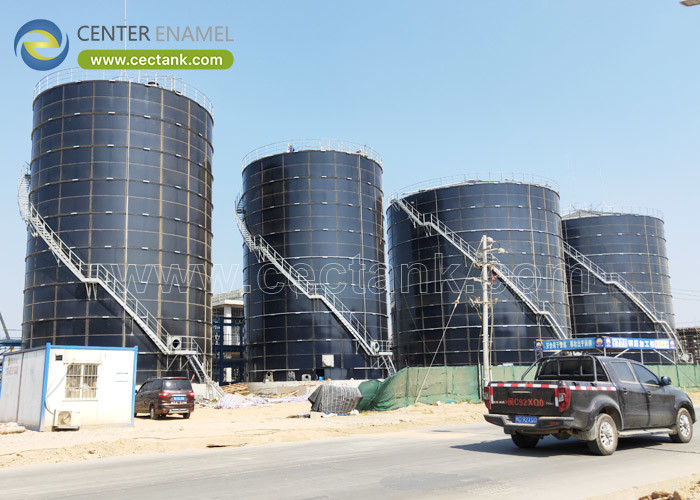

To overcome these operational bottlenecks, high-rate anaerobic digestion has become the industry standard. At the forefront of this environmental engineering shift is Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel), providing advanced Upflow Anaerobic Sludge Blanket (UASB) Technology built upon world-class Glass-Fused-to-Steel (GFS) tank engineering. Center Enamel's UASB systems deliver superior organic pollutant reduction while converting waste streams into valuable renewable energy.

The genius of Center Enamel's UASB technology lies in its optimized biological design and high-performance structural containment:

1. Upflow Sludge Blanket Dynamics: Untreated industrial wastewater enters at the base of the reactor and flows uniformly upward through a dense, highly active "blanket" of anaerobic granular sludge. Without the need for artificial media support, these dense biological granules break down complex organic matter efficiently.

2. Advanced Three-Phase Separation: Positioned at the top of the reactor, Center Enamel's precision-engineered three-phase separators perform three simultaneous functions:

   • Gas Collection: Traps high-purity methane-rich biogas generated by microbial activity.

   • Solids Settlement: Allows heavy, active granules to naturally settle back down into the sludge bed, preventing washout.

   • Liquid Clarification: Discharges treated, low-COD water for subsequent polishing stages or safe environmental discharge.

The internal headspace and liquid zone of an industrial anaerobic reactor represent an aggressive environment characterized by volatile fatty acids (VFAs), hydrogen sulfide (H₂S), and moisture condensation that rapidly corrodes unlined carbon steel and degrades concrete. Center Enamel solves this vulnerability through proprietary GFS technology:

• High-Temperature Thermal Fusion: Specialized silica glass frit is fused to high-strength structural steel plates at extreme temperatures between 820°C and 930°C. This creates an inseparable molecular bond combining steel's tensile strength with glass's absolute chemical inertness.

• Complete Acid and Corrosion Immunity: The smooth, non-porous glass surface (Mohs hardness 6.0) is entirely impervious to acidic industrial byproducts, eliminating interior rusting and structural thinning.

• Hermetic Gas-Tightness: Engineered gasket sealing systems and specialized double-membrane or bolted roof structures ensure zero fugitive methane emissions, maximizing green energy recovery.

• Rapid Modular Deployment: Prefabricated panels are bolted rapidly on-site, slashing construction schedules compared to multi-week concrete pouring and curing phases.

Engineering Assurance: All UASB reactor systems engineered by Center Enamel comply strictly with rigorous international standards, including ISO 28765, AWWA D103-09, and ISO 9001, backed by quality controls such as 100% high-voltage holiday spark testing prior to site dispatch.

A: Center Enamel's UASB reactors are exceptionally effective for high-strength industrial wastewaters with high Chemical Oxygen Demand (COD) concentrations, including effluents from food and beverage processing, brewing and distilleries, starch and sugar production, paper mills, and chemical manufacturing.

A: Center Enamel fuses inorganic glass frit to high-strength steel at 820°C to 930°C, creating an ultra-smooth, chemically inert glass surface that is completely immune to volatile fatty acids (VFAs) and hydrogen sulfide (H₂S) generated during anaerobic digestion.

A: Yes. The biological digestion process converts organic pollutants into biogas composed primarily of 60%–70% methane. Center Enamel equips reactors with gas-tight roof structures and separators to capture this high-value fuel for on-site boilers or CHP engines.

A: Because structural panels are prefabricated under strict factory conditions, on-site assembly via mechanical bolting is completed in a fraction of the time required for traditional cast-in-place concrete basins, significantly reducing project lead times.
