Aluminum Dome Roofs For Glass Fused to steel Tanks

Aluminum Dome Roofs For Glass Fused to steel Tanks
Aluminum Dome Roofs For Glass Fused to steel Tanks

Large Image :  Aluminum Dome Roofs For Glass Fused to steel Tanks

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Tank Body Color: Dark Green / Can Be Customized Corrosion Integrity: Excellent
Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure Chemical Resistance: Excellent
Size Of Panel: 2.4M * 1.2M Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion

Aluminum Dome Roofs For Glass Fused to steel Tanks

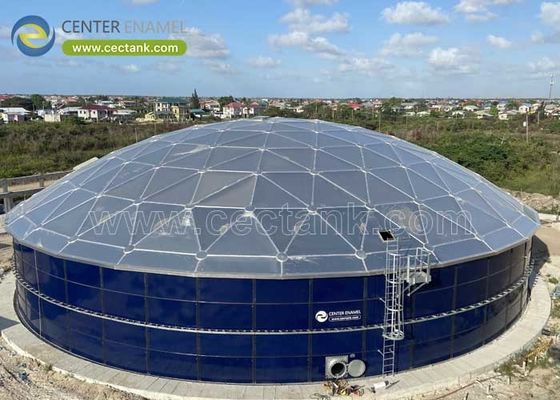

Aluminum Dome Roofs are self-supporting covers for Glass Fused to steel Tanks, Typically used in refineries and oil depots where stored products and structural tank components must be protected from the atmosphere and the environment, while minimizing harmful vapor emissions and preventing water from entering the tank. They can be used for new tanks and retrofit projects.


The Aluminum Dome Roofs is a completely triangular structure designed as a self-supporting dome roof with only its outer edge connected to the tank shell around the outer edge. The dome is made of high-strength aluminum alloy that resists corrosion as well as chemical, UV and ozone degradation.




Lightweight materials and superior framing system allow our aluminium domes to be self-supporting on the tank wall without the need for in-tank uprights, even for tanks as large as 100 meters in diameter.


Safety structure adapted to different conditions


The carefully calculated and inspected structure of the roof enables it to meet the many challenges of the environment. Geodesic geometry can withstand high snow loads, high wind loads and seismic zones. With a sealing system, the roof can be airtight at atmospheric pressure and therefore has good odour control properties.


low maintenance cost


Made of high-quality aluminum alloy, the material has natural corrosion resistance in the atmosphere. Therefore, during the service life of the fuel tank (30+ years), no maintenance is required, and the roof remains beautiful. In highly corrosive environments, the roof can undergo further surface treatments such as anodizing.


Simple and fast construction


The dome roof is designed to work with the storage tank, the effective framing and sealing system allows for quick construction, and the jacks used for the YHR tank wall mount can also be used for the roof without a secondary investment. Workers can safely stay on the ground for installation, no experience required.


Aluminum Dome Roofs FEATURES


1 Corrosion resistant.
2 Compatible with all stored products, including 100% aromatics.
3 Lightweight.
4 Self-supporting structure
5 Maintenance free.
6 Can be fitted on tanks in service.
7 Easy installation
8 High Service
9 According to API 650 Appendix G standard.
10 Can be shipped anywhere in the world.



Leading Bolted Tanks in China


Center Enamel is the leading bolted tanks and roofs manufacturer in China, which have more than 30 years of industry experience. Our main products include Glass-Fused-to-Steel tanks, stainless steel tanks, Carbon Steel tanks, aluminum geodesic dome roofs, and can provide customized design, manufacturing, and installation for global customers.All our products are in strict accordance with AWWA D103-09, API 650, OSHA, ISO 28765, NSF/ANSI 61, NFPA and other international standards. Until 2022, Center Enamel storage tanks and roofs have been exported to more than 90 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, Brazil, and South Africa etc.
