Bolted Steel Water Liquid Storage Tanks With Excellent Corrosion Resistance
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160901001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20160901001 |
| Capacity: | 20 M3 To 18,000 M3 | Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External |
| Foundation: | Concrete Or Glass Fused Steel | Steel Grade: | ART 310 |
| Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Chemical Resistance: | Excellent |
| High Light: | Bolted Steel Liquid Storage Tanks,Corrosion Resistance Liquid Storage Tanks,18000m3 Liquid Storage Tanks |
||
Product Description

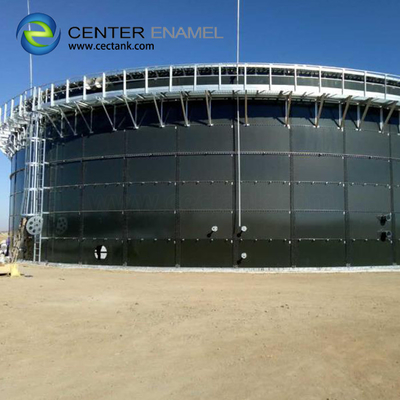

Bolted Steel Water & Liquid Storage Tanks with Excellent Corrosion Resistance
In liquid storage tanks industry, Center Enamel is the leading manufacturer and provides glass fused to steel tanks for customers all over the world. Our liquid storage tanks use the premium coating technology in storage tanks industry, the glass fused to steel technology. After firing at 820°C-930°C , the steel plate and enamel firts fused together and form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass
Our bolted Liquid Storage Tanks are the leader of liquid storage solutions, which is widely used as Water Storage Tanks for Potable Distribution Line, Bio Gas Plant, Waste Water Treat Plant (WWTP) etc. Glass lined liquid storage tanks combine the strength and flexibility of steel and the corrosion resistance of glass., Glass lined liquid tanks can resist corrosion of Waste Water of PH 1 - 14.
Bolted Steel Water & Liquid Storage Tanks Specifications
| Coating color | dark blue, dark green, white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet, around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Advantages of the bolted Steel Water & Liquid Storage Tanks
1. Short construction period
2. Superior corrosion resistance, service life is more than 30 yeas
3. Low project cost
4. Tank volume can be easily expanded
5. Beautiful appearance, color can be customized
6. Not subject to weather conditions
7. No need big installation equipment
8. Easily expand, dismantle, move
China Bolted Steel Water & Liquid Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
