Durable and easy to repair GFS Potable Water Storage Tanks

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI
Model Number: W20160831001
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 30 days after deposit received
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI Model Number W20160831001
Foundation: Concrete Or Glass Fused Steel Tank Body: Glass Fused To Steel
Service Life: ≥30 Years Holiday Test: >1500v
Tank Material: Glass Fused To Steel Corrosion Integrity: Excellent

Product Description

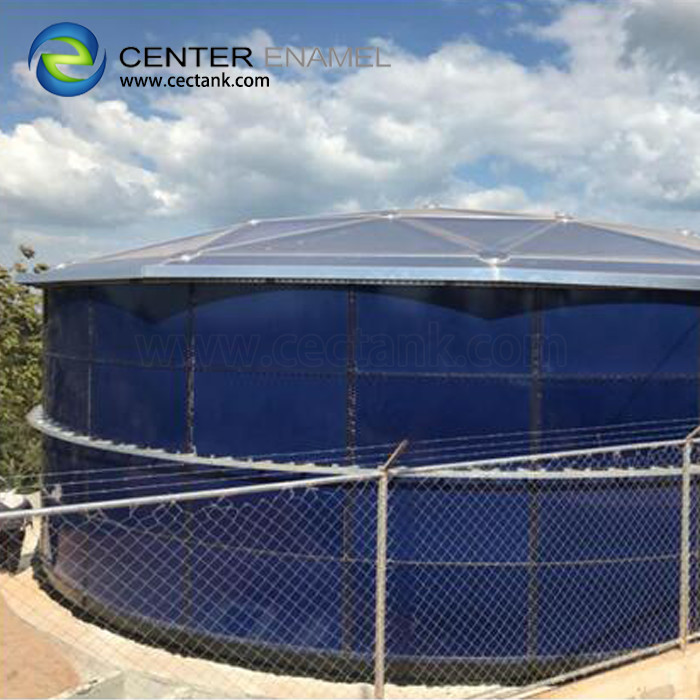

Durable and easy to repair GFS Potable Water Storage Tanks



Our drinking water tanks comply with the NSF61 drinking water standard and drinking water safe storage regulations. From 20m³ to 25,000 m³, our drinking water tanks are made of enameled steel plates, a tough and durable material that ensures that the tank you buy is suitable for the purpose and made of the highest quality materials.



Center Enamel provide Glass Lined Steel Potable Water Storage Tanks. Glass Lined Steel Potable Water Storage Tanks are made from individual sections including steel plate, valves, doors or manhole covers and roofs. All the individual sections are manufactured and finished offsite, greatly reducing the time and labor involved in the field. Unlike conventional concrete or welded storage solutions, which require extensive fabrication and finishing processes onsite, bolted tanks offer quick installation, lower shipping costs, and can be assembled in nearly any type of weather, eliminating many weather-related delays.



Glass Lined Steel Potable Water Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds



Glass Lined Steel Potable Water Storage Tanks Manufacturer



Center Enamel is not only the first Glass Lined Steel Potable Water Storage Tanks manufacturer and supplier in China, but also the most experienced Glass Lined Steel Potable Water Storage Tanks manufacturer in all of Asia. Center Enamel Glass Lined Steel tanks engineering & design, product testing, and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API, and NFPA, etc. international standards. CEC bolted steel tanks are wildly used in many industrial, commercial, residential, municipal, and rural applications. Until 2021, Center Enamel bolted steel tanks have been exported to more than 80 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.





Glass Lined Steel Potable Water Storage Tanks Project References



Durable and easy to repair GFS Potable Water Storage Tanks 0
