Bolted Steel Drinking Water Storage Tanks Standard Coating For PH11
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
| Delivery Time: | 10-30 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W |
| Corrosion Integrity: | Excellent | Feature: | Eco-friendly, Durability |
| Steel Grade: | ART 310 | Steel Plates Thickness: | 3mm To 12mm , Depends On The Tank Structure |
| Tank Material: | Glass Fused To Steel | Foundation: | Concrete Or Glass Fused Steel |
| High Light: | Bolted Steel Drinking Water Storage Tanks,PH11 Drinking Water Storage Tanks,Standard Coating Industrial Water Tanks |
||
Product Description

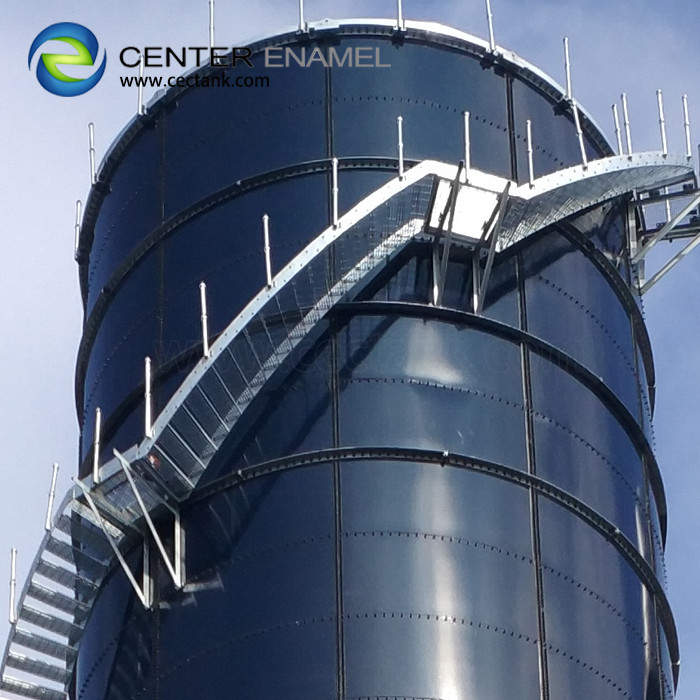

Bolted Steel drinking water storage tanks Manufacturer
Center Enamel provides drinking water storage tanks for the storage of safe drinking water, rainwater collection and collection, long-term storage of water, fire fighting and protection, and irrigation of farmland.
Our glass fused to steel tanks are FDA approved and are safe for human consumption. Whether your tank is used for drinking water storage, rainwater collection, ground water storage or emergency water supply system storage, our plastic tank can meet your needs.
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance | excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds |
The glass lined drinking water tank is modular in structure and can be designed with different diameters/heights according to different engineering requirements. This enables us to meet the various requirements of plant owners and contractors for tank size. The minimum tank capacity we can provide is 20m³,The maximum capacity of a single tank is up to 25,000 m³.
Center Enamel's drinking water tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our drinking water tank engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life.
Advantage of bolted steel drinking water tanks
---- Short construction period,low project cost;
---- Superior corrosion resistance, service life is more than 30 years;
---- Convenient installation, easy construction, good quality;
---- Beautiful appearance, color can be customized;
---- Not subject to weather conditions;
---- No need big installation equipment;
---- Easily expand, dismantle, move.
