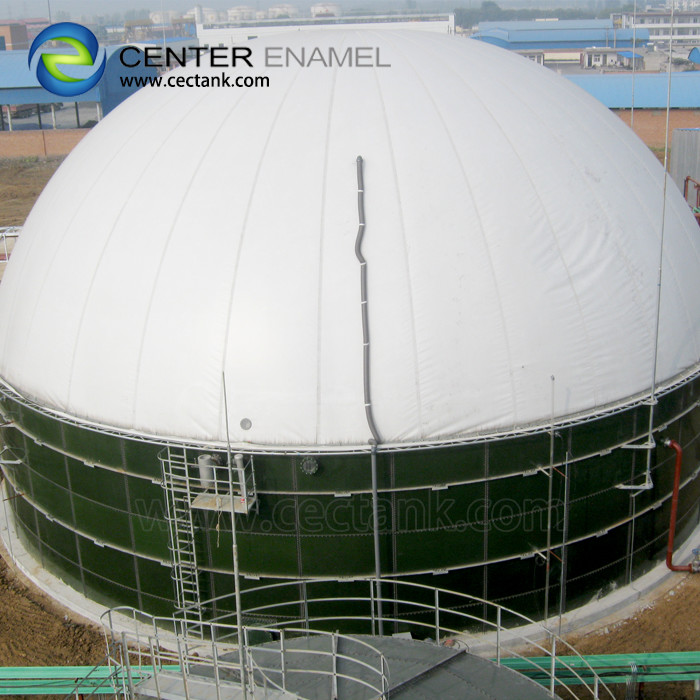

Two Coating Glass Fused Steel Tanks For Bioenergy Projects

Two Coating Glass Fused Steel Tanks For Bioenergy Projects
Two Coating Glass Fused Steel Tanks For Bioenergy Projects

Large Image :  Two Coating Glass Fused Steel Tanks For Bioenergy Projects

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Corrosion Resistance: Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Tank Body Color: Dark Green / Can Be Customized
Steel Grade: ART 310 Roof Available: Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof
Corrosion Integrity: Excellent Foundation: Concrete Or Glass Fused Steel
High Light:

Two Coating Glass Fused Steel Tanks

,

Bioenergy Glass Fused Steel Tanks

,

Gas Impermeable Glass Fused Steel Tanks

The world’s leading storage tanks solution provider for Bioenergy Projects

When you need the most advanced storage tanks solution for bioenergy projects, please contact Center Enamel. Center Enamel is the world’s leading storage tanks solution provider for Bioenergy projects. Center Enamel has been designing, manufacturing and installing biogas storage tanks and biomass storage tanks and roofs for more than 30 years.

Biogas Tanks Specifications



Coating colordark blue, dark green , white, and customized
A standard steel plate sizeeffective size 2400mm x 1200 m
Steel plates thickness3mm - 12mm , depends on the diameter & height
Coating thickness0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proofstandard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion3,450N/cm
Elasticsame as steel sheet , around 500KN/mm
Hardness6.0 Mohs
Service life>30 years
Spark test>1500 V
Permeabilitygas and liquid impermeable
Easy yo cleansmooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds




Center Enamel’s bioenergy storage solution is a complete storage tank, roof and biogas storage system. We provide global customers with customized biogas tank solutions to meet customer needs. This includes design and engineering, construction, customer service and support. Center Enamel works closely with BioEnergy customers to build a first-class, ultra-low-maintenance digestion tank storage structure to provide service life and fast return on customer investment.

Center Enamel's Glass-Fused-to-Steel tanks have been used in bio-energy systems for more than 30 years. The unique design of these bolted tanks can also effectively reduce the project construction period and save project construction costs.

Applications include:

Biogas digester, hot liquid, water, wastewater, etc.

Ethanol-fermentation tanks, beer wells, yeast, distiller, syrup, ethanol terminal, water, wastewater and others

Biodiesel-vegetable oil, animal oil, glycerin, grease, biodiesel, water, wastewater, and others

Center Enamel is not only the first manufacturer in China which produces Glass-Fused-to-Steel tanks, but also the most experienced professional bolted tanks manufacturer in Asia. The engineering & design, product testing and quality system of Center Enamel Glass-Fused-to-Steel tanks is in strict accordance with AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA and other international standards. Center Enamel Glass-Fused-to-Steel tanks are wildly used in drinking / potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture and other applications. Until 2021, Center Enamel bolted tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, Brazil and South Africa ect. Our superior tank quality and prompt service gain us worldwide recognition.

biogas tanks  Project References
