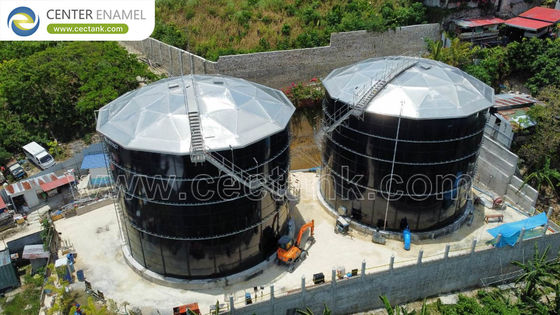

Aluminum Geodesic Dome Roof Installation: Efficient, Safe, and Cost-Effective Solutions for Storage Tanks

In the management of industrial bulk storage—whether containing municipal water, wastewater, fire suppression reserves, or petroleum and chemical products—the roof structure is critical to protecting stored media from environmental contamination, minimizing evaporation losses, and preventing structural collapse. Traditional fixed steel roofs and poured-in-place concrete covers are prone to heavy corrosion, require frequent internal structural columns, and demand complex, labor-intensive field welding during construction.

Addressing these engineering limitations, Aluminum Geodesic Dome Roof Installation has become the gold standard for modern storage tank protection. Engineered as a fully self-supporting, clear-span structure fabricated from high-strength marine-grade aluminum, geodesic domes combine unmatched structural integrity, effortless modular assembly, and absolute corrosion resistance. As a global leader in advanced containment solutions, Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) provides precision-engineered aluminum geodesic dome covers designed for seamless integration with diverse industrial storage tanks.

Aluminum geodesic domes are geometrically optimized structures built from triangulated frame members and interlocking panels, delivering exceptional mechanical performance:

1. Completely Self-Supporting Clear-Span Design: The geodesic geometry distributes loads evenly across the perimeter wall, eliminating the need for interior support columns. This prevents internal interference with mixing equipment, baffles, or liquid level floats.

2. Superior Corrosion Immunity: Fabricated from high-strength aluminum alloys (such as 6005-T5), the dome forms a natural, protective oxide layer that requires zero exterior painting and provides permanent resistance to atmospheric weathering, UV radiation, and aggressive vapor phases.

3. Effective Emission and Contamination Control: Acting as a tight seal, the dome prevents rainwater infiltration, blocks airborne debris, and significantly reduces VOC (volatile organic compound) vapor emissions in chemical or petroleum storage applications.

Unlike traditional steel roofs that require extensive scaffolding, continuous field welding, and heavy-duty cranes, aluminum geodesic dome installation is characterized by high safety and modular efficiency:

• Prefabricated Modular Components: All structural nodes, struts, and panels are precision-cut and pre-drilled in a controlled factory setting under ISO 9001 standards, ensuring exact alignment during on-site erection.

• Ground-Level or Top-Ring Assembly: Domes can be assembled safely at ground level and lifted into place using specialized jacking equipment, or built progressively on the tank's top ring using lightweight scaffolding. This drastically reduces working-at-height hazards and minimizes weather-related construction delays.

• Lightweight Structural Load: Because aluminum is substantially lighter than steel or concrete, the dead load exerted on the underlying tank walls and foundation is minimized, reducing overall civil engineering costs.

Engineering Assurance: High-performance aluminum geodesic dome covers comply strictly with internationally recognized design codes and engineering standards, including API 650, AWWA D103-09, and ISO 9001, ensuring complete structural safety and regulatory approval for worldwide projects.
