Internal Floating Roof for Diesel Storage Tanks: Reduces Loss and Prevents Contamination, Especially in Hot Climates Where Diesel Can Vaporize

Bulk storage of diesel fuel, heating oil, and middle distillate fractions is a critical operational requirement across petroleum refineries, fuel marketing terminals, power generation plants, and industrial logistics hubs. While diesel fuel possesses a lower volatility than crude oil, gasoline, or aviation naphtha, modern environmental regulations, strict fuel quality standards, and safety mandates increasingly demand advanced vapor management systems. Storing diesel in conventional fixed-roof tanks leaves a large vapor space (ullage) above the liquid surface, which is prone to breathing losses, temperature-induced expansion, and moisture accumulation.

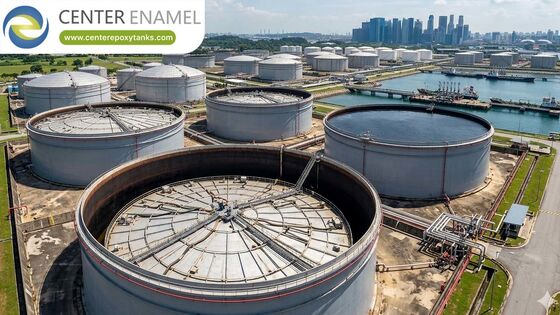

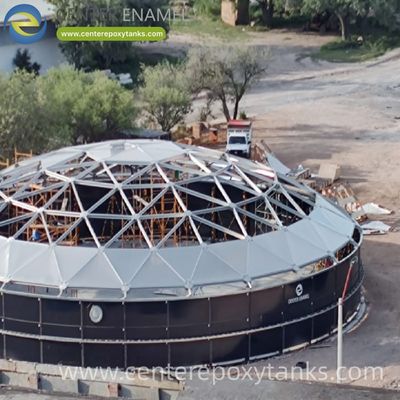

To mitigate these operational hurdles, industry standards recommend the integration of an Internal Floating Roof (IFR) housed beneath a permanent fixed cone or geodesic dome roof. Designed in strict accordance with API 650 Annex H specifications, internal floating roofs rest directly on the liquid diesel surface, moving vertically with changing inventory levels to eliminate the vapor space entirely.

Implementing an internal floating roof within a diesel storage tank fulfills several key engineering and economic goals:

1. Elimination of Headspace Evaporation: By resting directly on the liquid surface, the floating membrane removes the vapor pocket where volatile hydrocarbon fractions can accumulate and vent into the atmosphere during thermal cycles.

2. Prevention of Moisture Condensation & Microbial Growth: Diesel fuel is highly susceptible to water contamination caused by condensation on the interior walls of fixed-roof tanks. An IFR blocks moist air from contacting the fuel surface, drastically reducing free water accumulation that fuels microbial proliferation ("diesel bug").

3. Enhanced Environmental & Regulatory Compliance: Minimizing volatile organic compound (VOC) emissions and hydrocarbon odors ensures strict adherence to local and international air quality regulations.

4. Improved Fire Safety: Removing the flammable vapor-air mixture above the liquid surface significantly lowers the risk of lightning-induced ignition or accidental static discharge inside the tank ullage.

Modern internal floating roofs are engineered using lightweight, corrosion-resistant materials and robust structural components to ensure decades of reliable service:

• Pontoon and Deck Configurations: Typically constructed from high-grade aluminum alloys (such as ASTM B209) or structural carbon steel, IFRs utilize pan, pontoon, or full-contact designs. Full-contact aluminum honeycomb or skin-and-pontoon panels provide exceptional buoyancy and prevent liquid pooling on the deck.

• Advanced Rim Seal Systems: A flexible mechanical shoe seal or liquid-mounted foam/tube seal closes the annular gap between the outer perimeter of the floating roof and the internal tank shell, preventing vapor bypass while allowing smooth vertical travel.

• Anti-Rotation and Leg Support Assemblies: Adjustable support legs maintain a precise clearance above the tank bottom during maintenance or empty-tank conditions, while anti-rotation cables or fixed guide poles prevent structural twisting during aggressive liquid filling cycles.

Engineering Assurance: Internal floating roofs engineered for petroleum and diesel storage must comply strictly with API 650 Annex H, API 653 inspection guidelines, and NFPA 30 flammability codes, ensuring complete structural integrity, electrical grounding continuity, and long-term hydrodynamic stability.

A: Although diesel has a lower vapor pressure than gasoline, large industrial storage tanks experience significant thermal breathing cycles daily. An internal floating roof eliminates the vapor space, preventing hydrocarbon emissions, reducing product degradation, and—most importantly—stopping moisture condensation from forming on the tank ceiling and contaminating the diesel fuel with water.

A: Internal floating roofs are frequently fabricated from lightweight, corrosion-resistant aluminum alloys or coated carbon steel. Aluminum is preferred in many modern retrofits because its low weight increases buoyancy, simplifies site installation, and eliminates sparking risks while resisting sulfur and moisture corrosion.

A: Rim seals span the narrow annular gap between the moving floating roof edge and the fixed tank shell. Depending on the design, mechanical shoe seals or flexible liquid-mounted tube seals maintain constant contact with the tank wall, creating a tight barrier that traps vapors underneath the deck.

A: Yes. One of the primary advantages of API 650 Annex H internal floating roofs is their modular design, which allows engineers to install them into existing, in-service or refurbished fixed-roof storage tanks through standard shell manways without requiring a complete tank rebuild.
