NSF Certificated Glass Lined Steel Drinking Water Tanks
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI |
| Model Number: | W20160831001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 30 days after deposit received |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
Product Description
NSF Certificated Glass Lined Steel Drinking Water Tanks
Glass Lined Steel Drinking Water Tanks consist of Glass-Fuse-to-Steel, special sealant, self-locking bolts, and other accessories. And among them, the enamel sheet is the most important part. Enamel sheet is finished where Glass and Steel are fused together to achieve the best of both: strength and flexibility of the steel combined with the superior corrosion resistance of the glass.
Our Glass Lined Steel Drinking Water Tanks are available in the full range of colors. Tanks range from 20 m3 up to 20000m3. Center Enamel's glass-lined steel tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our glass-lined steel tanks engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone, etc., to make sure the tank structure's adequate security in long-term service life.
GLS tanks can be used as a vessel for many kinds of water storage, such as the resort wastewater storage, the town wastewater storage, potable water storage, fire protection water storage, rainwater storage etc.
Glass Lined Steel Drinking Water Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Glass Lined Steel Drinking Water Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

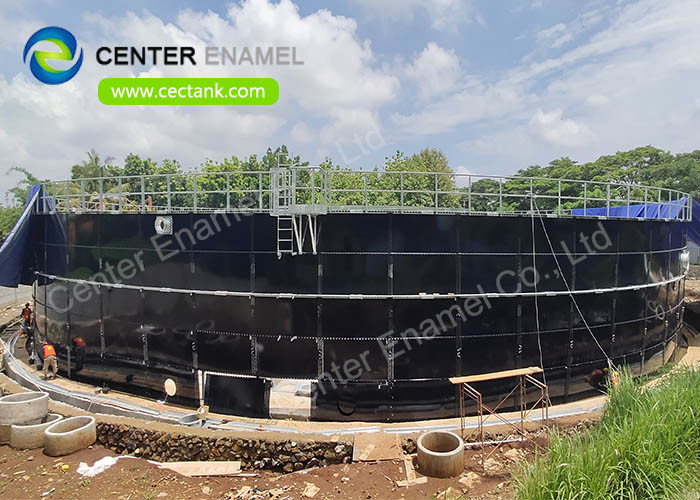

Glass Lined Steel Drinking Water Tanks Project References
