Center Enamel Botled Steel Industrial Effluent Storage Tanks
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20161227001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
| Place of Origin | China | Brand Name | CEC TANKS |
|---|---|---|---|
| Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20161227001 |
| Adhesion: | 3,450N/cm | Service Life: | ≥30 Years |
| Holiday Test: | >1500v | Elastic: | Same As Steel Sheet ,around 500KN /mm |
| Capacity: | 20 M3 To 18,000 M3 | Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External |
| High Light: | Industrial Effluent Storage Tanks,Botled Steel Industrial Effluent Storage Tanks,18000m3 Industrial Water Tanks |
||
Product Description

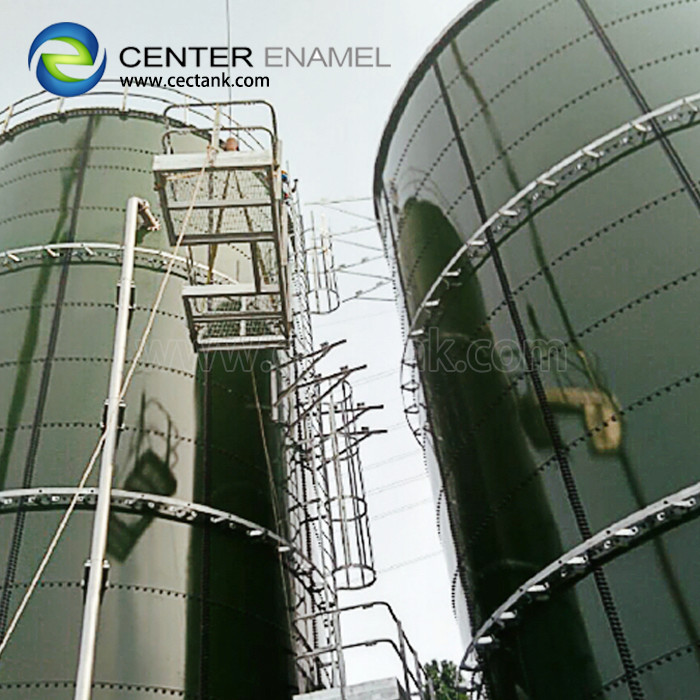

Center Enamel Bolted Steel Industrial Effluent Storage Tanks
The wastewater produced by different industries may have a high degree of diversity. Industrial wastewater from industrial processes, such as dyes, surfactants, minerals and certain metals, if left untreated, will have a significant negative impact on aquatic ecosystems and biota.
This poses challenges for process designers in selecting suitable storage tank solutions. These storage tank solutions need to withstand the effects of a series of corrosive liquids, and often there are additional challenges for the storage solution itself to be located in a harsh local environment. . Center Enamel’s GFS tank solutions provide a high degree of protection for various industrial processes from food waste to tanning wastewater and leachate.
glass fused to steel tank Specification:
| Category | Specification |
| Coating Color | Dark green, or Customizing colors |
| Coating Thickness | 0.25~0.40mm, double coating |
| Acid and alkalinity proof | Standard pH: 3~11, Special pH: 1~14 |
| Adhesion | 3,450N/cm |
| Elastic | Same as steel sheet, around 500kN/mm |
| Hardness | 6.0 Mohs |
| Service life | ≥30 Years |
| Holiday test | >1500V |
| Permeability | Gas liquid impermeable |
GFS Tank Advantages :
- Short construction period, low project cost;
- Superior corrosion resistance, service life is more than 30 years;
- Convenient installation, easy construction, good quality;
- Tank volume is easily expanded;
- Beautiful appearance, color can be customized;
- Not subject to weather conditions;
- No need big installation equipment;
- Easily expand, dismantle, move;
Center Enamel is not only the first manufacturer in China which produces Glass-Fused-to-Steel tanks, but also the most experienced professional bolted tanks manufacturer in Asia. The engineering & design, product testing and quality system of Center Enamel Glass-Fused-to-Steel tanks is in strict accordance with AWWA D103-09, OSHA, ISO 28765, NSF/ANSI 61, NFPA and other international standards. Center Enamel Glass-Fused-to-Steel tanks are wildly used in drinking / potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture and other applications. Until 2021, Center Enamel bolted tanks have been exported to more than 80 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, Brazil and South Africa ect. Our superior tank quality and prompt service gain us worldwide recognition.
