Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI |
Model Number: | W20160831001 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 30 days after deposit received |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI | Model Number | W20160831001 |
Foundation: | Concrete Or Glass Fused Steel | Tank Body: | Glass Fused To Steel |
Capacity: | 20 M³ To 20,000 M³ | Tank Material: | Glass Fused To Steel |
Steel Plates Thickness: | 3mm To 12mm , Depends On The Tank Structure | Application: | Bulk Material |
Material: | Enamel Coated Steel/Glass-fused-to-steel Plates | Highlight: | Bulk Glass Fused Steel Tanks,20000m3 Glass Fused Steel Tanks,Concrete Glass Fused Steel Tanks |

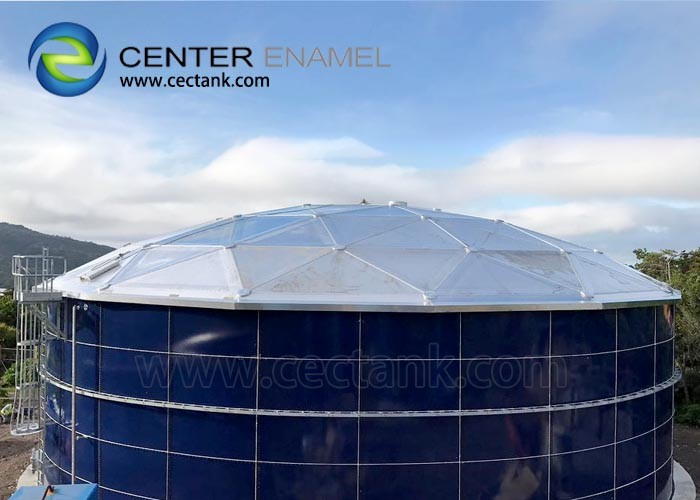

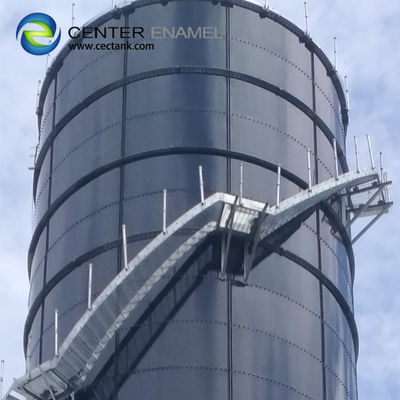

Glass Fused to Steel Tanks As Commercial Water Tanks glass lined steel tanks
Glass Fused to Steel Tanks As Commercial Water Tanks
Commercial water tanks are designed by our in-house engineers. We are an entirely China owned Engineering, Procurement, Construction and Management (EPCM) company.
Any glass fused to steel tanks can be designed to suit earthquake zones, cyclonic regions, heavy industrial or highly specialised environments, with a design life of 30 years.
Center Enamel has established itself in glass fused to steel commercial water tanks and industrial water tanks for more than 30 years and promise to supply quality GFS commercial water tanks and industrial water tanks . Our stainless steel bolted tanks and Glass-Fused-to-Steel are ideal for industrial liquid storage.
Center Enamel's glass fused to steel commercial water tanks and industrial water tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our glass fused to steel commercial water tanks and industrial water tanks engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone etc., to make sure the tank structure's adequate security in long-term service life.
Glass Fused to Steel Commercial Water Tanks Specifications
Coating color | dark blue, dark green , white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet , around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61, API and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2021, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition
