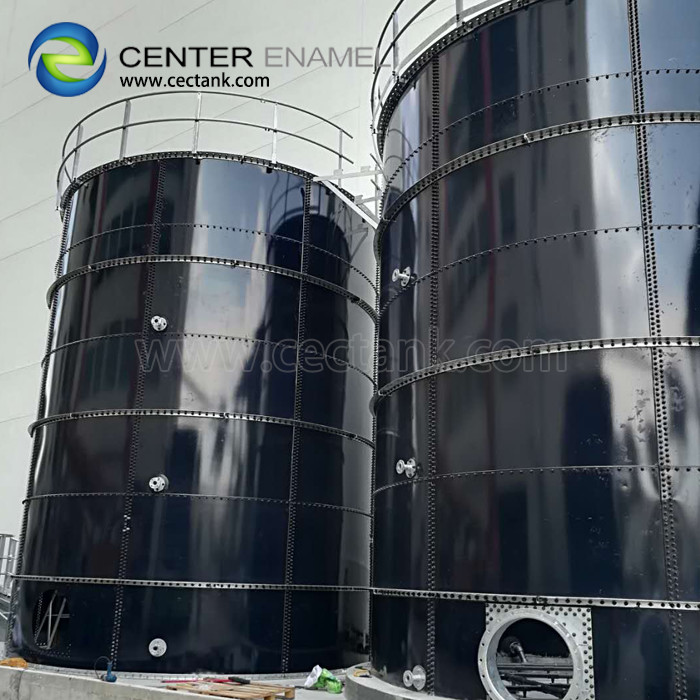

Glass Lined Steel UASB Anaerobic Reactor For Waste Water Treatment Projects

In industrial wastewater management—particularly for high-strength effluents generated by food processing, brewing, paper manufacturing, chemical processing, and pharmaceutical plants—achieving efficient biological degradation of organic pollutants is paramount. The Upflow Anaerobic Sludge Blanket (UASB) reactor stands as one of the most powerful biological treatment technologies, enabling high Chemical Oxygen Demand (COD) removal rates while simultaneously converting organic waste into renewable biogas. However, the internal operating environment of a UASB reactor is exceptionally harsh, characterized by high organic acid concentrations, fluctuating pH levels, continuous hydraulic pressure, and strict gas-tightness requirements for methane collection.

Traditional concrete basins and standard welded carbon steel tanks frequently degrade under these aggressive conditions, suffering from concrete spalling, structural gas leaks, and severe internal corrosion. To overcome these engineering hurdles, Shijiazhuang Zhengzhong Technology Co., Ltd. (Center Enamel) delivers world-class Glass Lined Steel (GFS) UASB Anaerobic Reactors, combining advanced biological process compatibility with unmatched structural durability.

Glass Lined Steel—widely recognized as Glass-Fused-to-Steel (GFS)—is created by fusing inorganic glass frit to high-strength structural steel plates at extreme temperatures between 820°C and 930°C. This high-temperature thermal fusion creates a permanent molecular bond that marries the structural tensile strength of steel with the absolute chemical inertness of glass.

1. Total Resistance to Volatile Fatty Acids (VFAs): Anaerobic digestion processes generate intermediate organic acids that rapidly corrode unlined carbon steel and etch concrete surfaces. The inert, non-porous glass surface (Mohs hardness 6.0) provides complete immunity to acid attack and chemical degradation.

2. Superior Gas-Tight Integrity for Biogas Recovery: UASB reactors capture valuable methane-rich biogas for energy cogeneration. Center Enamel’s modular bolted GFS tanks are engineered with specialized high-grade gasketing and airtight roof structures, ensuring zero gas leakage and maximum energy recovery efficiency.

3. Rapid Modular On-Site Erection: Unlike cast-in-place concrete digesters that require months of formwork, concrete pouring, and multi-week curing delays, modular GFS reactors are prefabricated in an ISO-certified factory and bolted rapidly on-site, slashing project commissioning timelines.

Center Enamel’s engineering team custom-designs each UASB reactor to optimize biological sludge retention and hydraulic distribution:

• Precision Three-Phase Separators: Integrated gas-liquid-solid separation internal components ensure efficient biomass retention while allowing purified water and biogas to separate cleanly.

• Optimized Height-to-Diameter Ratios: Engineered to maintain optimal upflow velocity, preventing sludge washout and maximizing contact time between wastewater and active anaerobic granules.

• Comprehensive Quality Assurance: Every GFS panel undergoes strict factory testing, including 100% high-voltage holiday spark testing, ensuring absolute coating continuity before dispatch.

Engineering Assurance: Center Enamel provides comprehensive structural design calculation packages and process integration support to ensure every GFS UASB anaerobic reactor complies strictly with international benchmarks, including ISO 28765 and AWWA D103-09.

A: Glass Lined Steel tanks combine high structural tensile strength with an inert, non-porous glass surface that is completely immune to volatile fatty acids (VFAs), hydrogen sulfide, and chemical corrosion generated during anaerobic digestion, ensuring a 30+ year service life.

A: Center Enamel's UASB reactors are equipped with specialized gas-tight roof structures and high-grade elastomeric sealing gaskets designed specifically to contain methane-rich biogas safely without environmental leakage or pressure loss.

A: Yes. Because of their modular bolted construction, Center Enamel's reactors can be expanded by adding additional ring tiers or dismantled and relocated if industrial plant throughput requirements change.

A: UASB anaerobic reactors are exceptionally effective for high-strength industrial wastewaters with high COD concentrations, including effluents from food and beverage processing, brewing, distilleries, paper mills, and chemical manufacturing.
