20m3 ART 310 Bolted Glass Fused Steel Tanks For Digester

20m3  ART 310 Bolted Glass Fused Steel Tanks For Digester
20m3  ART 310 Bolted Glass Fused Steel Tanks For Digester
video play

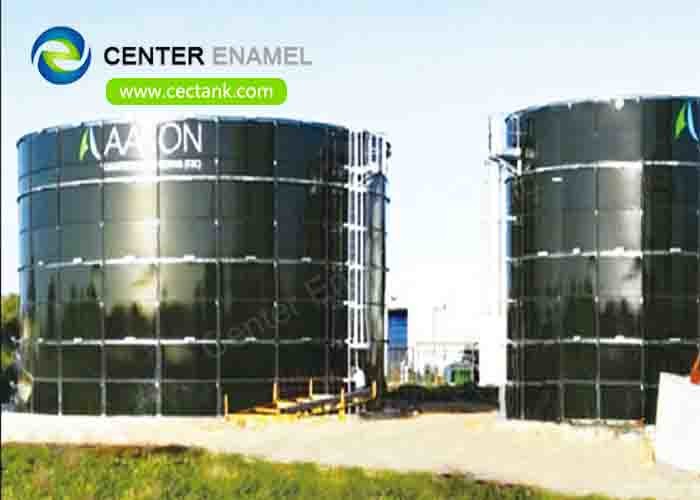

Large Image :  20m3 ART 310 Bolted Glass Fused Steel Tanks For Digester

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Steel Grade: ART 310
Size Of Panel: 2.4M * 1.2M Capactiy Available: 20 M3 To 20,000 M3
Easy To Clean: Smooth, Glossy, Inert, Anti-adhesion Easy To Cle: Smooth, Glossy, Inert, Anti-adhesion
Warranty Period: 2 Years Free Of Charge FeatureEco-friendly: Durability
Capactiy Availabl: E20 M3 To 20,000 M3 Impact: ResistanceExcellent
Applications: Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals Defect Free: Minimum Maintenance Needed
Installation: By Jacking Machine Or Steel Pole, Fast In Installation
High Light:

ART 310 Bolted Glass Fused Steel Tanks


AWWA D103 Glass Fused Steel Tanks

Center Enamel is the leading Bolted glass-fused-to-steel tanks manufacturer and Supplier in China



Center Enamel is the leading Bolted glass-fused-to-steel tanks manufacturer and Supplier in China. Glass-fused-to-steel tanks have found very wide applications in the water and wastewater treatment industry. In wastewater treatment, the sectional tank systems are used as clarifiers, shells, filters, contact tanks, thickeners, reservoirs and standpipes. In the waste treatment industry, they are used as aeration tanks, clarifier shells, trickling filters, anaerobic digesters (tanks and/or covers), gasholders, odor control units, biosolids storage and flow equalization.


Anaerobic digestion produces large amounts of biogas, including methane and carbon dioxide. The cleaned methane fraction can be stored, pressurized and used to generate on-site electricity and heat, and the excess energy can be fed into the grid or used to power equipment and vehicles. The digestion by-products of this method can be easily and safely used as commercial organic compost or fertilizer.


Anaerobic digestion is not a new technology, but in the past 15 years, anaerobic digestion has been standardized and improved through extensive use and development in European (especially Germany) and British industries.


Biogas storage tank is also called biogas holder and is a kind of Anaerobic digestion tanks which are often cone shaped and supported at the centre with a single pole. The outer layer of membrane roof works as the protection for the inner membrane . The outer membrane is more strong and coated with UV resistance coating . Outer membrane can be against static electricity, ultraviolet radiation and aging. Inner coat can be against biogas leakage.



Glass Fused to Steel Bolted Biogas Storage Tank Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,

salt fox, organic and inorganic compounds







About Center Enamel Co., Ltd


Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
