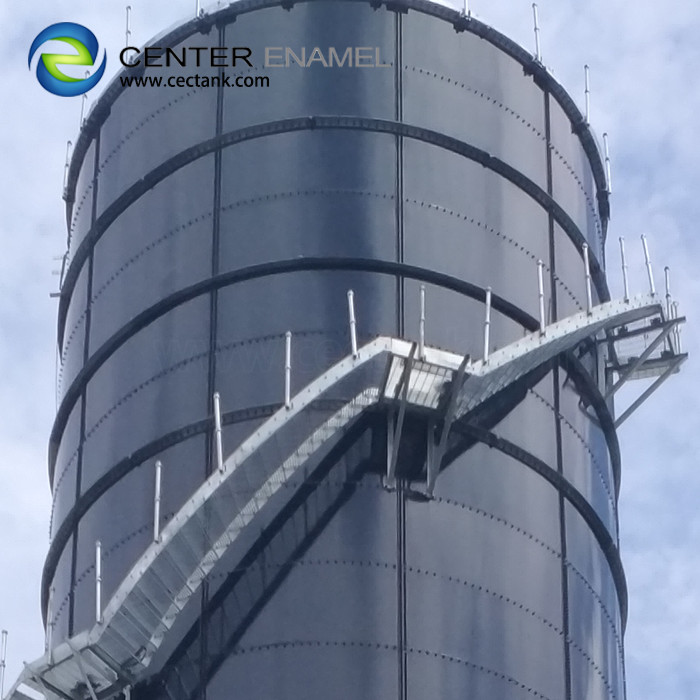

Two Layer Coating ART 310 Bolted Steel Tanks In Modular Design

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W20161021023
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 0-60 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W20161021023
Service Life: ≥30 Years Permeability: Gas / Liquid Impermeable
Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External Steel Grade: ART 310
Chemical Resistance: Excellent Corrosion Integrity: Excellent
High Light:

ART 310 Bolted Steel Tanks


BSCI Modular Bolted Steel Tanks

Product Description

the quality brand for bolted steel tanks in modular design


Today, Center Enamel is the quality brand for bolted steel tanks in modular design. The Center Enamel bolted steel tanks have been successfully implementing tank projects for agricultural, municipal and industrial applications for more than 30 years. Many years of experience in the development, design and construction of complex tank projects makes Center Enamel a competent partner in the field of modular tank construction. The areas of application are almost unlimited, from slurry stores to tanks for the chemical industry to the treatment of waste water or for production of biogas gas. The application range for Center Enamel storage solutions has almost no limitation, ranging from sprinkler tanks and tanks for the chemical industry all the way to industrial standard biogas plants.Center Enamel makes use of the most suitable and efficient tank materials for a given storage medium.

We offer storage systems made of glass-fused-to-steel and stainless steel - depending on the requirements of our customers. Center Enamel storage tanks can be supplied as an open tank or with various roof and cover solutions. Over a thousand storage projects have been successfully implemented since the company has been founded. Center Enamel bolted steel tanks are subject to strict quality control measures. Thanks to their modular design, our tanks can easily be extended, disassembled or relocated. This flexibility allows Center Enamel to offer optimal solutions that are custom-tailored to our customers’ demands. Our storage tanks follow your requirements. Due to the fact, that we only use materials of the highest quality, Center Enamel storage tanks are extremely durable and have an exceptionally long service life. They are the most economical and environmentally friendly solution. Our experienced specialists ensure the flawless execution of the design and assembly of our storage systems. We will gladly provide advice even in the early stages of your project.


In a closed tank to complete the fermentation of liquid materials, methane production process. An agitator is installed in the digester so that the fermentation materials and microorganisms are fully mixed. Feeding mode adopts constant temperature continuous feeding or semi-continuous feeding operation. The newly entered raw materials are quickly mixed with all the fermentation broth strains in the fermenter due to the stirring action, so that the fermentation substrate concentration is always relatively low.


High-quality glass fused to steel CSTR tanks are widely used in the production and storage of biogas, also known as integrated anaerobic digesters. Anaerobic digestion tanks can be used for all biogas projects such as wastewater treatment and livestock manure treatment. Anaerobic digestion is already a mature technology for obtaining green and renewable energy. This process produces biogas, which consists of methane, carbon dioxide and trace amounts of other "pollutant" gases.

Glass fused to steel biogas digester is the best choice for upflow anaerobic digestion of biogas digesters. The glass-lined steel tank is made of glass-lined steel, special sealant, and self-locking bolts. Special steel plates are sprayed with ground glaze and top glaze on both sides. After heat treatment at 850-940℃, a 0.3mm thick enamel coating will be formed on the surface of the steel plate. This is what we call glass-lined steel. This is why the glass-lined steel tank has strong acid and alkali resistance and strong wear resistance, and the service life can reach more than 30 years.


For the roof of the up-flow anaerobic digestion tanks, we can choose Glass-lined steel roof, single membrane roof, and double membrane roof. We suggest using the double membrane roof, which can store the biogas. So you don’t have to use an extra storage tank that helps you save a lot.


Glass Fused to Steel CSTR Tanks Specifications



Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds




Why will you choose Glass Fused to Steel CSTR Tanks

1. We are the first one to produce Glass-lined steel tank and hot-rolled sheet that was double side enamel


2. We have more than 20 years’ experience in manufacture Glass-lined steel tank, the most professional enamel enterprise, process more than 200 patents of enamel frit formulas.


3. Have a professional research and development team, professor senior engineer, the national famous expert with more than 50 years experience of enamel researching.


4. Serious quality control: raw material test, recipe finalizing small sample test, middle stage product test, destructive testing.


5. Comply with the international standard: have the most advanced Glass-lined Steel production technology and professional production line, already pass ISO9001-2000 quality system certification. The design of our tank complies with AWWA D103-09, OSHA, EN, Australia standards.



Glass Fused to Steel CSTR Tanks Manufacturer


Center Enamel Co., Ltd is not only the first Glass-lined steel Tanks manufacturer and supplier in China but also the most experienced Glass-lined steel tanks manufacturer in all of Asia. Center Enamel Glass-lined steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-lined steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-lined steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.



Glass Fused to Steel CSTR Tanks Project References



Two Layer Coating ART 310 Bolted Steel Tanks In Modular Design 0
