Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
Delivery Time: | 10-30 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||

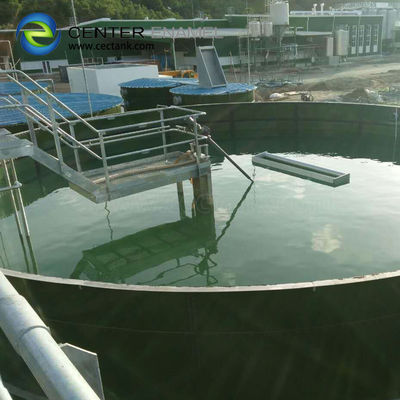

NSF 61 Approved Industrial Water Storage Tanks For fire water Storage
Site Assembled industrial water storage Tanks for the storage of firewater (sprinkler tanks): Center Enamel GLS industrial water storage tanks are to suit individual customer requirements and local conditions. High-quality designs that meet a wide range of international standards, constructed from corrosion-resistant materials. Tanks can be designed that meet earthquake and high wind conditions. Benefits of the system include ease and speed of installation - use of hydraulic jacks - Simplicity of foundations - no need for support steel work or dwarf walls.
We have uniquely positioned ourselves as a dependable supplier of Fire Water Tanks. These fire water tanks are atmospheric water storage tanks specifically designed for use in residential, commercial or institutional buildings. Offered fire water tanks are well tested on numerous parameters in order to ensure us flawlessness.
Rapid, safe & effective hydraulic jack installation: No need for scaffolding or working at height. Our cylindrical tanks are effectively built from the top down, using the latest hydraulic jack technology.
Site assembled industrial water Storage Tanks for the storage of process water & drinking water is also available from the same manufacturer.
Center Enamel industrial water tanks are available in a range of sizes and configurations, up to 25000m³. Consisting of bolted steel panels, waterproof steel cover , our industrial water storage tanks are designed to be built safely and quickly on site by a small team of trained technicians.
Our industrial water storage tanks also call Glass-Fused-to-Steel tanks, are made of special steel plate, special sealant, self-locking bolt. That is why the industrial water storage tanks can be dismantled, removed and relocated. The special steel plate is coated with two layers of enamel coating on both side. After the heat polymerization, a strong binding force is formed between the coating and the steel plate, which make the Glass-Fused-to-Steel tanks have Good chemical and physical performance. All our Glass-Fused-to-Steel tank products are manufactured to meet or exceed common government regulations and industry standards: AWWA D103-09 , OSHA, ISO/EN28765. So glass lined steel industrial water storage tanks are very suitable for wastewater treatment engineering, including mixing tanks, flocculation tanks, sedimentation tanks and others.
In addition to comprehensive manufacturing and superior service, Center Enamel delivers customized tank fabrication to suit the needs of your location. Our storage tanks designers with decades of experience in tank production turn your specifications into a specialized tank built to last. Center Enamel provides the industry's leading quality ratings, with customer testimonials and reviews to support each product.
All Center Enamel Glass-Fused-to-Steel tank’s capabilities can be expanded and relocated, which allow the factory to relocate the glass lined steel industrial water storage tanks when the factory moving to another place. Center Enamel tank’s storage capacities are made flexible by adding or removing a ring of side staves. All tanks can be shipped worldwide in containers which reduce freight charges and allow for easier handling.
glass lined steel industrial water storage tanks Specifications
Coating color | dark blue, dark green , white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet , around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
glass lined steel industrial water storage tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
glass lined steel industrial water storage tanks Project References
