PH14 Portable Glass Fused Steel Tanks With Membrane Roof

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Corrosion Resistance: Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Tank Body Color: Dark Green / Can Be Customized
Steel Grade: ART 310 Roof Available: Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof
Corrosion Integrity: Excellent Foundation: Concrete Or Glass Fused Steel
High Light:

PH14 Glass Fused Steel Tanks

,

Portable Glass Fused Steel Tanks

,

Membrane Roof Glass Fused Steel Tanks

Product Description

Never Ever Needs Painting Potable Water Storage Tanks



One of the most typical products manufactured by Center Enamel is GFS potable water tanks, which are characterised by high quality, offer a wide range of capacities – that may be adapted to the individual needs of the ordering party.



Potable storage tanks consist of Glass-Fuse-to-Steel, special sealant, self-locking bolts, and other accessories. And among them, the enamel sheet is the most important part. Enamel sheet is finished where Glass and Steel are fused together to achieve the best of both: strength and flexibility of the steel combined with the superior corrosion resistance of the glass.



Our Potable Water Storage Tanks are available in the full range of colors. Tanks range from 20 m3 up to 20000m3. Center Enamel's glass-lined steel tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, and our glass-lined steel tanks engineers make tank engineering calculation on each specific tank structure according to project local environmental conditions, such as snow load, wind speed, seismic zone, etc., to make sure the tank structure's adequate security in long-term service life.



Potable Water Storage Tanks can be used as a vessel for many kinds of water storage, such as the resort wastewater storage, the town wastewater storage, potable water storage, fire protection water storage, rainwater storage etc.



Potable Water Storage Tanks Specifications





Coating color dark blue, dark green , white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm , depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coating internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet , around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds





Potable Water Storage Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

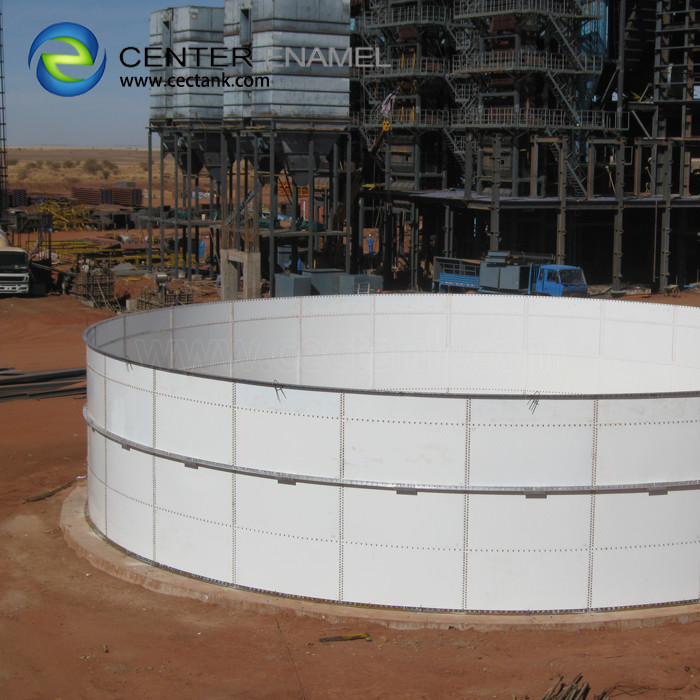

Potable Water Storage Tanks Project References





PH14 Portable Glass Fused Steel Tanks With Membrane Roof 0
