Place of Origin: | CHINA |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20180508003 |
Minimum Order Quantity: | 1 SET |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates;wooden pallets and wooden box |
Delivery Time: | 10-30 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | CHINA | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20180508003 |
Coating Color: | Dark Green, Or Customizing Colors | Coating Thickness: | 0.25~0.40mm, Double Coating |
Acid And Alkalinity Proof: | Standard Coating Suits For PH3 - PH11, Special Coating Suits For PH1 - PH14 | Adhesion: | 3,450N/cm |
Hardness: | 6.0 Mohs | Holiday Test: | >1500V |
Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | Permeability: | Gas / Liquid Impermeable |
Foundation: | Concrete Or Glass Fused Steel | Steel Grade: | ART 310 |
Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals | Highlight: | GFS Industrial Liquid Storage Tanks,6.0 Mohs Liquid Storage Tanks |

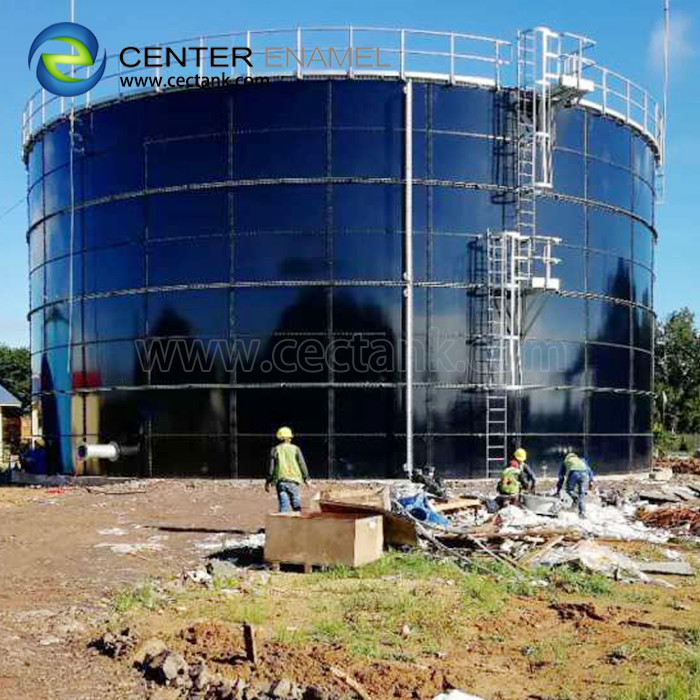

Center Enamel GFS Industrial Liquid Storage Tanks are primarily intended for commercial use
Center Enamel industrial storage units are primarily intended for commercial use. They enable washing systems, industrial-scale operations to store large quantities of water in an efficient manner. Large storage tanks can also be installed in domestic applications to enable the use of rainwater. GFS industrial liquid storage tanks can be fitted with additional pipe connections on request. Specialised accessories make it easier to use the equipment in a professional setting.
Center Enamel designs, manufacture and install GFS industrial liquid storage tanks for more than 30 years. Our storage tanks are suitable for all stages of wastewater treatment including mixing tanks, flocculation tanks, sedimentation tanks and others. After firing at 820°C-930°C high temperature, the molten glass reacts with the steel plate surface to form an inert and inorganic bond, which combines the strength and flexibility of steel and outstanding corrosion resistance of glass, so Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market, and Glass-Fused-to-Steel tanks are widely used in bio-energy, municipal sewage, landfill leachate and industrial wastewater treatment etc. Applications.
Center Enamel GFS Industrial Liquid Storage Tanks Specifications
Coating color | dark blue, dark green , white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet , around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Center Enamel GFS Industrial Liquid Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Center Enamel GFS Industrial Liquid Storage Tanks Project References
