Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden |
Delivery Time: | 10-30 days after deposit received |
Payment Terms: | L/C, T/T |
Supply Ability: | 60 sets per month |
Detail Information |
|||

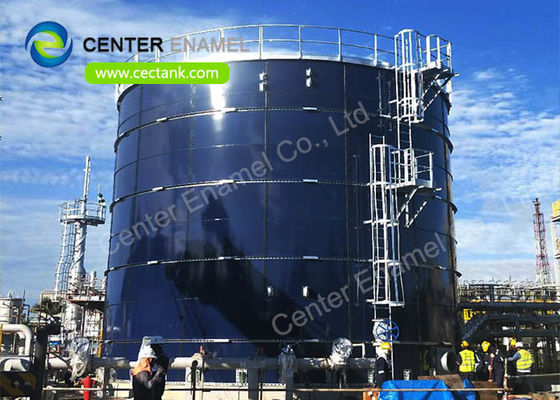

Glass Lined Steel liquid storage tanks For Commercial Fire Protection Water Storage
Zhengzhong Technology is Asia's largest supplier of Glass Lined Steel liquid storage tanks. In addition to our Glass-Fused-to-Steel tanks, we also provide stainless steel storage tanks and corresponding installation services to meet all your water tank needs. Zhengzhong Technology has 30 years of experience in the water storage industry and is a leading manufacturer of Glass-Fused-to-Steel tanks.
Glass-Fused-to-Steel(GFS), also known as glass-lined steel (GLS), is a high-quality storage tank solution that utilizes time-tested products and has significant advantages. The volume of the enamel assembly tank ranges from 20 cubic meters to 20000 cubic meters.
Genzon Technology's enamel assembly tank and its modular design and manufacturing concept have brought a series of benefits to customers, including:
long life
Low cost of capital
Low maintenance cost
Fast installation time
Global economic transportation
Flexible modification, expansion, disassembly and relocation
Best corrosion resistance
Center Enamel company is the leading manufacturer of Glass Lined Steel Fire Water Storage Tanks in China, we develop and produce it since 1989. Our Glass Lined Steel Fire Water Storage Tank design meet or exceed to AWWA D103-09,OSHA,NFPA and EN ISO28765 international standards, and our production line has passed the ISO9001:2008 quality system.
Unlike other suppliers, we produce the enamel frits by ourselves, and have more than 200 patents on enamel frit formulas. So we could take very good control on the quality and cost, which make our tank cost effective . In the meanwhile, we are not only apply it to our tank, but also supply to the world top 500 company “Midea” company.
Glass Lined Steel liquid storage tanks Specifiactions
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
About Center Enamel Co., Ltd
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2020, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 90 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
