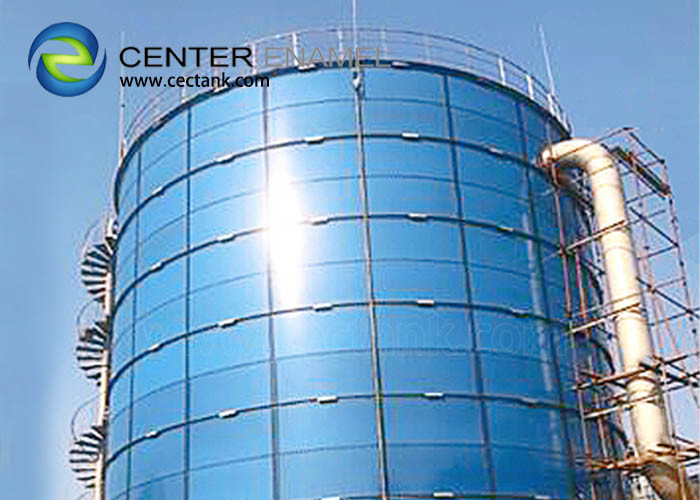

Industrial Glass Fused Steel Tanks For Fire Protection Water Storage

Product Details
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month

Detail Information

Place of Origin China Brand Name CEC TANKS
Certification ISO 9001:2008, AWWA D103 , OSHA , BSCI Model Number W
Impact Resistance: Excellent Installation: By Jacking Machine Or Steel Pole, Fast In Installation
Tank Material: Glass Fused To Steel Hardness: 6.0Mohs
Steel Grade: ART 310 High Light:

Industrial Glass Fused Steel Tanks

,

Fire Protection Glass Fused Steel Tanks

,

500KN/mm Glass Fused Steel Tanks

Product Description

Glass-Fused-To-Steel Industrial Tanks For Fire Protection Water Storage



Zhengzhong Technology is China's largest manufacturer of Glass-Fused-to-Steel tanks. Zhengzhong Technology has more than 30 years of experience in the water storage industry and is considered to be the leading manufacturer of GFS bolted storage tanks.



GFS storage tanks are considered to have advantages over other storage tank applications. Genzon Technology can provide and install storage tanks for customers. For projects with storage requirements of more than 20 cubic meters, it is recommended to use this storage tank. These storage tanks can be used in industrial applications (including mines) and can be used to store materials such as waste water, sewage, sewage, drinking water, fire fighting water, and desalinated water.



Quality assurance



Quality assurance and durability. This concept is reflected in the quality of the enamel assembly tank, which exceeds the requirements of international enamel standards. According to the structural requirements of AWWA D103-09 Structural Design Behavior Standard, the working life of Zhengzhong Technology's FRP bolt storage tank is 30 years.



Advantages of Glass-Fused-To-Steel Industrial Tanks



long life

Lower cost of capital

Low maintenance cost

Fast installation time

Economic global shipments

Optimal corrosion resistance



The on-site installation of glass fused to steel storage tanks includes a unique jacking system. Once the starter plate (bottom ring) is embedded in the concrete foundation or designed and built with glass-coated bolted steel floor, the top ring of the tank is built on the jack. Then the top of the water tank was erected, and the lifting ring and the top were jacked up. For each additional ring, then assemble the bolt pieces below the top ring together, and apply a specially made polyurethane sealant between the seams.



All construction works are completed on the ground to ensure a safe, fast and efficient construction environment. The storage tank is usually completed within one to two weeks. If the general salary of on-site labor is used, it can save a lot of cost for the owner.



GFS Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,

salt fox, organic and inorganic compounds









About Center Enamel Co., Ltd



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc.
