Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
Model Number: | W20170706011 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 10-30 days after deposit received |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Place of Origin | China | Brand Name | CEC TANKS |
---|---|---|---|
Certification | ISO 9001:2008, AWWA D103 , OSHA , BSCI | Model Number | W20170706011 |
Roof Available: | Glass Fused Steel Roof , Membrane Roof, Aluminum Roof , GRP Roof | Chemical Resistance: | Excellent |
Size Of Panel: | 2.4M * 1.2M | Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion |
Corrosion Resistance: | Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds | Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals |
Highlight: | Corrosion Resistance Glass Fused Steel Tanks,Landfill Glass Fused Steel Tanks,Leachate Glass Fused Steel Tanks |

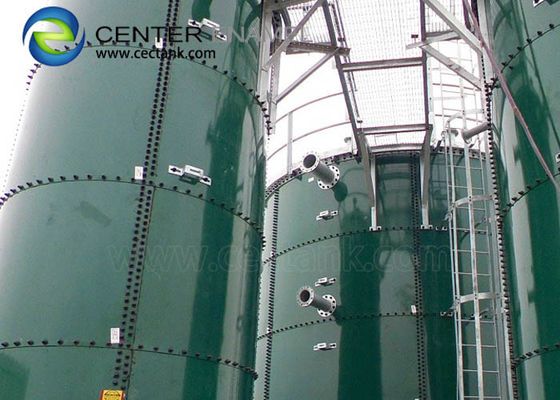

Superior Corrosion Resistance Glass Fused To Steel Tanks For Landfill Leachate Storage
When it comes to landfill leachate storage , Center Enamel recommends you choose the factory fabricated glass fused steel tank . As we all know, landfill leachate could be very corrosive. So the utmost specification of the tank has to be superior corrosion resistance, which is right one of the most outstanding characteristics of glass fused steel tanks .
Two materials - Enamel frit and raw steel are fused together after two coating and two heat treatment at 800-900℃ to achieve the best cohesion blending of the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Center Enamel’s Glass-Fused-to-Steel is able to provide many years of trouble free service in harsh environments.
Glass Fused To Steel Landfill Leachate Storage Tanks Specififcations
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Glass Fused To Steel Landfill Leachate Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Glass Fused To Steel Landfill Leachate Storage Tanks Project References
