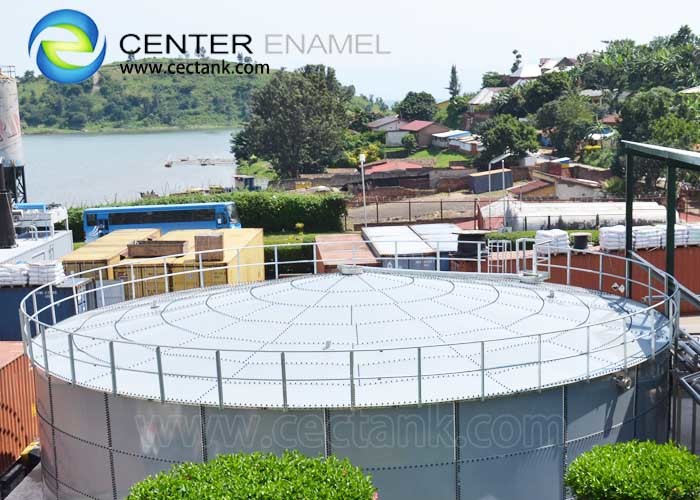

18000m3 Bolted Steel Potable Water Storage Tanks
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20160901001 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 0-60 days after deposit received |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
Product Description
Durable and requiring very low maintenance Bolted steel Potable Water Storage Tanks
There are many advantages in using bolted steel tanks for the storage of potable water, corrosive and other liquid applications. In addition to ease of assembly, they have greater lifetime value, far lower maintenance costs and little environmental impact compared with other liquid storage structures.
Our bolted steel tanks are food grade, its engineering design meets or exceed to AWWA, FDA, LFGB, ISO and most international standards to ensure safe storage of potable water. potable water stored by our potable water tank is safe for human consumption. Our glass fused to steel tanks potable water tanks range from a capacity of 20 steres up to 20,000 steres.
What is glass fused to steel ?
Glass-Fused-to-Steel (Glass-Lined-Steel) is a unique tank finish. Two materials are fused together to achieve the best properties of both – the strength and flexibility of steel combined with the corrosion resistance of glass. Applied to both interior and exterior surfaces, Glass-Fused-to-Steel is able to provide many years of trouble free service in harsh environments.
Bolted Glass Fused to steel Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Bolted Glass Fused to steel Tanks Manufacturer
Center Enamel designs, manufactures and installs potable water tanks for more tank 30 years, and the top-rated potable water tanks manufacturer in potable water and drinking water storage industry. Until 2018, Center Enamel potable water tanks have been exported to more than 45 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Bolted Glass Fused to steel Tanks Projects
