0.25mm Coating 500KN/Mm Expanded Wastewater Treatment Tank

0.25mm Coating 500KN/Mm Expanded Wastewater Treatment Tank
0.25mm Coating 500KN/Mm Expanded Wastewater Treatment Tank

Large Image :  0.25mm Coating 500KN/Mm Expanded Wastewater Treatment Tank

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Corrosion Integrity: Excellent Feature: Eco-friendly, Durability
Steel Grade: ART 310 Steel Plates Thickness: 3mm To 12mm , Depends On The Tank Structure
Tank Material: Glass Fused To Steel Foundation: Concrete Or Glass Fused Steel
High Light:

500 KN/Mm Expanded Wastewater Treatment Tank

,

0.25mm Expanded Wastewater Treatment Tank

Volume Can Be Expanded Waste Water Treatment Tank

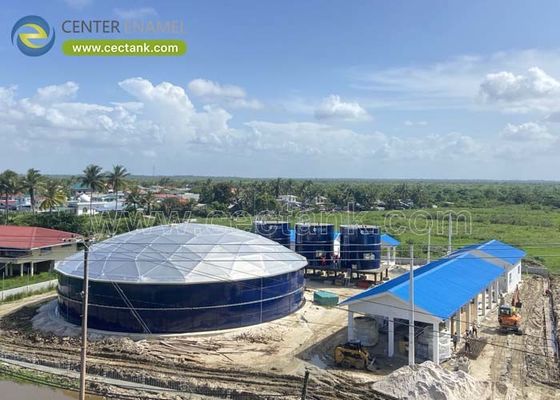

Center Enamel glass fused to steel tanks have been used for Waste Water Treatment for many years. We have supplied wastewater storage tanks for hundreds of wastewater applications ranging from flow equalization, clarification, biological treatment, and sludge storage to digestion



The production of glass fused to steel sheet



Enamel – coating is a traditional anti – corrosion technology . Used the technology , the steel is beautiful and glazed outside , but strong and anti – corrosion inside . Coating on the special titanium steel plate , the enameled bolted tank has been successfully applied in varieties of industries , agricultural sewage , urban sewage and other wastewater treatment systems and biogas projects .



Waste Water Treatment Tank Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil,
salt fox, organic and inorganic compounds









Quality Control of Waste Water Treatment Tank



* Raw materials testing in the factory:ingredient analysis, impurities test ;

* Recipe finalized small samples test : enamel fluidity test, chromatic difference analysis, enamel burning experiment , acid and alkali resistance testing, glossy, adhesion etc

* Middle stage products test :amplification experiment simulated environment;

* Destructive testing, detection , impact test, sparks test, sliced electric microscope analysis .



About Center Enamel



About Center Enamel

Center Enamel Co., Ltd is not only the first and most experienced Glass-Fused-to-Steel Tanks manufacturer in China, but also the leading storage tanks manufacturer in Asia. Center Enamel storage tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC storage tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
