Product Details:
Payment & Shipping Terms:
|
Coating Thickness: | 0.25mm~0.40mm , Two Layer Of Coating Internal And External | Steel Grade: | ART 310 |
---|---|---|---|
Size Of Panel: | 2.4M * 1.2M | Capactiy Available: | 20 M3 To 20,000 M3 |
Easy To Clean: | Smooth, Glossy, Inert, Anti-adhesion | Easy To Cle: | Smooth, Glossy, Inert, Anti-adhesion |
Warranty Period: | 2 Years Free Of Charge | FeatureEco-friendly: | Durability |
Capactiy Availabl: | E20 M3 To 20,000 M3 | Impact: | ResistanceExcellent |
Applications: | Water , Waste Water, Digester , Reactor , Grain , Sludge , Chemicals | Defect Free: | Minimum Maintenance Needed |
Installation: | By Jacking Machine Or Steel Pole, Fast In Installation | ||
High Light: | Bolted Steel Sewage Tank,glossy Bolted Steel Sewage Tank,ART 310 Wastewater Holding Tanks |

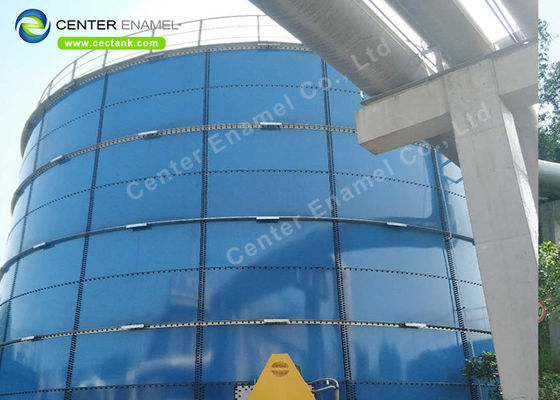

Bolted Steel Sewage Tank and Wastewater Holding Tanks for Municipal Sewage Treatment Project
We serve the municipal sewage treatment industry and offer field erected bolted steel sewage and wastewater holding tank systems built to a higher quality standard offering long life , low maintenance, and low lifetime cost. Our bolted steel sewage tanks and wastewater holding tanks are commonly called “glass lined ”, “ glass fused to steel or “ glass coated ” depending on the region where they are installed , but they all refer to the same thing.
Bolted steel wastewater tank is made by a special process , called vitreous enamel coating , which is an advanced technology for anti-corrosion purpose of steel plate . Glass lined steel wastewater tanks are coated both inside and outside with enamel . Today, glass lined steel wastewater tanks are widely used in wastewater treatment projects as aerobic and anaerobic reactors of UASB , EGSB , SBR , BAF , USR , CSTR and equalization tank , clarifier , and sludge holding tank . It has proven its superior resistance to thermal and chemical when facing water with extremes in pH and temperature .
Bolted Steel Sewage Tank and Wastewater Holding Tank Specifications
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance | excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds |
Why choose Center Enamel Bolted Steel Sewage Tank and Wastewater Holding Tanks:
- The first and most professional Glass-Fused-to-Steel tanks manufacturer in Asia
- Innovative enameling protection technology on sheet’s four edges and bolt holes
- Successful projects reference in more than 60 countries in the world
- Products conform to or exceed AWWA D103-09, OSHA and ISO/EN 28765
- Certified by ISO9001, NSF61, BSCI etc. international qualification system
- Cutting edge enameling technology to lead industry innovation
- Quick installation and lowest maintenance cost
Bolted Steel Sewage Tank and Wastewater Holding Tank Manufacturer - Center Enamel
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in potable/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Contact Person: Miss.Melody wong
Tel: +8615013092031
