Place of Origin: | China |
Brand Name: | CEC TANKS |
Certification: | ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI |
Model Number: | W20160831001 |
Minimum Order Quantity: | 1set |
Price: | $5000~$20000 one set |
Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
Delivery Time: | 30 days after deposit received |
Supply Ability: | 60 sets per month |
Detail Information |
|||
Low Maintenance Costs Industrial Liquid Tanks For Wastewater Treatment Project
Shijiazhuang Zhengzhong Technology Co., Ltd has more than 30 years' experience in industrial liquid storage tanks design, manufacture, and installation and is the China leader of large liquid tanks industry. All our industrial liquid storage tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011, which extend our tanks range to meet all your storage needs.
Wastewaster treatment , the first process is doing pretreatment , the purpose is to remove the large solid from the wastewater . The next step is primary treatment , which need clarification and sedimentation tank to finish this process , the purpose is to remove the suspended solid and biochemical particulated from the wastewater . Our glass-lined steel bolted industrial liquid tanks can be used for wastewater anaerobic digestion in ph 3-11 conditions.
Industrial Liquid Tanks Specifications
Coating color | dark blue, dark green, white, and customized |
A standard steel plate size | effective size 2400mm x 1200 m |
Steel plates thickness | 3mm - 12mm, depends on the diameter & height |
Coating thickness | 0.25mm - 0.4mm, two coatings internal and external |
Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
Adhesion | 3,450N/cm |
Elastic | same as steel sheet, around 500KN/mm |
Hardness | 6.0 Mohs |
Service life | >30 years |
Spark test | >1500 V |
Permeability | gas and liquid impermeable |
Easy yo clean | smooth, glossy, inert, anti-adhesion |
Corrosion resistance |
excellent! Suitable for wastewater saltwater, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Industrial Liquid Tanks Advantages :
- Short construction period, low project cost ;
- Superior corrosion resistance, service life is more than 30 yeas
- Convenient installation, easy construction, good quality
- Tank volume can be easily expanded
- Beautiful appearance, color can be customized
- Not subject to weather conditions
- No need big installation equipment
- Easily expand, dismantle, move
Industrial Liquid Tanks Manufacturer
Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 65 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

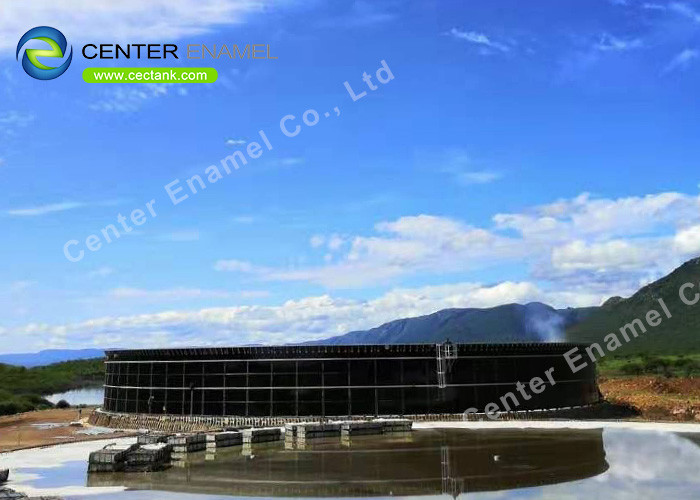

Industrial Liquid Tanks Project References
