Glass Fused Steel Liquid Storage Tanks For Wastewater Treatment Project

Glass Fused Steel Liquid Storage Tanks For Wastewater Treatment Project
Glass Fused Steel Liquid Storage Tanks For Wastewater Treatment Project

Large Image :  Glass Fused Steel Liquid Storage Tanks For Wastewater Treatment Project

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, NSF - 61 , AWWA D103 , OSHA , BSCI
Model Number: W20160831001
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden box
Delivery Time: 30 days after deposit received
Supply Ability: 60 sets per month
Detailed Product Description
Foundation: Concrete Or Glass Fused Steel Tank Body: Glass Fused To Steel
Service Life: ≥30 Years Holiday Test: >1500v
Tank Material: Glass Fused To Steel Corrosion Integrity: Excellent
High Light:

Fused Steel Liquid Storage Tanks

,

1500v Liquid Storage Tanks

,

12mm Waste Water Storage Tanks

Liquid Storage Tanks With ISO 9001:2008 Standards For Wastewater Treatment Project



When constructing liquid storage tanks, the selection of the best material is an important quality factor. Center Enamel is the global leading bolted steel liquid storage tanks manufacturer in China for Chemical, Liquid, and Drinking Water Storage Tanks. Center Enamel designs, manufactures, and installs glass fused to steel tanks, bolted steel tanks, stainless steel bolted tanks. Our bolted steel liquid storage tanks range the size from 20m3 to 25,000m3. It is the integration tank which sealed by high corrosion bolts and flexible sealant. Common uses for our bolted steel liquid storage tanks include Wastewater tanks, Sewage sludge tanks, Process water tanks, Storage tanks, Firefighting water tanks, Mixing and compensation tanks. All of our liquid storage tanks are corrosion-resistant and easy to install with no seams, welds or joints to leak or rust.



We offer the lowest costs for installation and shipping, as our products entail fast bolt-together assembly, ease of installation even in extremely contained spaces, and minimal site preparation. Moreover, they can be rapidly relocated and reconfigured and can quickly be constructed using common tools.



When comes to installation, we will send out an installation guide to be on-site to train the local workers on how to assemble the tanks. In contrast, Field-welded steel tanks are welded by trained and licensed welders, which cost a lot of money and time that might otherwise be better spent elsewhere. This results in an installation process that is quick and easy, far faster than the installation of concrete or welded tanks, and it is not subject to the weather delays that often stall the installation of competing designs.



Liquid Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds





Liquid Storage Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing, and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA, etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture, etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including the USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India, and South Africa, etc. The superior product quality and prompt service gain us worldwide recognition.

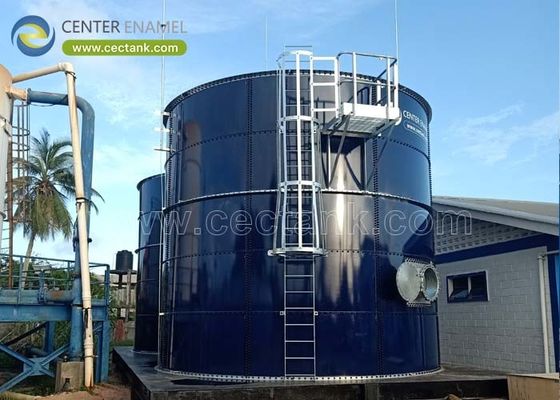

Liquid Storage Tanks Project References



Glass Fused Steel Liquid Storage Tanks For Wastewater Treatment Project 0
