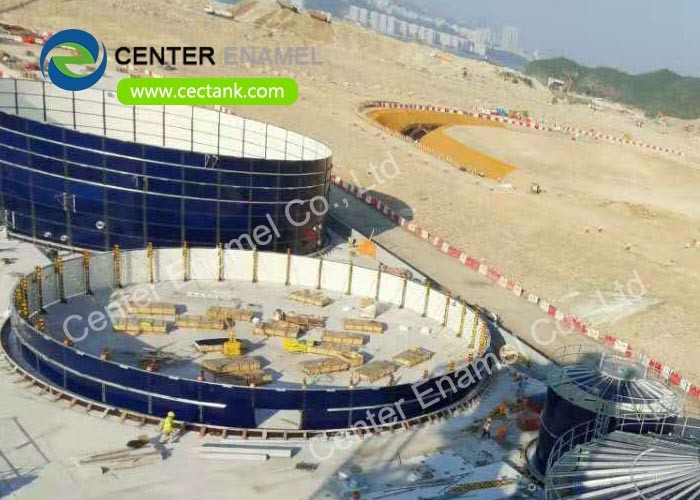

Glass Fused Steel Gas Impermeable Liquid Storage Tanks
| Place of Origin: | China |
| Brand Name: | CEC TANKS |
| Certification: | ISO 9001:2008, AWWA D103 , OSHA , BSCI |
| Model Number: | W20171218003 |
| Minimum Order Quantity: | 1set |
| Price: | $5000~$20000 one set |
| Packaging Details: | PE poly-foam between each two steel plates ; wooden pallet and wooden box |
| Delivery Time: | 10-30 days after deposit received |
| Supply Ability: | 60 sets per month |
|
Detail Information |
|||
Product Description
Center Enamel Provides The Best Solution For Your Liquid Storage Needs
Glass fused to steel tanks have been used in liquid storage for many years. These glass fused to steel liquid storage tanks are fabricated with Glass-Fused-to-Steel bolted together with custom rubber gaskets separating each panel, making them water-tight. These glass lined steel tanks are commonly referred to Glass-Fused-to-Steel Tanks and are ideally suited for storage increments over 200,000 gallons.
Center Enamel's glass fused to steel liquid storage tanks engineering design meet or exceed AWWA D103-09 and EN/ISO28765:2011.This AWWA D103-09 approved storage tank is the ideal solution for numerous commercial and industrial applications including Fire Protection, Potable Water Storage, Irrigation, Wastewater, and much more. Each tank is custom engineered for its specific purpose and installed by factory-trained and experienced craftsmen.
Glass Fused to Steel Liquid Storage Tanks Specifications
| Coating color | dark blue, dark green , white, and customized |
| A standard steel plate size | effective size 2400mm x 1200 m |
| Steel plates thickness | 3mm - 12mm , depends on the diameter & height |
| Coating thickness | 0.25mm - 0.4mm, two coating internal and external |
| Acid and alkalinity proof | standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14 |
| Adhesion | 3,450N/cm |
| Elastic | same as steel sheet , around 500KN/mm |
| Hardness | 6.0 Mohs |
| Service life | >30 years |
| Spark test | >1500 V |
| Permeability | gas and liquid impermeable |
| Easy yo clean | smooth, glossy, inert, anti-adhesion |
| Corrosion resistance |
excellent ! Suitable for waste water salt water, sea water, high sulfur crude oil, salt fox, organic and inorganic compounds
|
Glass Fused to Steel Liquid Storage Tanks Manufacturer
Center Enamel Co., Ltd is not only the first glass fused to steel liquid storage tanks manufacturer and supplier in China, but also the most experienced glass fused to steel liquid storage tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.
Glass Fused to Steel Liquid Storage Tanks Specifications
