Glass Fused To Steel Wastewater Treatment Storage Tanks For Water And Wastewater Industries

Glass Fused To Steel Wastewater Treatment Storage Tanks For Water And Wastewater Industries
Glass Fused To Steel Wastewater Treatment Storage Tanks For Water And Wastewater Industries

Large Image :  Glass Fused To Steel Wastewater Treatment Storage Tanks For Water And Wastewater Industries

Product Details:
Place of Origin: China
Brand Name: CEC TANKS
Certification: ISO 9001:2008, AWWA D103 , OSHA , BSCI
Model Number: W
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $5000~$20000 one set
Packaging Details: PE poly-foam between each two steel plates ; wooden pallet and wooden
Delivery Time: 10-30 days after deposit received
Payment Terms: L/C, T/T
Supply Ability: 60 sets per month
Detailed Product Description
Corrosion Resistance: Suitable For Waste Water Salt Water, Sea Water, High Sulfur Crude Oil, Salt Fox, Organic And Inorganic Compounds Elastic: Same As Steel Sheet ,around 500KN /mm
Tank Body Color: Dark Green / Can Be Customized Coating Thickness: 0.25mm~0.40mm , Two Layer Of Coating Internal And External
Foundation: Concrete Or Glass Fused Steel Steel Grade: ART 310
High Light:

AWWA wastewater Treatment Storage Tanks

,

Concrete Waste Water Storage Tanks

Superior Quality Glass Fused to Steel Wastewater Treatment Storage Tanks For water and wastewater industries



Glass Fused to Steel wastewater treatment storage tanks is ideal for safe and economical water and wastewater storage tanks. Center Enamel provides wastewater treatment storage tanks for municipal water storage and water/wastewater treatment plants, as well as tanks for coal ash remediation systems and wastewater treatment plants for power generation facilities, chemical production, industrial wastewater treatment, and other applications.



Glass Fused to Steel Wastewater Treatment Storage Tanks



Glass Fused to Steel wastewater treatment storage tanks are fusing two materials at 820°C-930°C high temperature to achieve the best properties of both the strength and flexibility of steel and the corrosion of resistance of glass. Glass-Fused-to-Steel tanks can provide many advantages over standard epoxy or welded painted storage tanks. Glass-Fused-to-Steel technology is the premium coating technology in the storage tanks market.



Glass Fused to Steel Wastewater Treatment Storage Tanks Specifications



Coating color dark blue, dark green, white, and customized
A standard steel plate size effective size 2400mm x 1200 m
Steel plates thickness 3mm - 12mm, depends on the diameter & height
Coating thickness 0.25mm - 0.4mm, two coatings internal and external
Acid and alkalinity proof standard coating suits for PH3 - PH11, special coating suits for PH1 - PH14
Adhesion 3,450N/cm
Elastic same as steel sheet, around 500KN/mm
Hardness 6.0 Mohs
Service life >30 years
Spark test >1500 V
Permeability gas and liquid impermeable
Easy yo clean smooth, glossy, inert, anti-adhesion
Corrosion resistance

excellent! Suitable for wastewater salt water, seawater, high sulfur crude oil, salt fox, organic and inorganic compounds





Glass Fused to Steel Tanks Wastewater Treatment Storage Tanks Applications

Aeration Basin

Anaerobic Digestion

Equalization

Aerobic Digestion

SBR’s

Dewatered Sludge Silos

ATAD Tanks

Sludge

Sedimentation

Flocculation Tanks

MBBR

Biologic Treatment

Raw Waste Storage

Effluent Storage

pH Balancing Tanks

Clarifiers

Holding Tanks

Chlorination Tanks

Aluminum Geodesic Domes and Covers for Existing Tanks





Glass Fused to Steel Wastewater Treatment Storage Tanks Manufacturer



Center Enamel Co., Ltd is not only the first Glass-Fused-to-Steel Tanks manufacturer and supplier in China, but also the most experienced Glass-Fused-to-Steel tanks manufacturer in all of Asia. Center Enamel Glass-Fused-to-Steel tanks engineering & design, product testing and quality system are in strict accordance with AWWA D103-09, OSHA, ISO/EN 28765, NSF61 and NFPA etc. international standards. CEC Glass-Fused-to-Steel tanks are widely used in drinking/potable water, industrial effluents, municipal sewage, bio-energy, landfill leachate, agriculture etc. applications. Until 2018, Center Enamel Glass-Fused-to-Steel tanks have been exported to more than 60 countries including USA, Australia, Canada, Malaysia, Indonesia, Russia, UAE, Panama, India and South Africa etc. The superior product quality and prompt service gain us worldwide recognition.

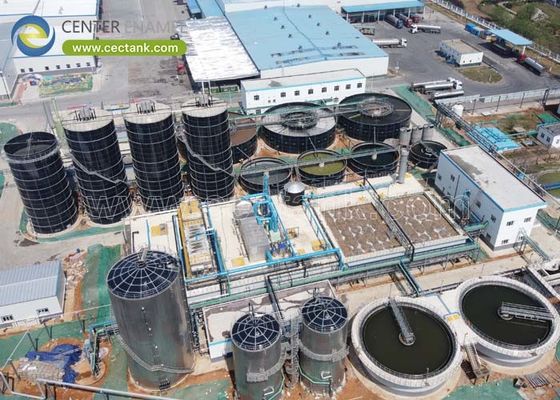

Glass Fused to Steel Wastewater Treatment Storage Tanks Project References



Glass Fused To Steel Wastewater Treatment Storage Tanks For Water And Wastewater Industries 0
